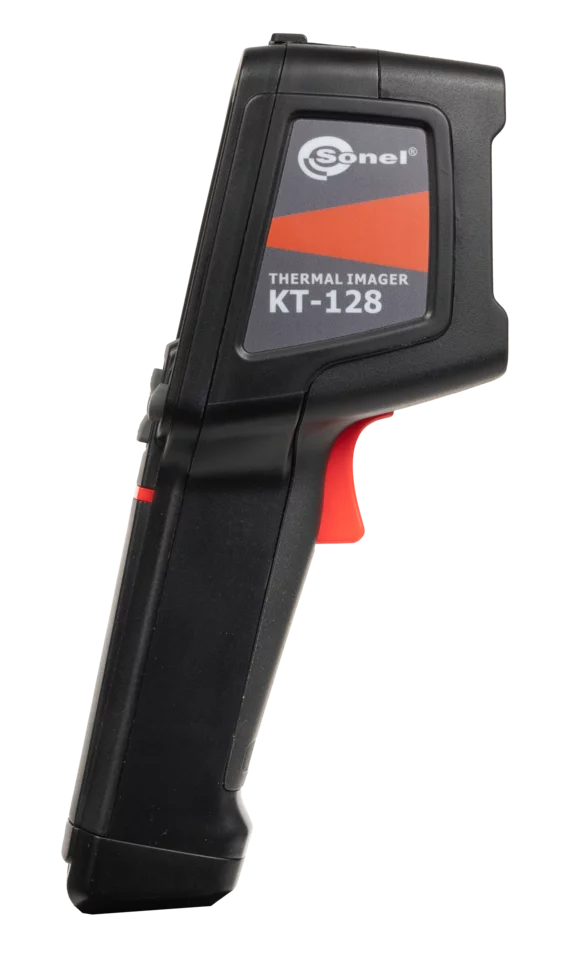

KT-128
Thermal Imager

Name: Thermal Imager
Brand: Sonel
SKU: S68-WMGBKT128
Price: 910 SGD
Availability: InStock

Index cat. WMGBKT128

ean 5907624002319

Ingress protection: IP 54

Data transmission: USB

Display: graphic, color, backlit

910,00 $

In stock

Delivery: 24h

Inquiry for an offer

S-1

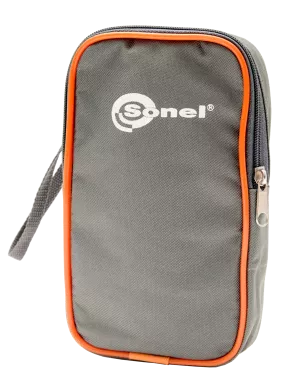

Carrying case

23,73 $

Available

Step into thermal imaging

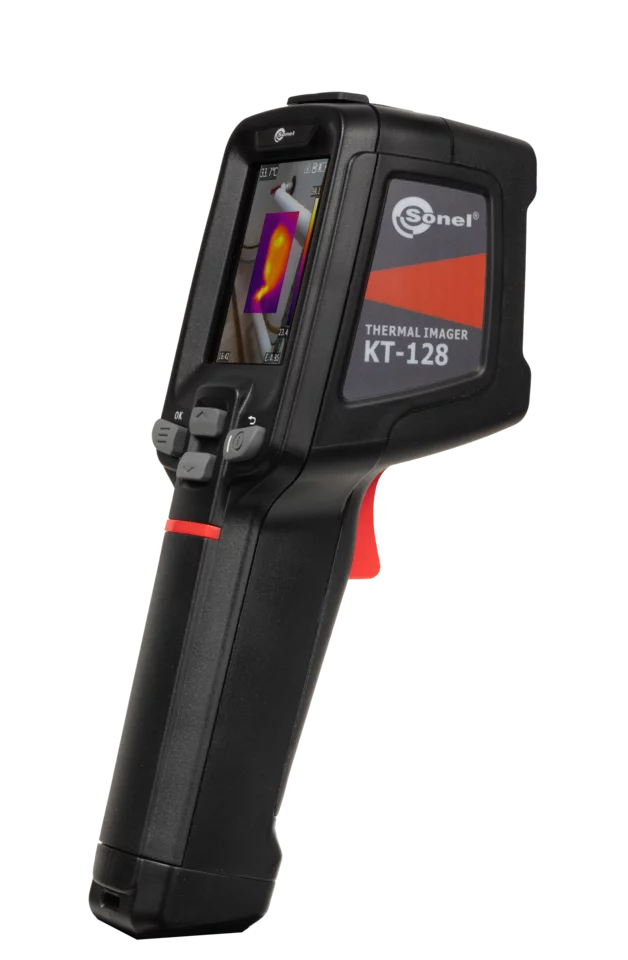

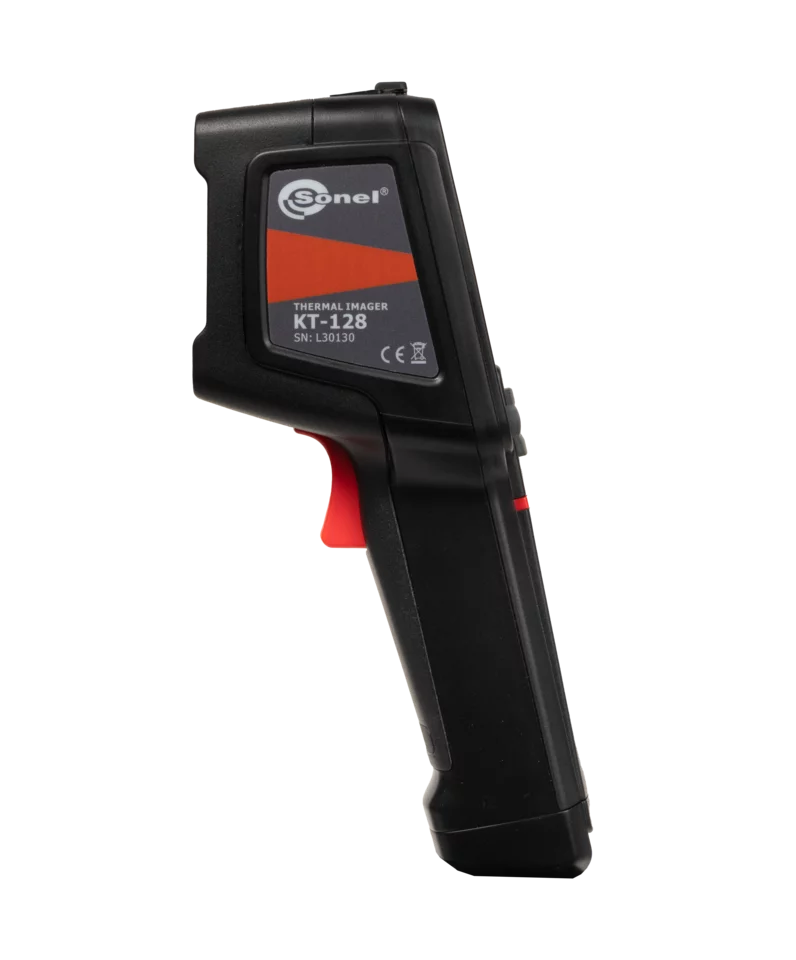

The Sonel KT-128 thermal imaging camera is a special camera. Cost-effective, practical and handy, it is a powerful tool for everyday work. The camera is used for basic diagnostics. It is equipped with a matrix having a resolution of 120 x 90 pixels, supported by visual camera, laser pointer and additional features to fully meet the needs of users.

Application

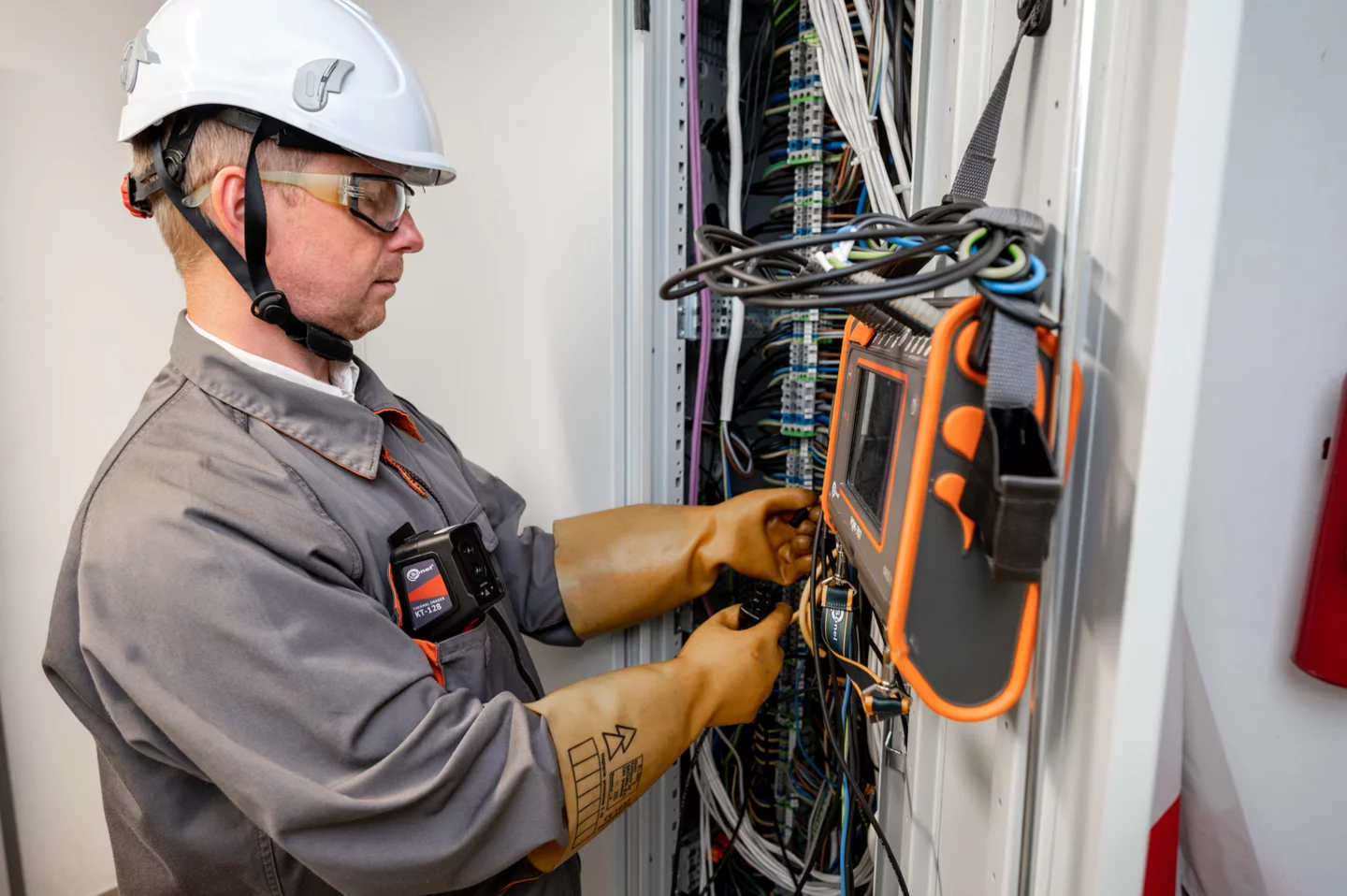

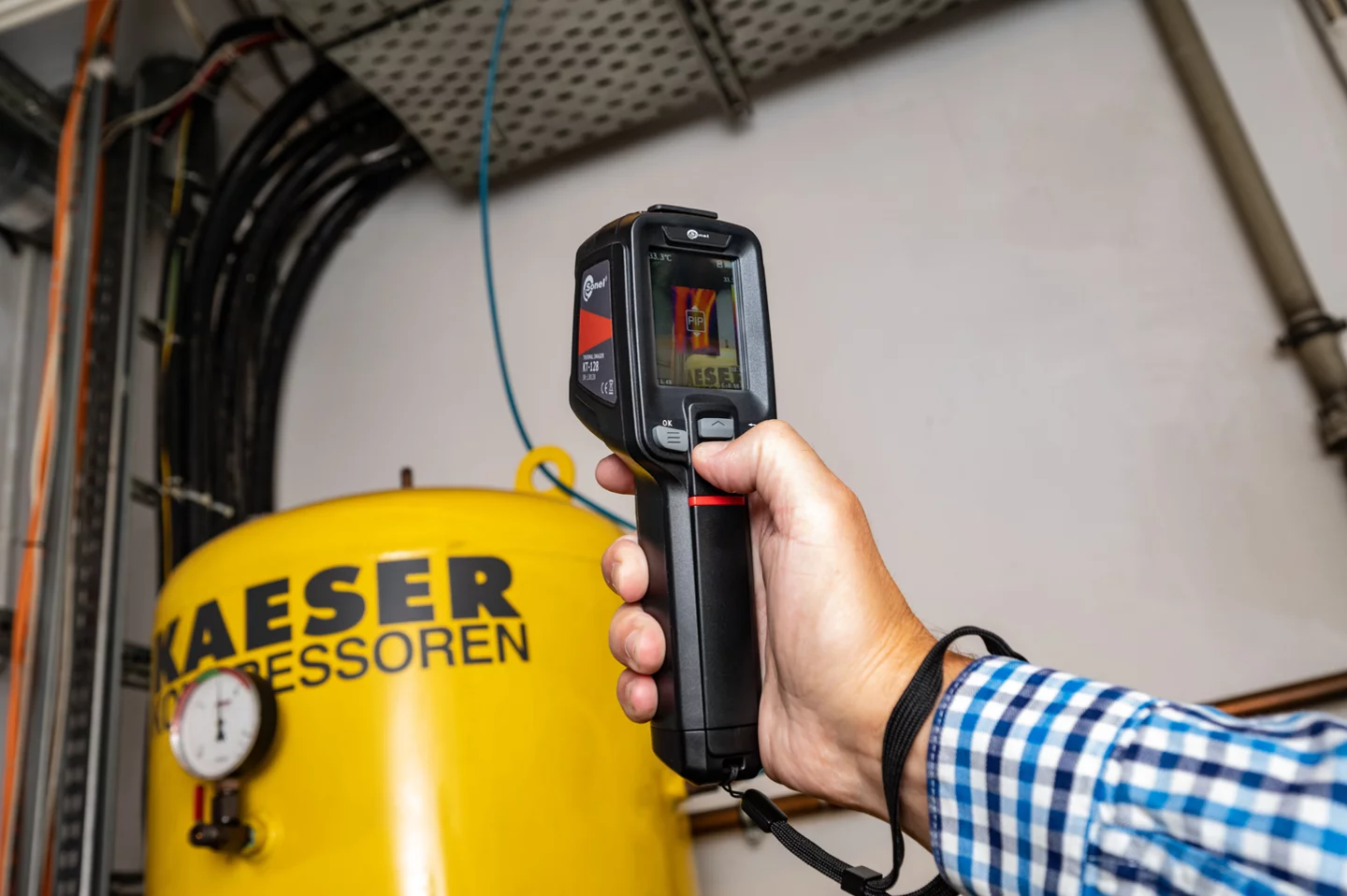

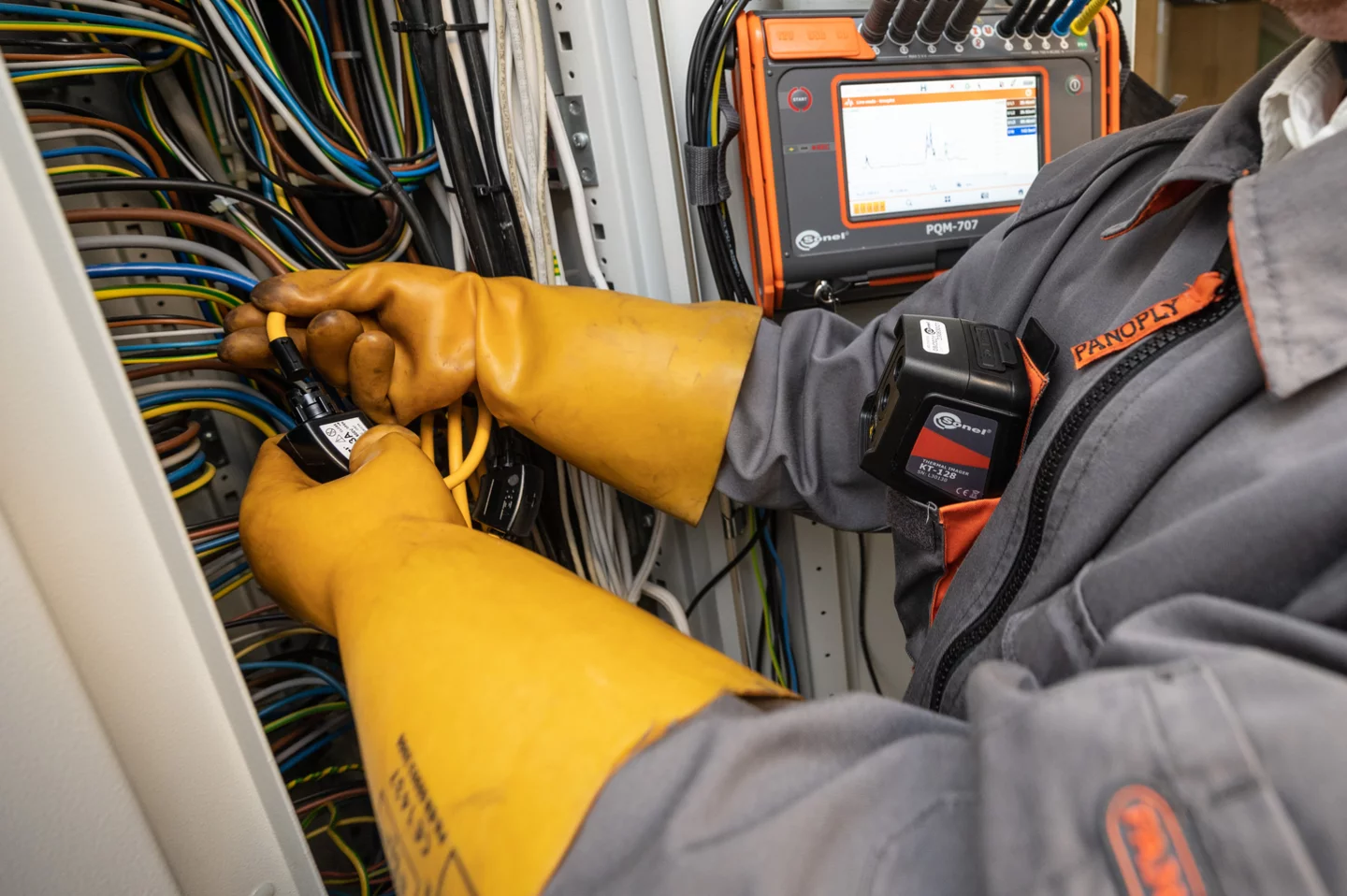

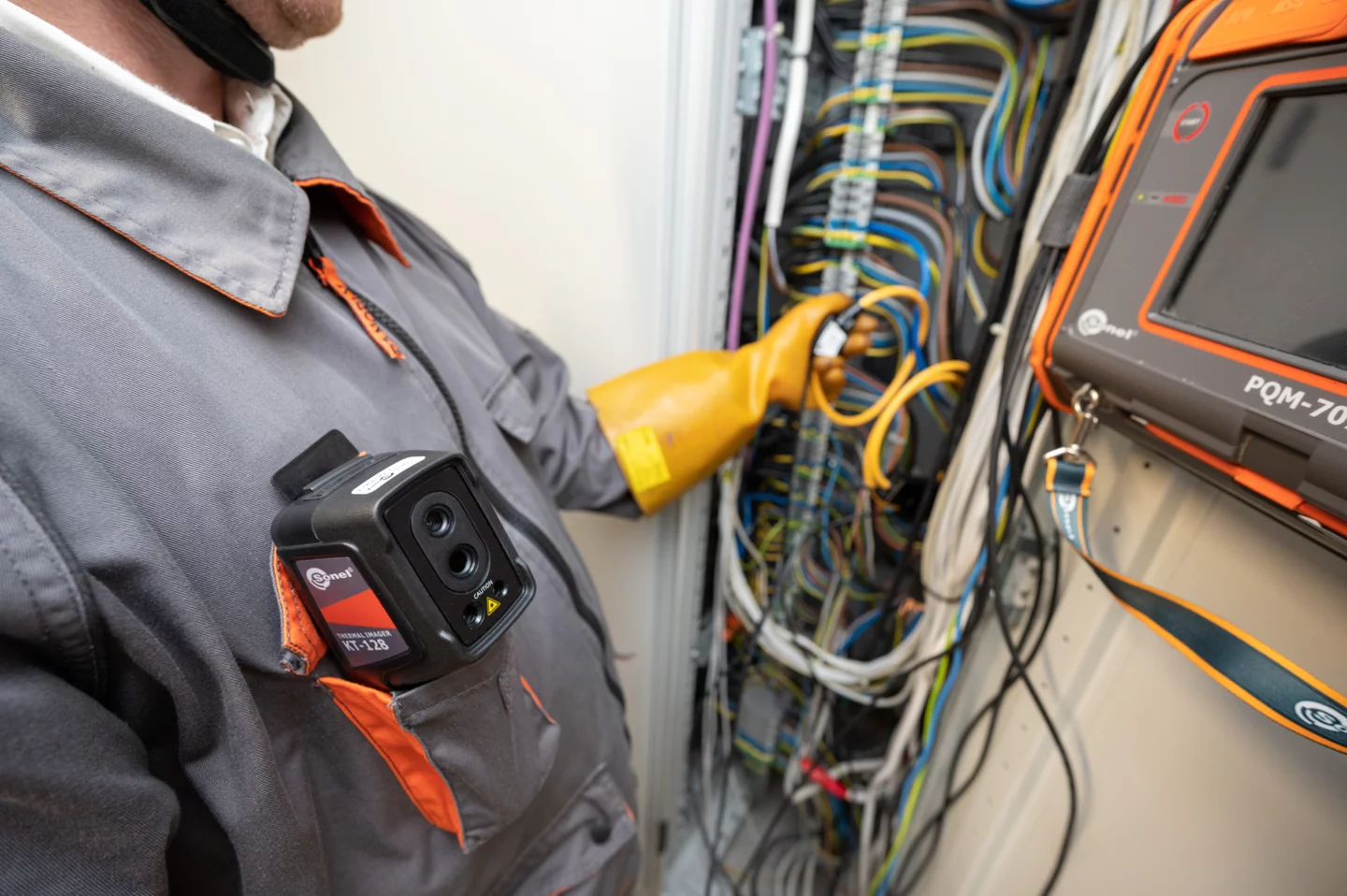

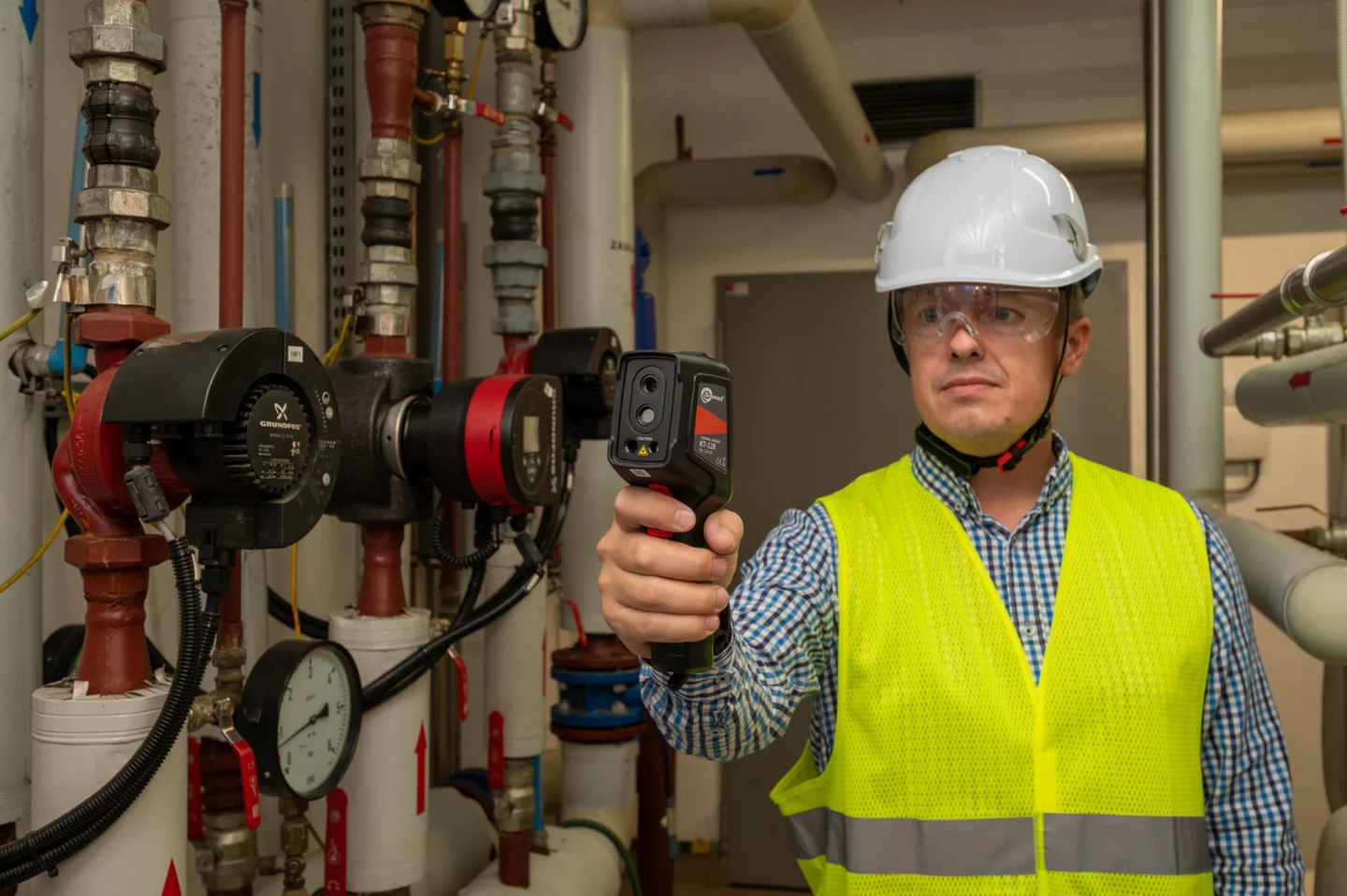

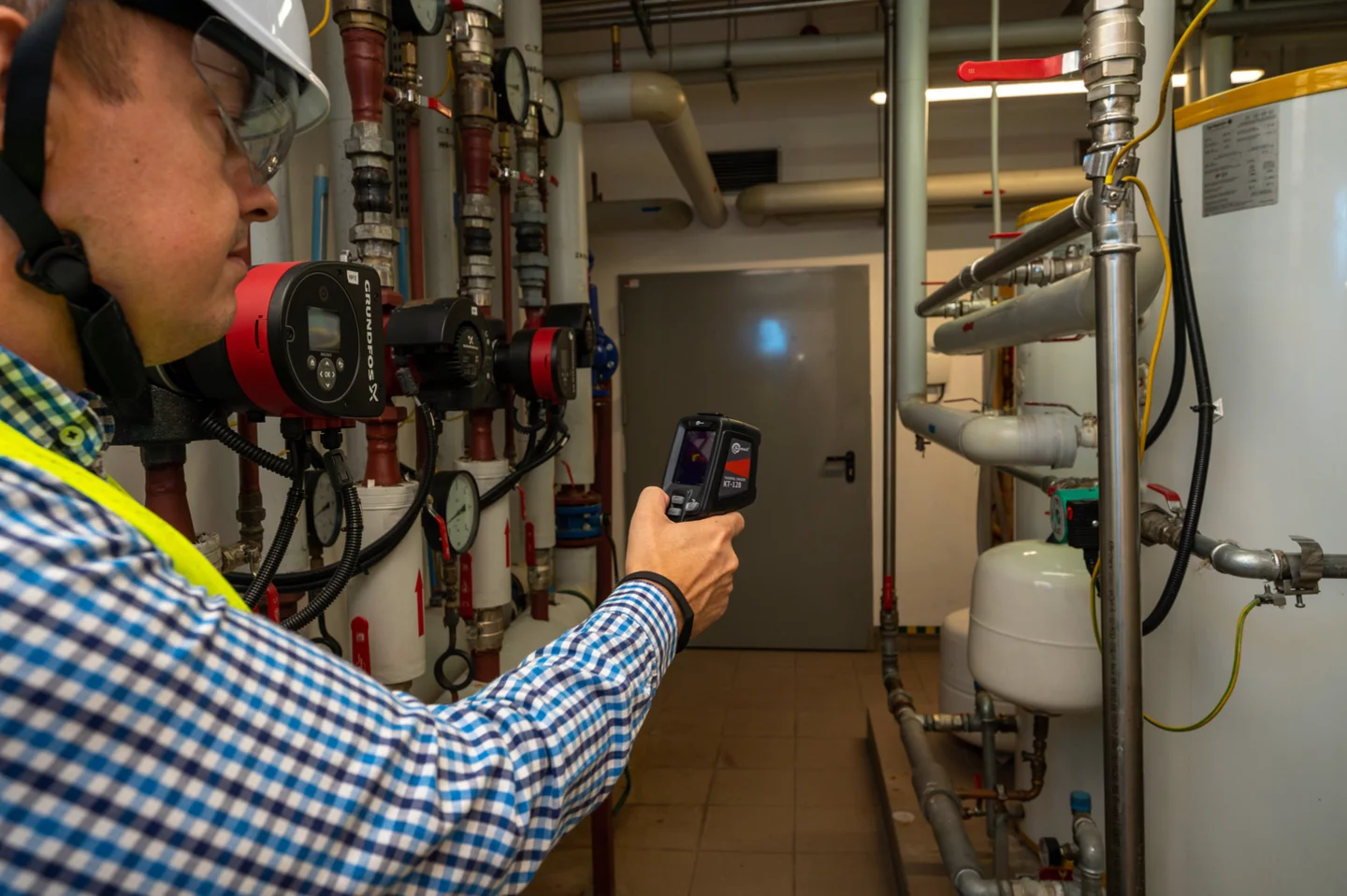

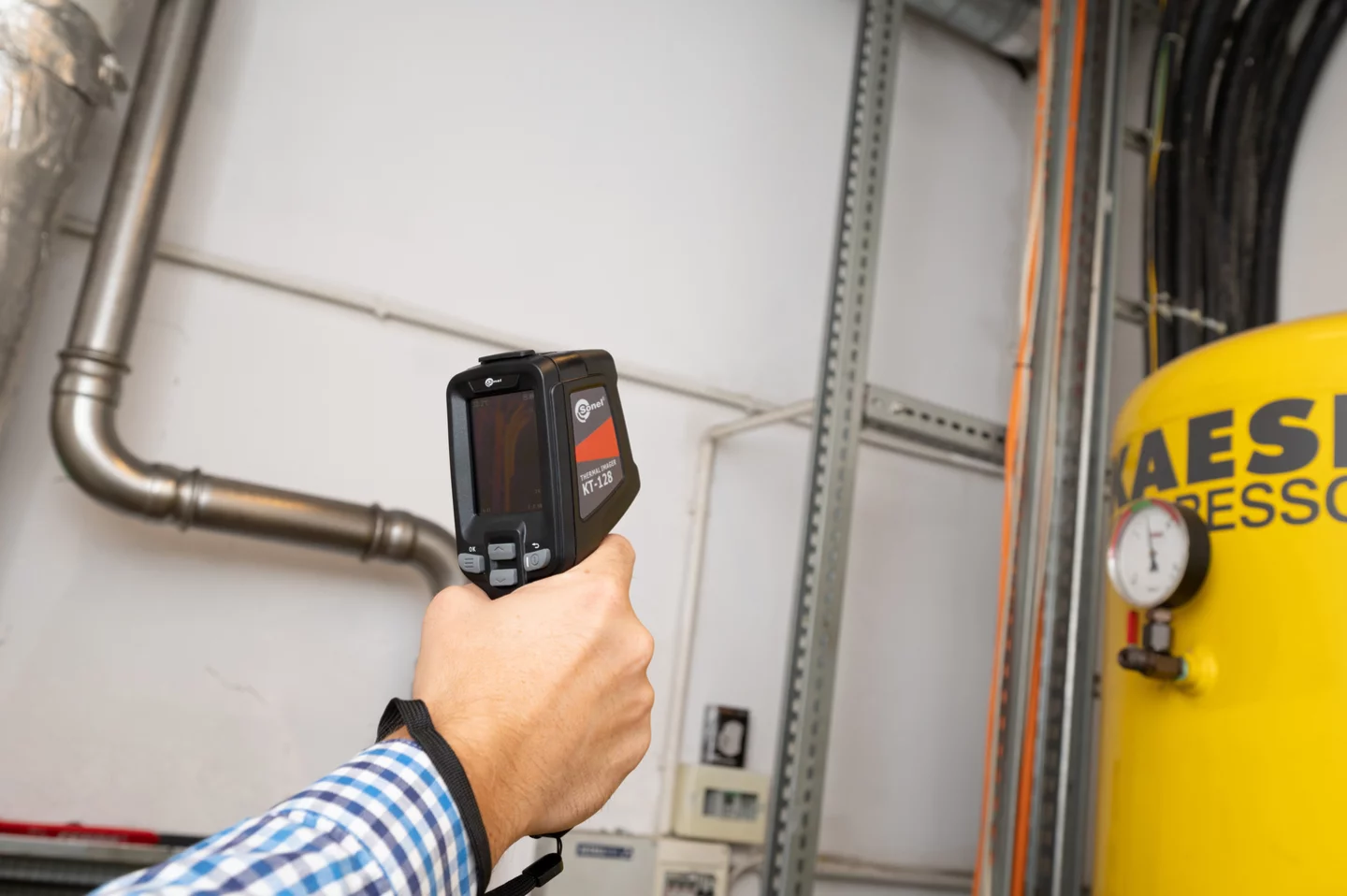

KT-128 is used always when the temperature of objects is important and may affect the operation of the equipment. Particularly useful in:

power engineering (including PV installations),
construction sector,
industry
HVAC.

Features

measuring range -20°C...400°C (-20°F... 752°F)
quick start
fast temperature measurement
automatic signalling of exceeded alarm threshold
saving IR images to SD card
built-in Li-Ion battery with 5-hour working time
interfaces: USB type C, SD slot
can be set up on a tripod

Parameter	Description
Detector resolution	120 x 90 / 17 μm
Detector	7.5~14 μm
Frame rate	25 Hz
Sensitivity	60 mK
Spatial resolution (IFOV	7.6 mrad
Lens (field of vision / focal distance)	50° x 38° / 2,28 mm

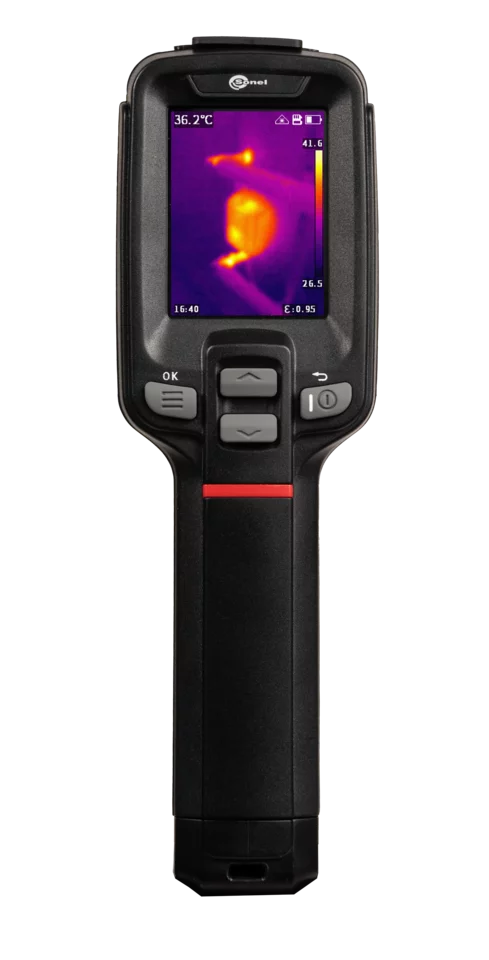

Display	2.4" 240 x 320 px LCD
Image mode	IR / Visual / PiP
Temperature range	Range 1: -20°C...+150°C Range 2: 100°C...+400°C
Accuracy	±2°C or ±2% of reading (for ambient temperature 15°C…30°C, object temp. ≥0°C)
Image analysis mode	Point. 3 areas. Temperature indication: min, max. Temp. alarm
Palettes	6
Emissivity	Selectable from 0.01 to 1.00 or from the list
Measurement adjustment	Adjustable distance, ambient temperature (reflected)
Image file format	JPG

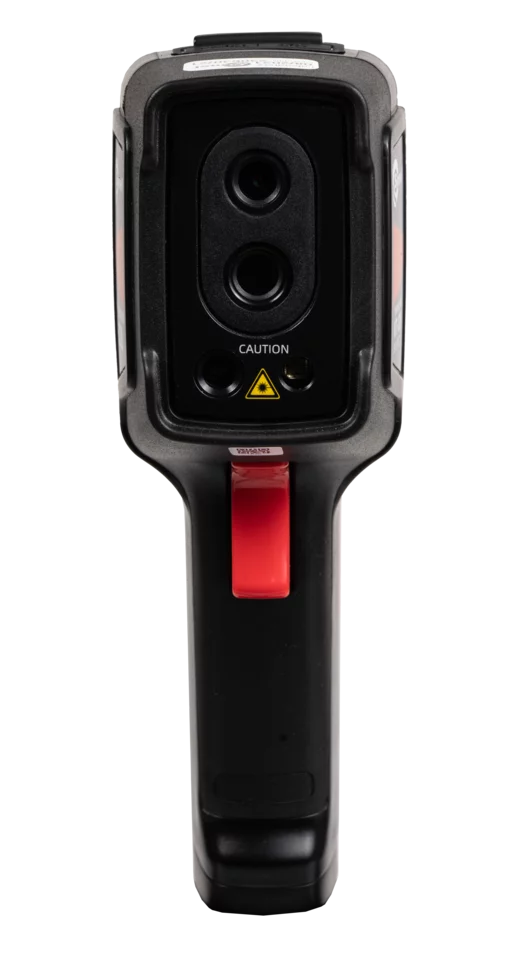

Built-in features	Visual camera 5 MPix, LED flashlight, laser pointer
Interfaces	Port kart microSD (maks. 32 GB), microUSB 2.0 typ C, statywmicroSD card slot (max. 32 GB), microUSB 2.0 type C, tripod
Power supply	Li-Ion battery (operating time >5 hours), built-in charger (charging time <2.5 hour), AC adapter 110-230 V, 50/60 Hz
Operating temperature	-10°C...50°C
Storage temperature	- 40°C...70°C
Housing	IP54
