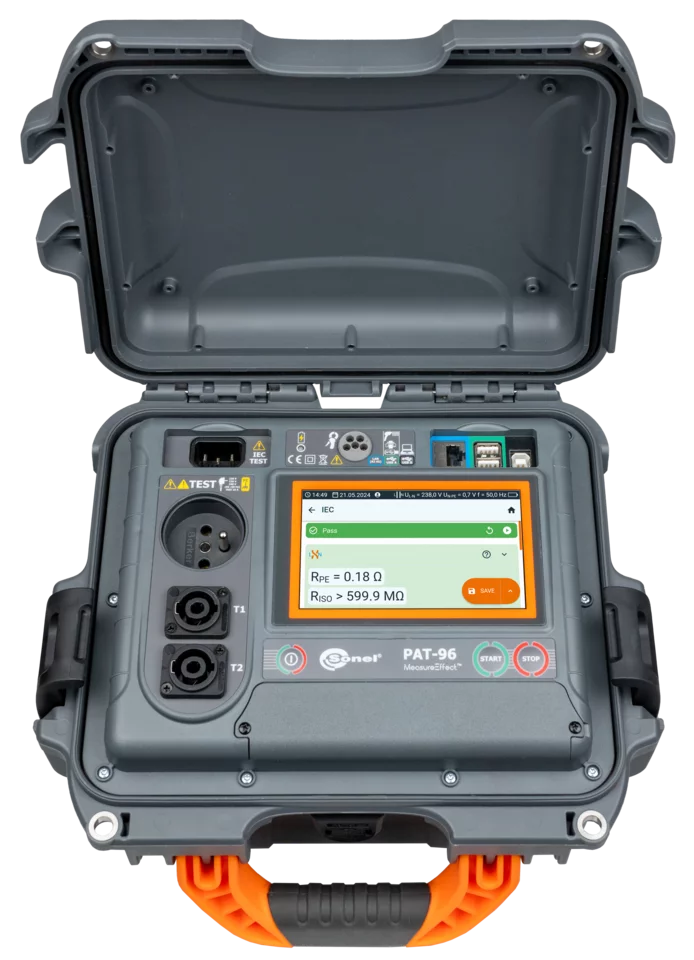

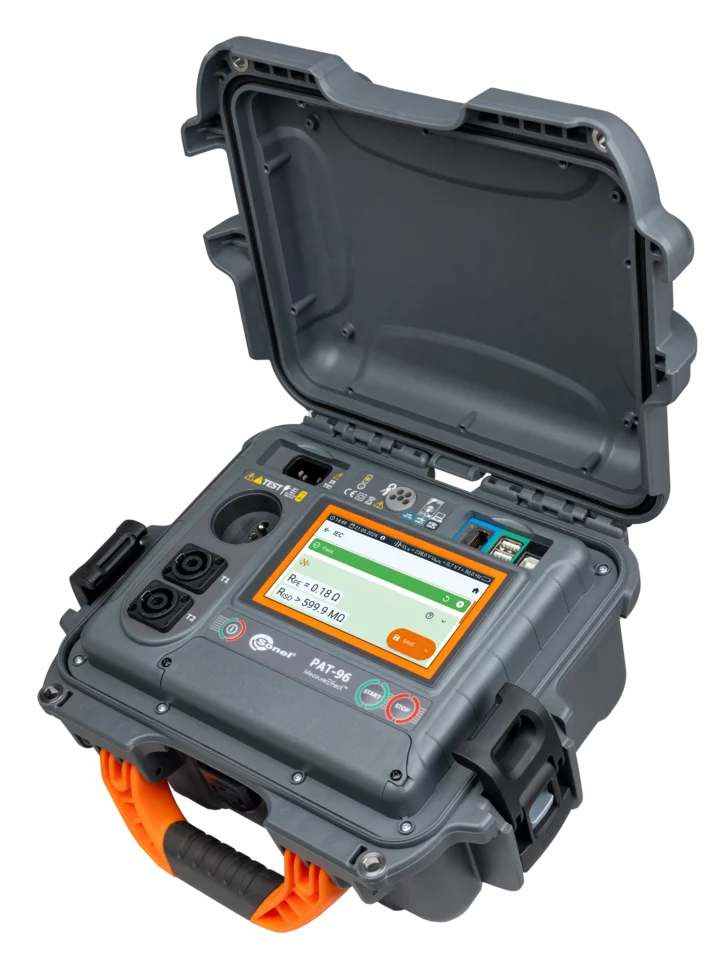

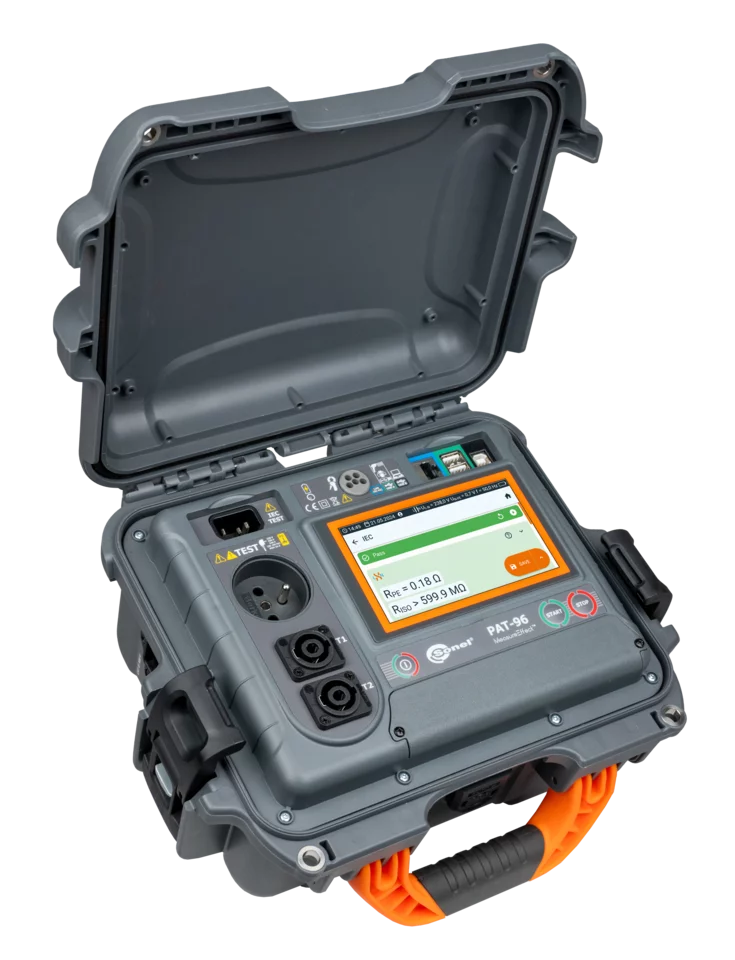

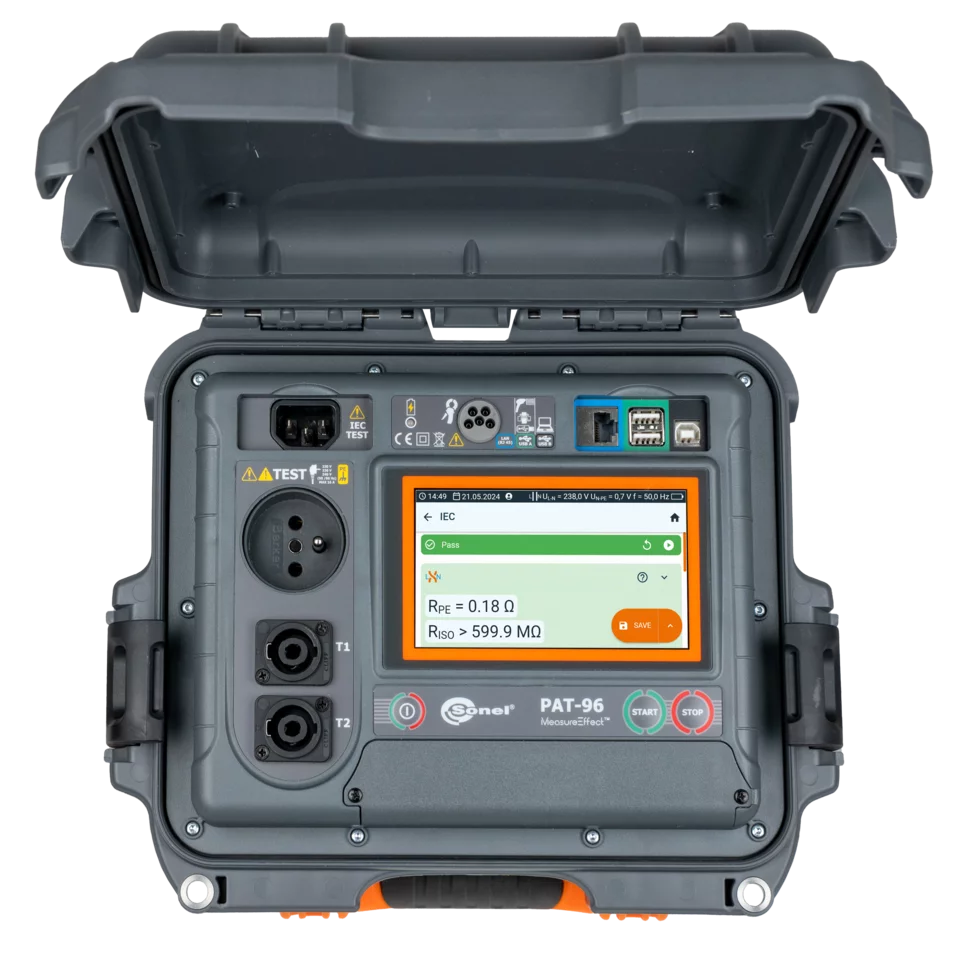

PAT-96
Portable Appliance and Welding Machine Tester

Name: Portable Appliance and Welding Machine Tester
Brand: Sonel
SKU: S68-WMGBPAT96
Availability: OutOfStock

Index cat. WMGBPAT96

ean 5907624017955

Ingress protection: IP 67

Measurement category: CAT II 300 V

Data transmission: LAN, USB, Wi-Fi

Display: touchscreen, graphic, color, backlit

unavailable

Inquiry for an offer

Sonel PAT Analysis

Software for PAT meters

Inquire

2-core test lead 2.1 m (IEC C13 / banana pl...

116,27 $

Available

C-3

Current clamp (Φ=52 mm)

280,00 $

Available

IEC/Uni Schuko adapter for extension cords ...

35,59 $

Available

Three-phase socket adapter 16 A for PAT (5P...

61,70 $

unavailable

Inquire

Three-phase socket adapter 16 A (5 P) for P...

206,44 $

unavailable

Inquire

Three-phase socket adapter 16 A for PAT (5P...

206,44 $

unavailable

Inquire

Three-phase socket adapter 16 A for PAT (4P...

185,09 $

Available

Three-phase socket adapter 16 A for PAT (4P...

206,44 $

Available

Industrial socket adapter 16 A for PAT

61,70 $

Available

Modern testing of appliances, power tools and welding machines

Ensure safe use of welding and electrical equipment with the Sonel PAT-96 electrical equipment safety meter.

The Sonel PAT-96 advanced meter is perfect for control measurements of welding machines and other electrical devices. The instrument allows to measure parameters having an impact on the safe use of the equipment, such as resistance of protective conductors, insulation resistance, continuity of connections, leakage currents, power, RCD and PRCD. The PAT-96 model is especially dedicated to testing welding equipment according to the EN 60974-4 standard. It allows, among other things, to check the rated voltage of welding equipment in no-load condition, the welding circuit leakage current and the primary leakage current.

The Sonel PAT-96 electrical equipment safety meter will come in handy in those areas where safety is of particular importance. Reliable wherever welders, power tools, three-phase appliances or domestic appliances need to be inspected.

Sonel MeasureEffect™

The meter is a part of the Sonel MeasureEffect™ platform. It is a comprehensive system that enables you to take measurements, store and manage data, and provides multi-level control of your instruments.

Features

Power supply 195...265 V
Measurement of devices with 110 V and 230 V 50/60 Hz power supply
Measuring system that enables:
- measurement of welding equipment parameters:
  - rated voltage of welding devices in no-load condition,
  - welding circuit leakage current,
  - primary leakage current,
- protective conductor resistance measurement,
- measurement of insulation resistance in three points,
- measurement of substitute, differential and touch leakage current,
- functional test,
- test of RCD and PRCD switches,
- ...and much more.
Intuitive user interface.
Cooperation with a label printer and QR code scanner.

Application

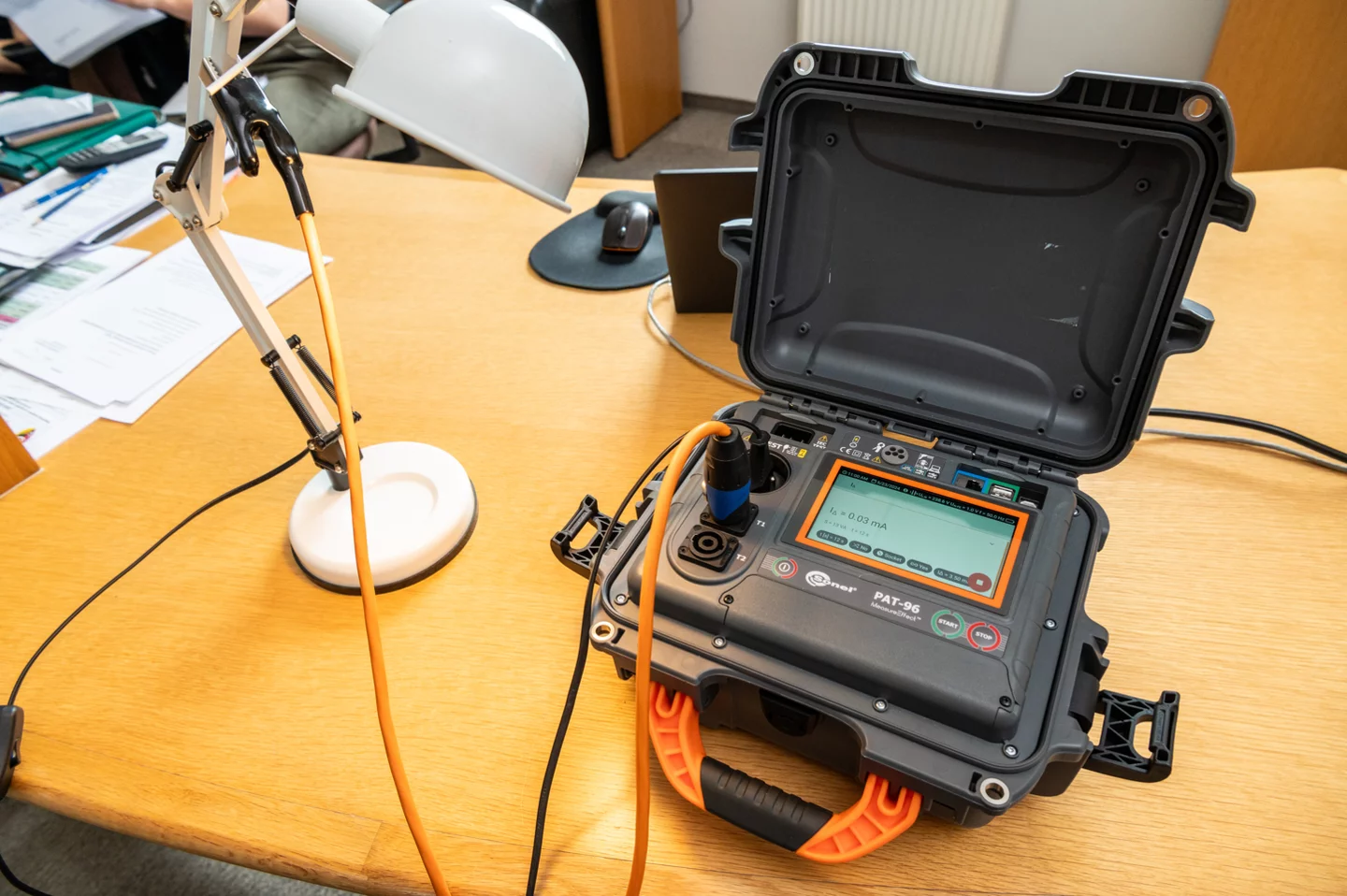

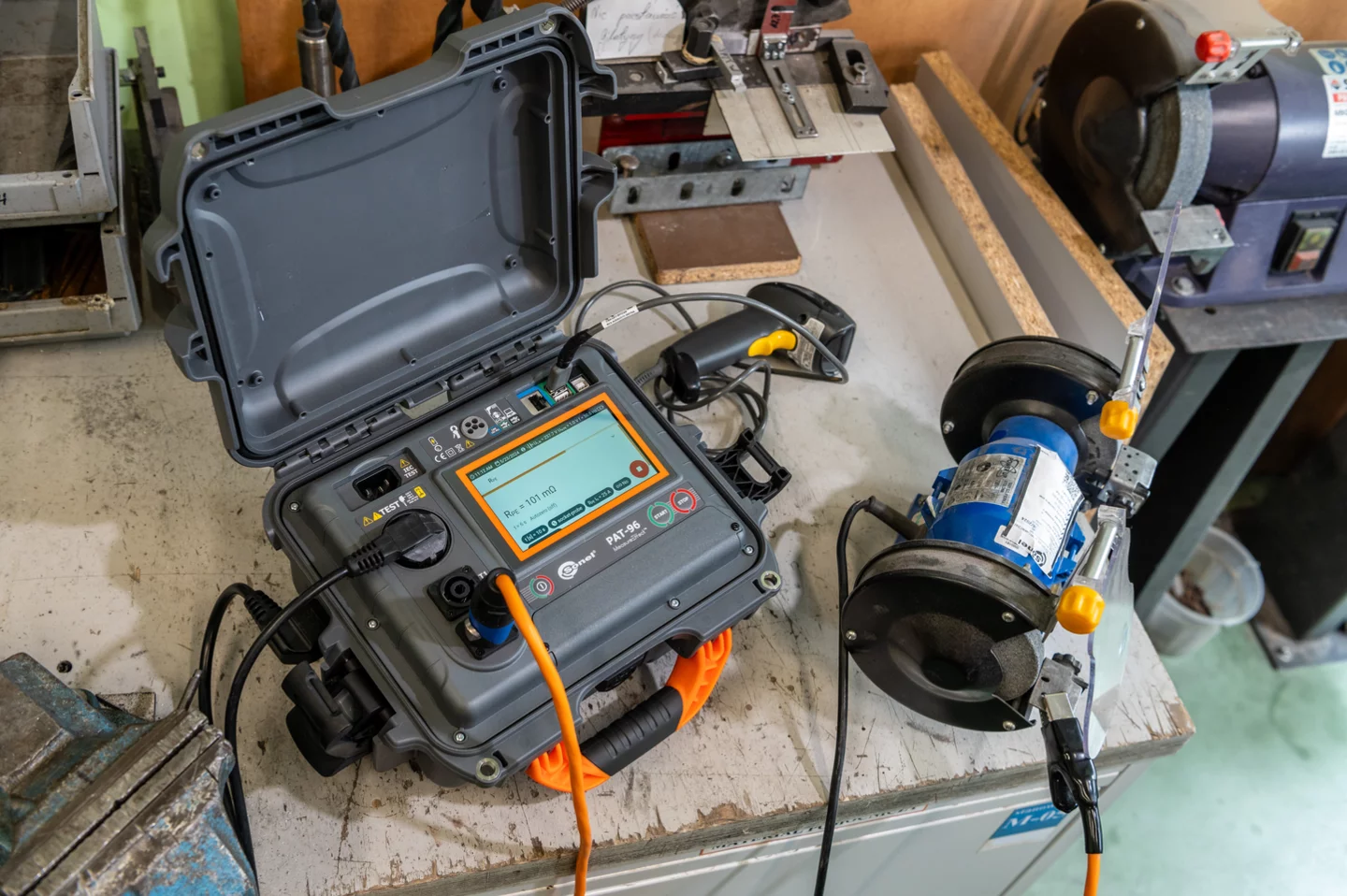

Sonel PAT-96 is an ideal choice for professionals involved in the maintenance and repair of power tools and other appliances. Thanks to its accurate testing, it provides a detailed analysis of the technical condition of the equipment under examination. It guarantees both the safety of users and the long-term maintenance of equipment in optimal technical condition. Developed on the basis of the experience gained, the Sonel PAT-96 tester is designed for both field and industrial challenges.

Versatility

The device is used wherever safety is the most important thing. Ideally suited to situations where it is necessary to check welders, power tools, three-phase devices and household appliances.

Welding machines

PAT-96 was created for testing welding equipment in compliance with EN 60974-4 standard.

Capabilities

Thanks to the extensive measuring part, PAT-96 enables comprehensive checking of electrical devices. The touch screen and autoprocedures section make testing quick and efficient. The automatic procedure wizard means even more flexibility for the instrument. The meter has a built-in help system.

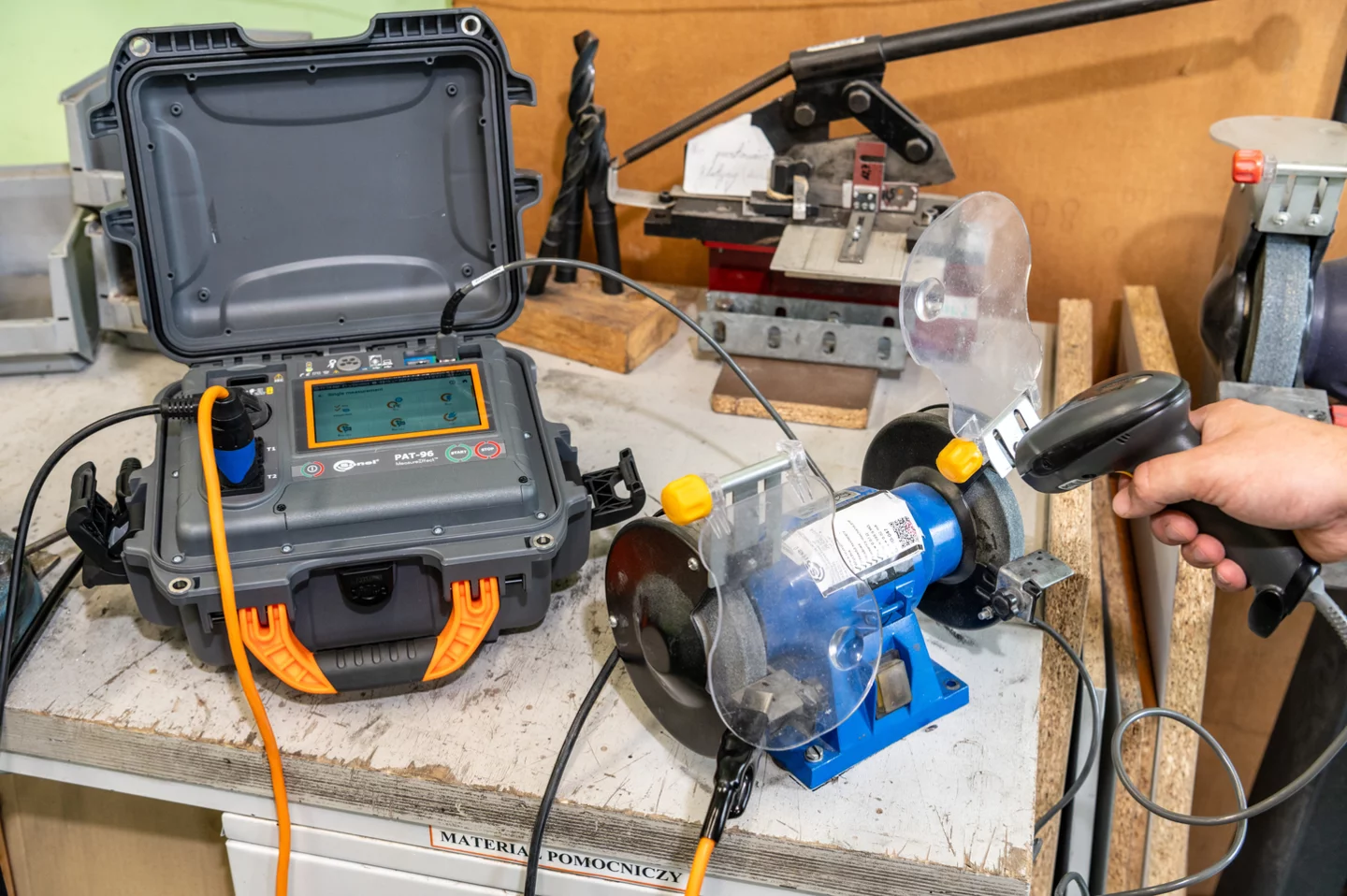

The meter cooperates with a label printer and QR scanner, which greatly facilitates the recordkeeping of tools. The following printouts are available:

initial measurement report,
QR code, where, which stores unique data to identify the device in the database.

These data can be read and added to the meter memory using the optional QR code scanner.

The whole picture is complemented by a compact and durable housing. It provides instrument protection during both measurements and transport.Capabilities

Memory

The memory has a tree structure, built from folders, objects and devices. For each device tested it contains its description, location of measurements, customer data and registration number.

Standards

The instrument can be used to test equipment according to standards, among others:

EN 50699
EN 50678
EN 60974-4
VDE 0701-0702
VDE 0404-1
VDE 0404-2
EN 60745-1
EN 62841
EN 60335-1
EN 60950
EN IEC 62368-1
AS/NZS 3760

Specifications

Measurement functions	Range	Resolution	Accuracy
Resistance of protective conductor (PE) I = 200 mA / 10 A / 25 A	up to 19.99 Ω	from 1 mΩ	from ±(3% m.v. + 4 digits)
Insulation resistance U_ISO = 100 V / 250 V / 500 V / 1000 V	up to 599.9 MΩ	from 1 kΩ	±(5% m.v. + 8 digits)
Current (clamp measurement)	up to 24.9 A	from 1 mA	±(5% m.v. + 5 digits)
Visual test		✓
Continuity check of protective conductor (PE)		✓
Insulation resistance measurement at three points		✓
IEC cable test		✓
Functional test
Apparent power S	up to 3.99 kVA	from 1 VA	±(5% m.v. + 3 digits)
Active power P	up to 3.99 kW	from 1 W	±(5% m.v. + 3 digits)
Reactive power Q	up to 3.99 kvar	from 1 var	±(5% m.v. + 3 digits)
Power Factor (PF)	up to 1.00	0.01	±(10% m.v. + 5 digits)
Current consumption for power measurement	up to 15.99 A	0.01 A	±(2% m.v. + 3 digits)
THD for voltage and current	up to 999.9%	0.1%	±(5% m.v. + 5 digits)
cosφ	up to 1.0	0.1	±(5% m.v. + 5 digits)
Voltage measurement for welding machines
RMS voltage U_RMS	up to 170.0 V	0.1 V	±(2.5% m.v. + 5 digits)
DC and AC peak voltage	up to 240.0 V	0.1 V	±(2.5% m.v. + 5 digits)
Voltage U₀	up to 240.0 V	0.1 V	±(2.5% m.v. + 5 digits)
Leakage current measurement
Welding circuit leakage current I_L	up to 14.99 mA	0.01 mA	±(5% m.v. + 2 digits)
Leakage current of the welding machine’s primary circuit I_P	up to 14.99 mA	0.01 mA	±(5% m.v. + 5 digits)
PE leakage current and differential leakage current	up to 19.9 mA	0.01 mA	±(5% m.v. + 2 digits)
Substitute leakage current	up to 19.9 mA	0.01 mA	±(5% m.v. + 2 digits)
Touch leakage current	up to 4.999 mA	0.001 mA	±(5% m.v. + 3 digits)
RCD and PRCD switch test
Measurement of RCD parameters according to IEC 61557	up to 300 ms	1 ms	±(2% m.v. + 2 digits)
Measurement of RCD tripping current I_A for sinusoidal residual current (AC type)	up to 30 mA	0.1 mA	±5% I_Δn
Measurement of power network parameters
Voltage	up to 265.0 V	0.1 V	±(2% m.v. + 2 digits)
Frequency	up to 65.0 Hz	0.1 Hz	±(2% m.v. + 2 digits)
