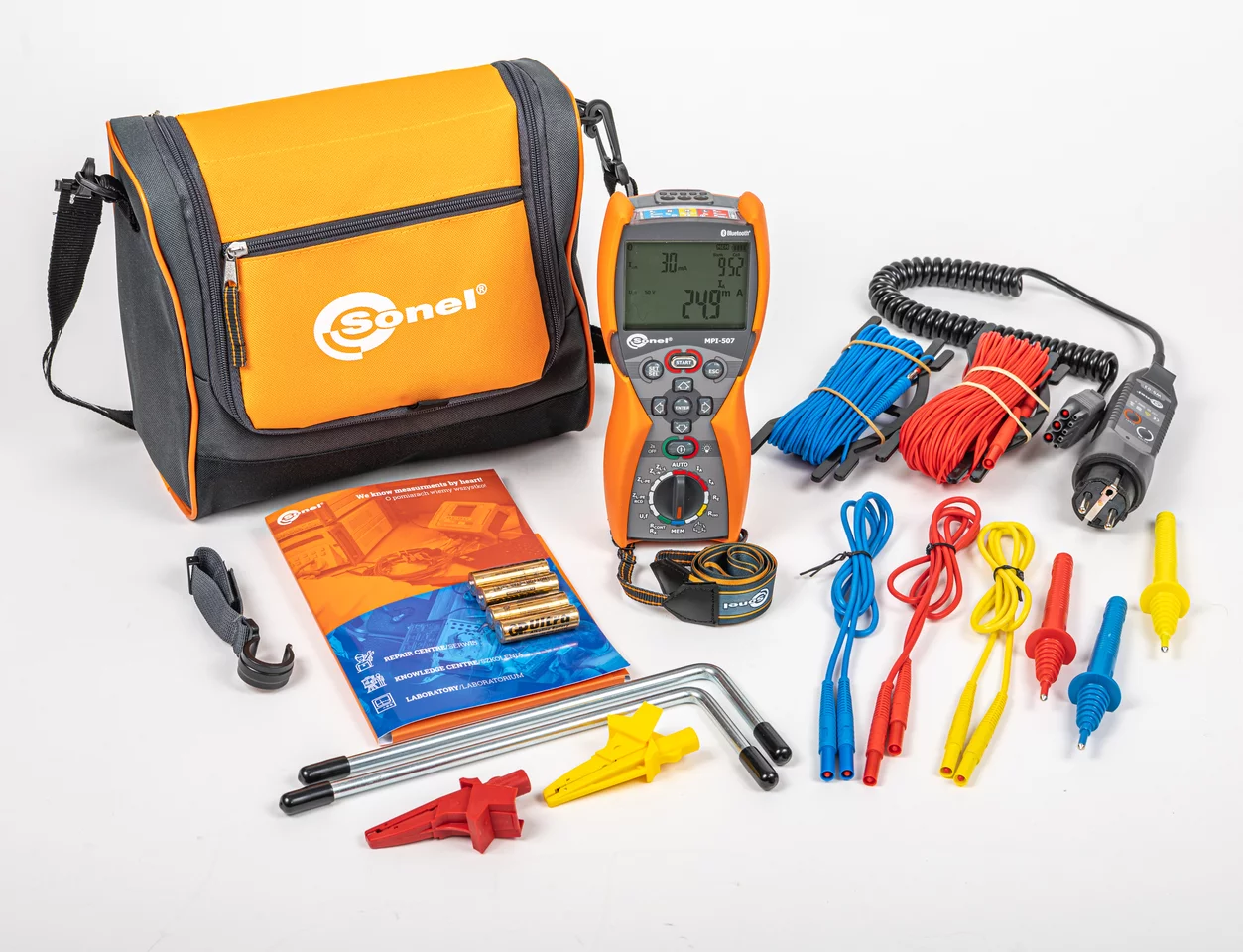

A great little multitasker

The multifunction meter of electrical installation parameters Sonel MPI-507 is a unique model of a handy meter used for precise measurements of electrical installation parameters. In its sleek and compact dimensions, the meter conceals a wealth of measurement functions. An additional advantage of this device is its extremely handy and ergonomic form, which makes it easy to carry and increases the comfort of work.

The Sonel MPI-507 meter is one of the smallest multifunction meters on the market; it surprises with intuitive operation and extended capabilities. It's a versatile instrument that is ready to work in all conditions. It has been designed for specialists in the installation and electrical industries, as well as for professional measuring engineers.

With this instrument it is possible to perform basic measurements of various types, including measurements of short-circuit loop parameters, insulation resistance, resistance of protective and equalising connections, earth resistance measurement, as well as testing of residual current devices (RCD) of type AC and A. Due to its compact form and favourable price, the meter will appeal especially to novice users. Its excellent working precision means that its advantages will also be appreciated by advanced measuring engineers.

Features

Measurement of short circuit loop parameters
- Measurement of short circuit loop impedance in networks with rated voltage: 220/380 V, 230 V/400 V, 240/415 V and frequency 45…65 Hz, operating voltage range: 180…460 V
- Indication of short circuit loop resistance R and short circuit loop reactance X
- Measurements of short circuit loop impedance with 15 mA current, without tripping the RCD circuit breaker
- Maximum test current: 7.6 A (at 230 V), 13.3 A (at 400 V)
Testing RCD breakers of AC, A types
- Testing of prompt, short-delay and selective RCDs with rated current values 10, 15, 30, 100, 300, 500 mA
- Measurement of I_A trip current and tripping time t_A for currents 0.5 I_Δn, 1 I_Δn, 2 I_Δn, 5 I_Δn
- R_E and U_B measurement without RCD tripping
- Extended AUTO function of RCD measurement, with the possibility of measuring Z_L-PE with low current
- Measurement of I_A and t_A during one RCD tripping
Earth resistance measurement
- Measurement with 3-pole method

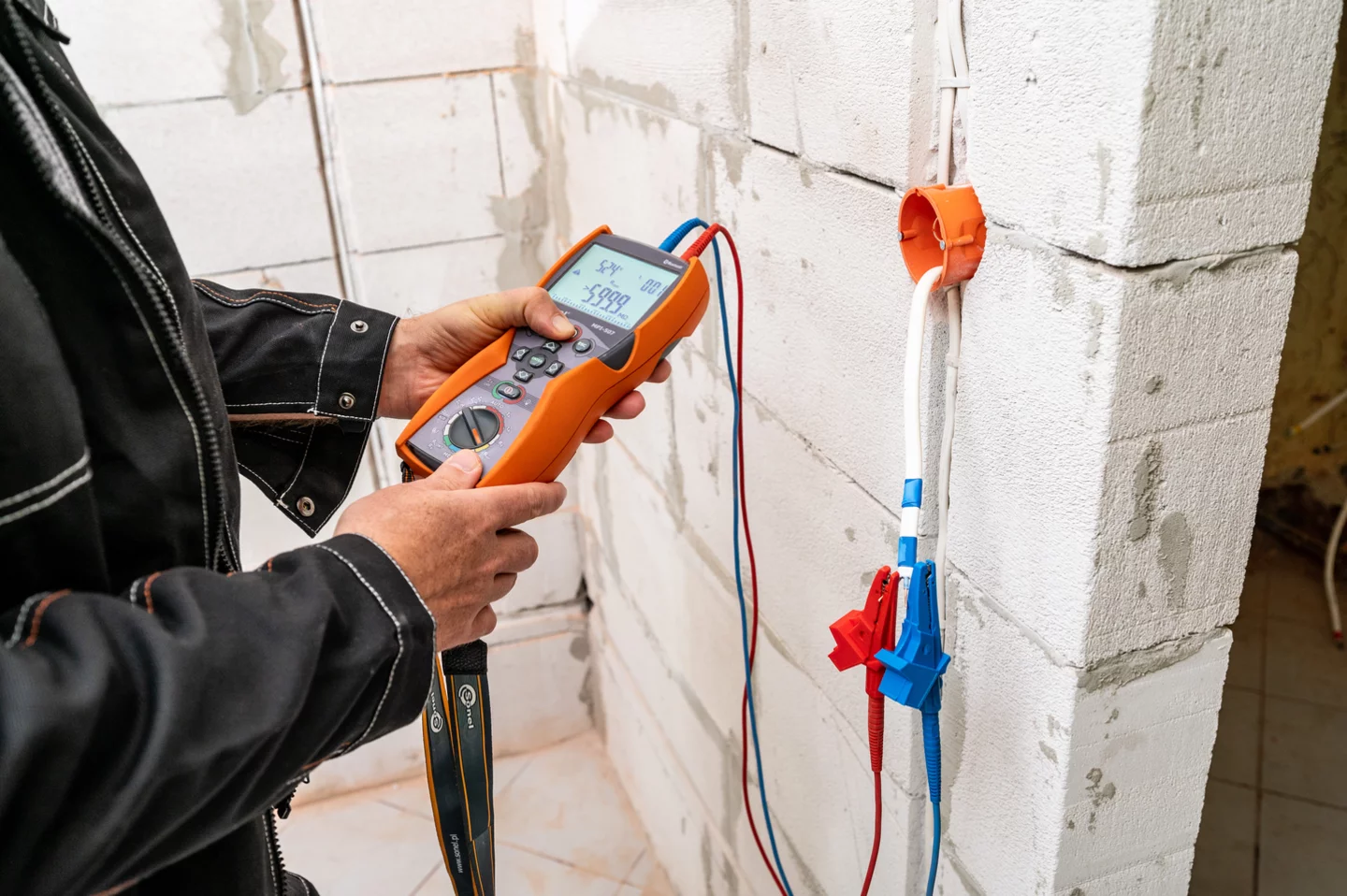

Insulation resistance measurement
- Test voltage 100 V, 250 V, 500 V
Measurement of resistance of protective conductors and equipotential bondings
- Measurement of protective connections continuity with a ±200 mA current in accordance with EN 61557-4
- Autocalibration of test leads - any leads can be used
- Low current resistance measurement with sound signaling
Phase sequence indication

Additional functions

Checking the correctness of PE connection using a contact electrode.

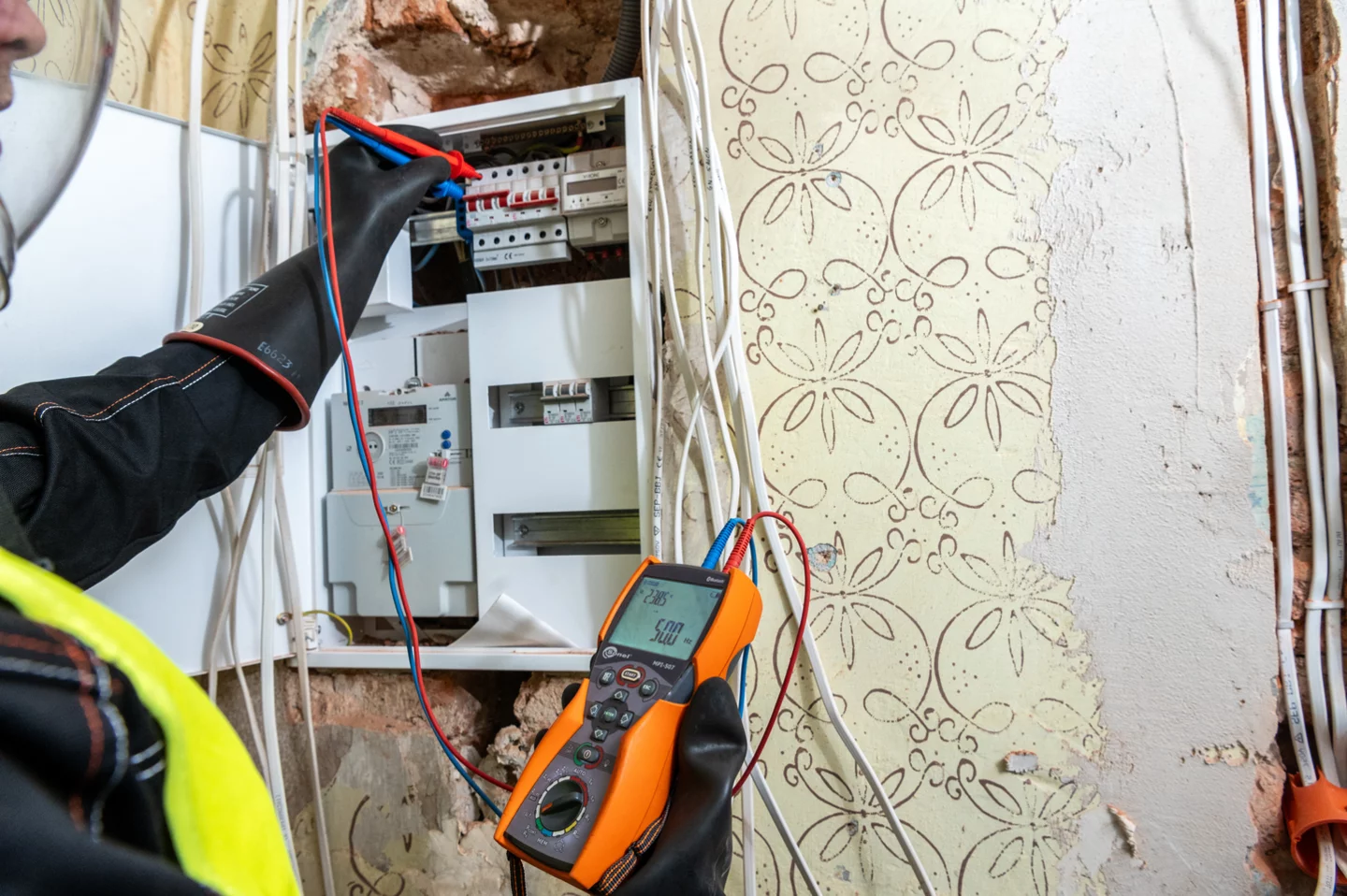

Measurement of voltage (0 … 500 V) and network frequency.
Memory of 990 results.
Wireless data transmission to a computer.
Backlit keypad.

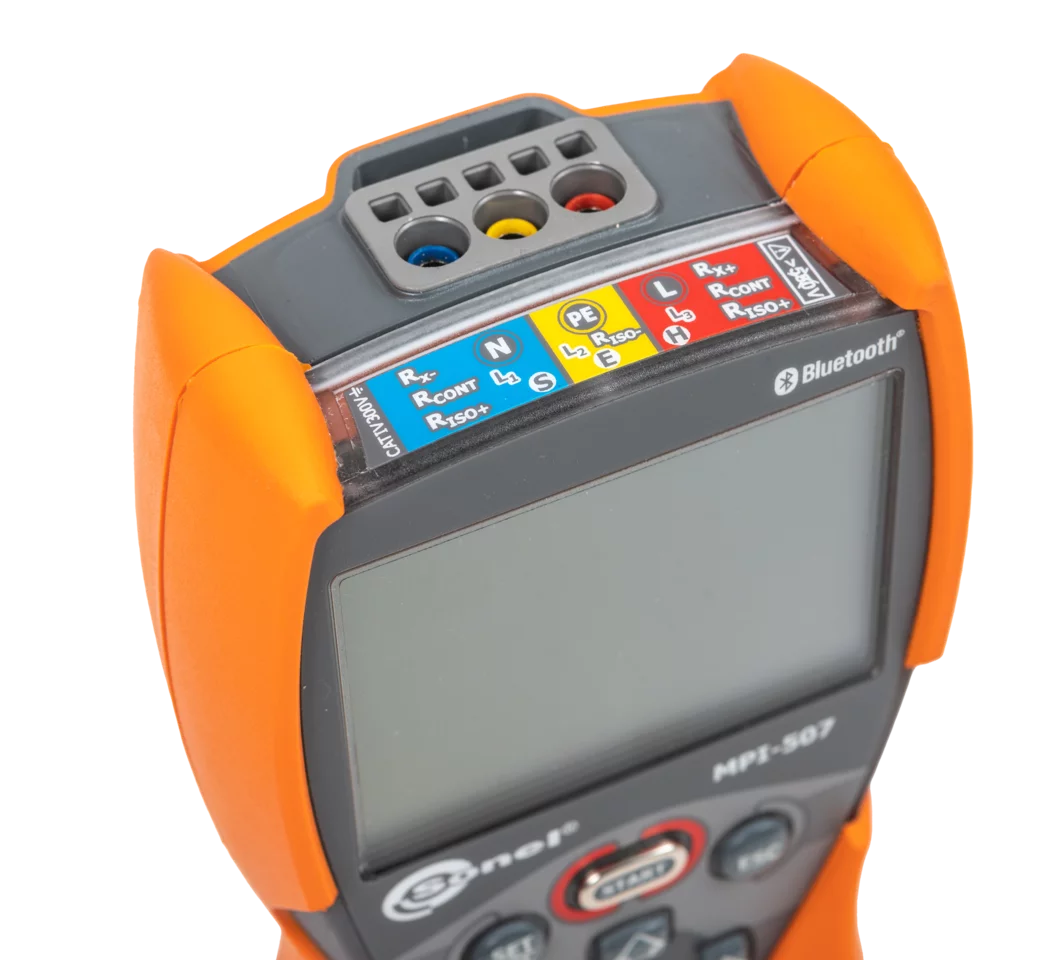

Simplicity and cutting edge technologies

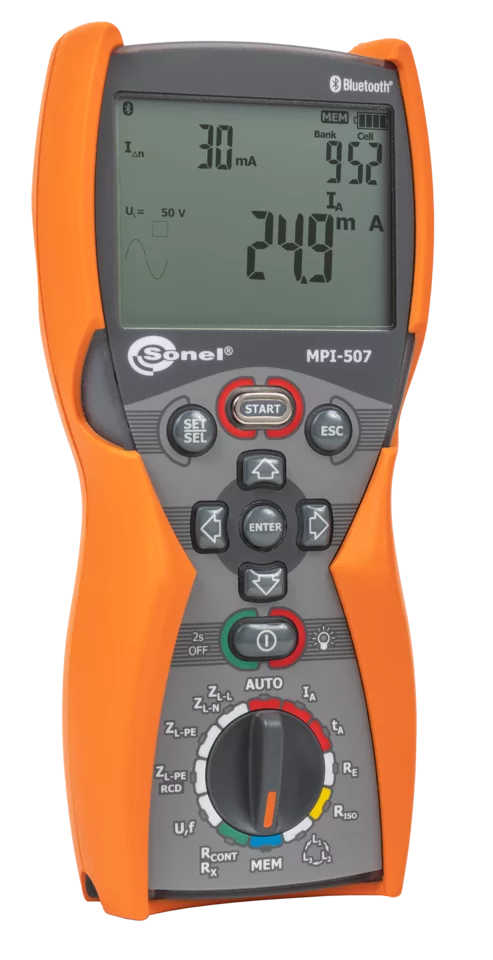

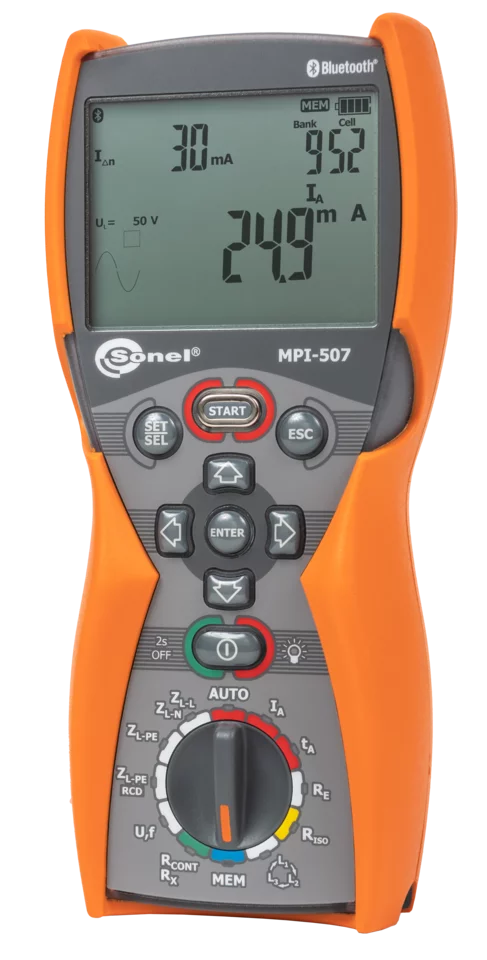

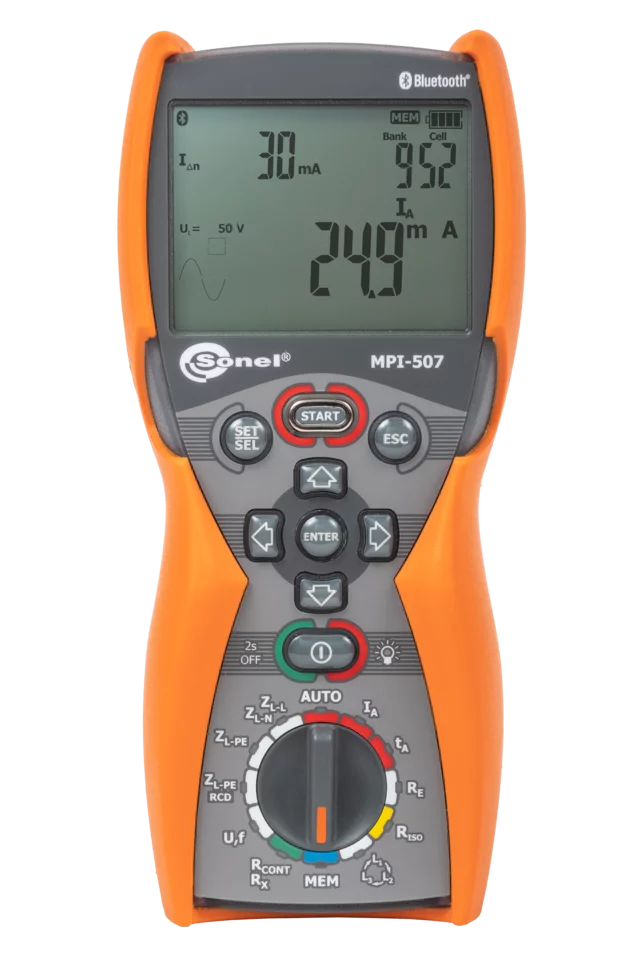

Probably the world's smallest meter with such a large number of measurement functions. The functions are selected with a rotary switch. Additional parameters are set with buttons located on the housing face. The settings are saved by the device even when the battery is completely discharged.

All buttons and the modular display have backlight, which significantly improves operation in low light. Large memory eliminates the need for taking notes during the measurements.

Inspection of electrical safety

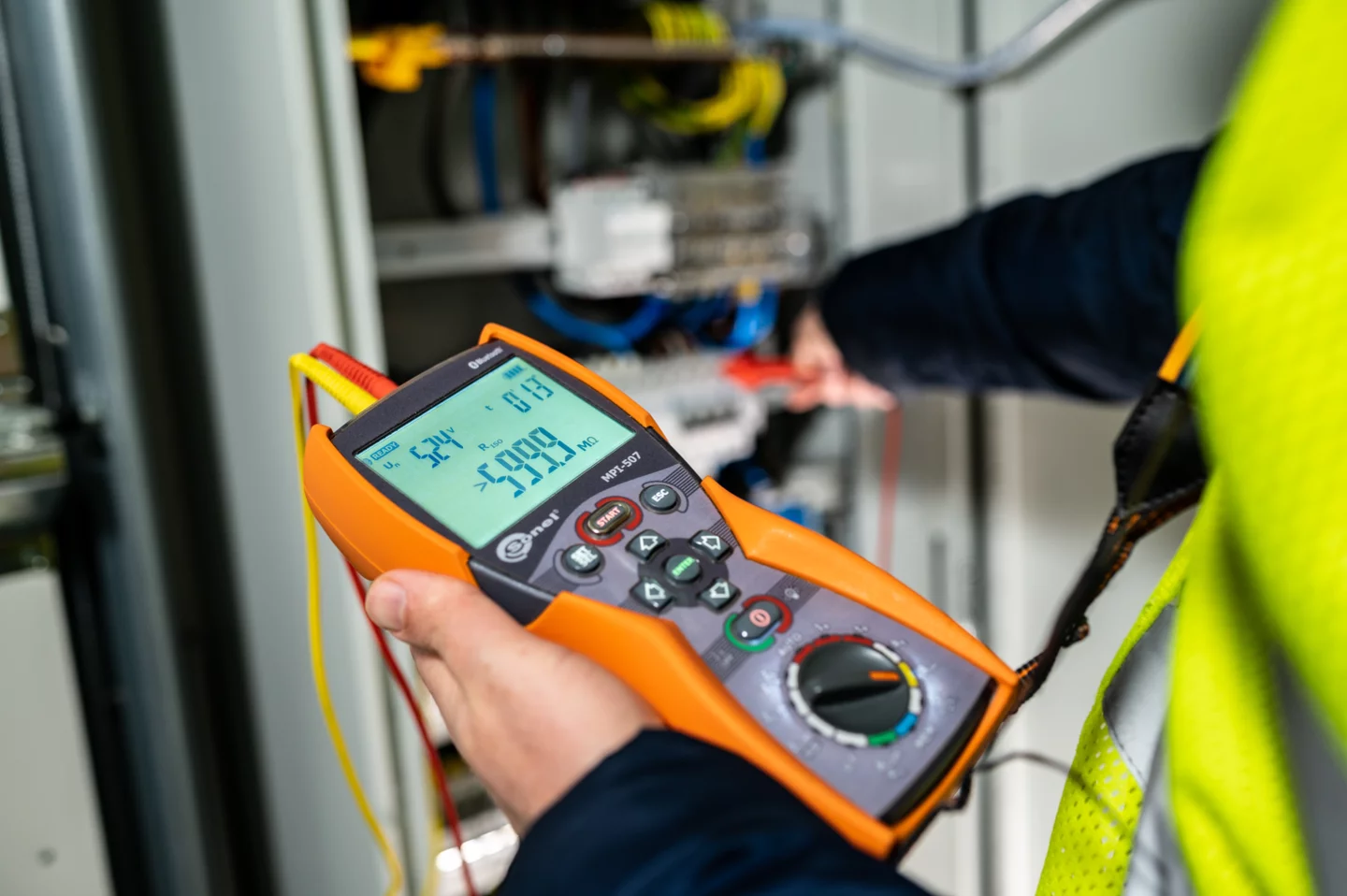

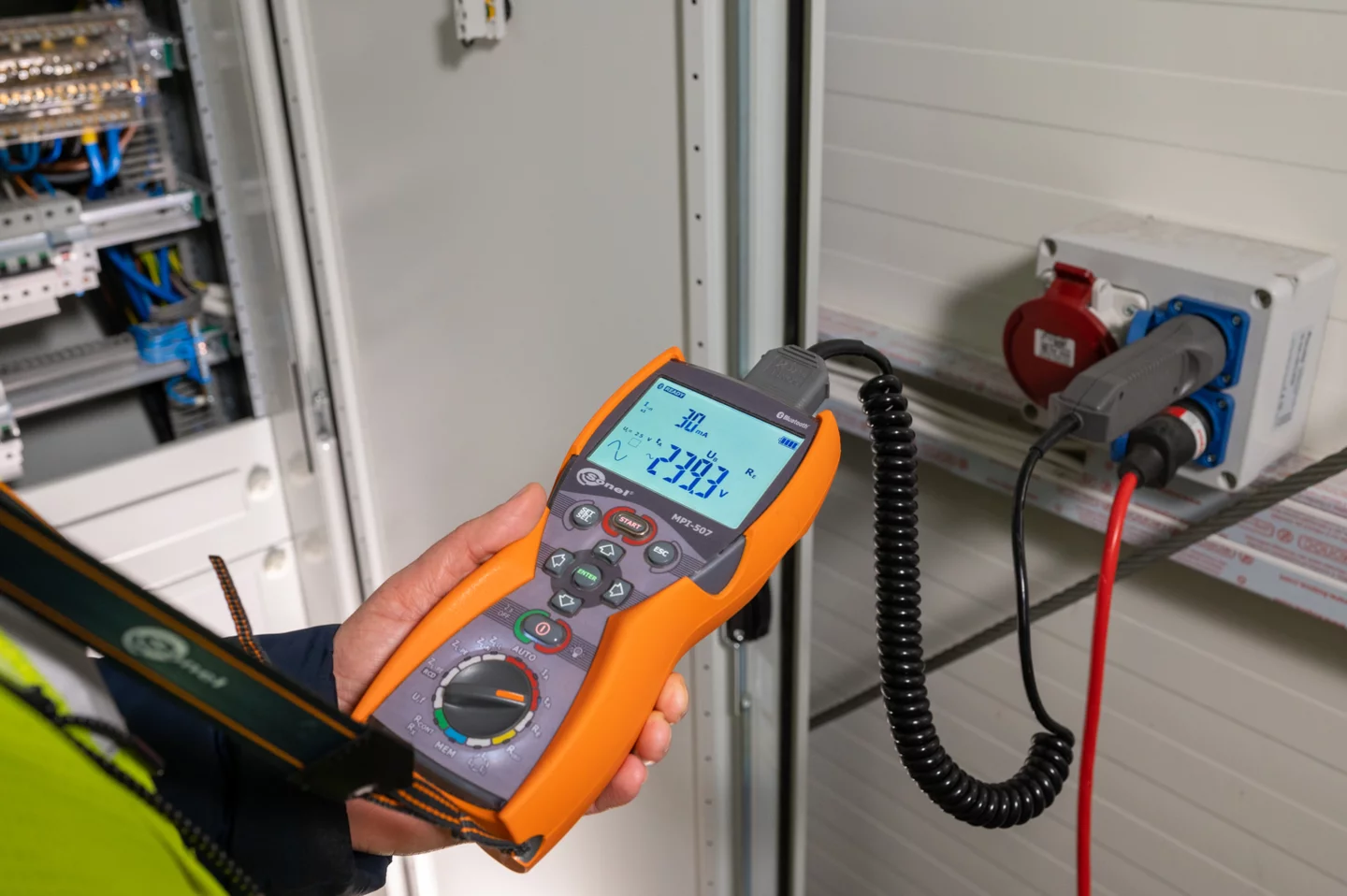

This device may be used to inspect safety of electrical systems in households and industrial facilities. Its main advantage is quick measurement (just a few seconds!) of fault loop impedance in circuits with RCD.

Measurements can be easily automated with:

auto mode of residual current devices (RCD) tests,
the WS adapter that can be used for testing systems via standard 230 V sockets

Earth resistance measurement

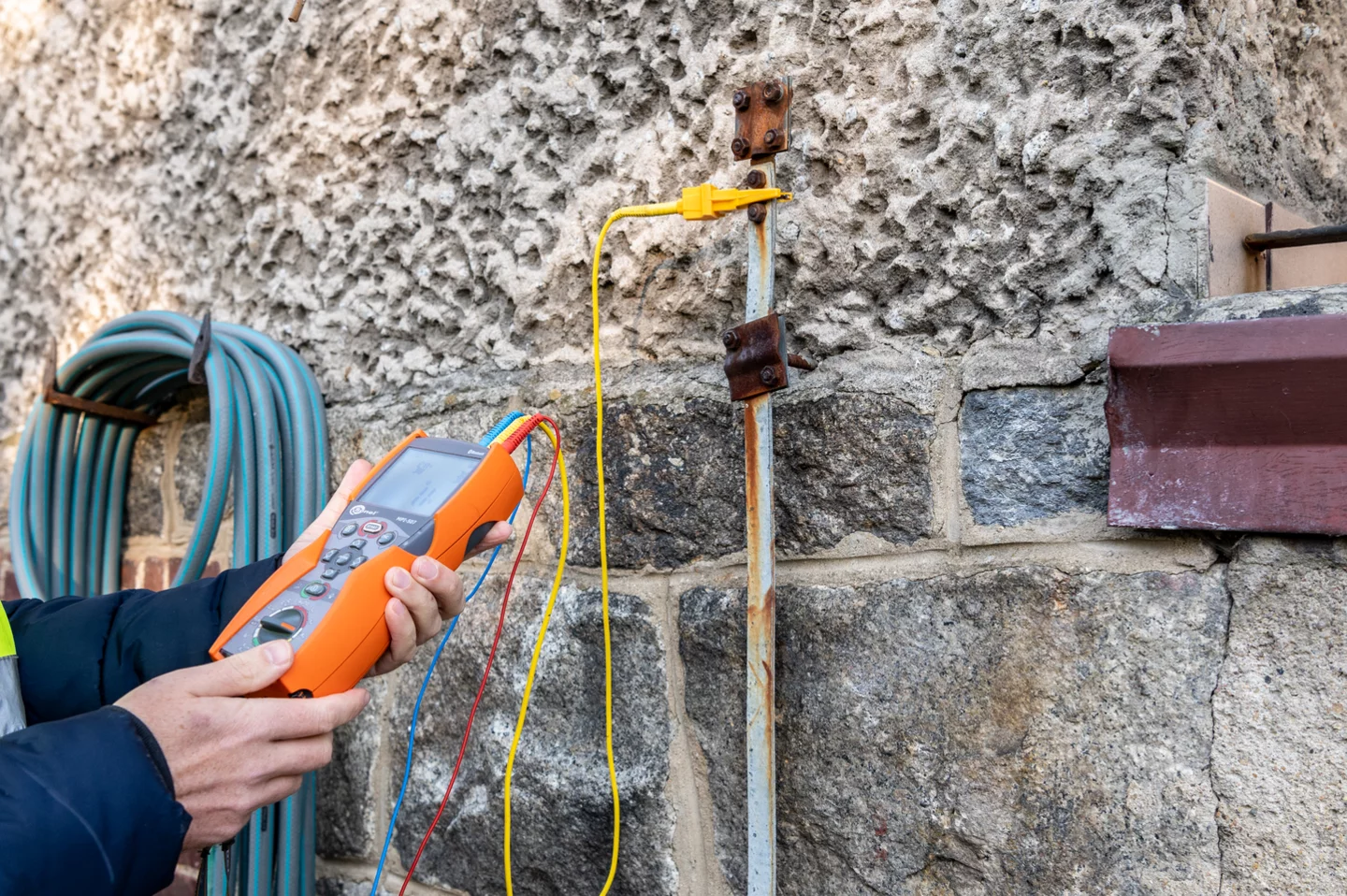

The device is ideal for measurements of earthing installations in residential buildings. It allows you to check the quality of the earthing system using the 3-pole method. Together with earth resistance result, the meter shows the interference voltage and the resistance of the auxiliary R_S and R_H probes.

Increased resistance to environmental conditions

The meter will cope well in difficult environmental conditions. Protection against penetration of dust and water is ensured by a unique housing with a level of protection IP67.

Communication and software

You can easily transfer measurement data to your computer via Bluetooth wireless communication. In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.

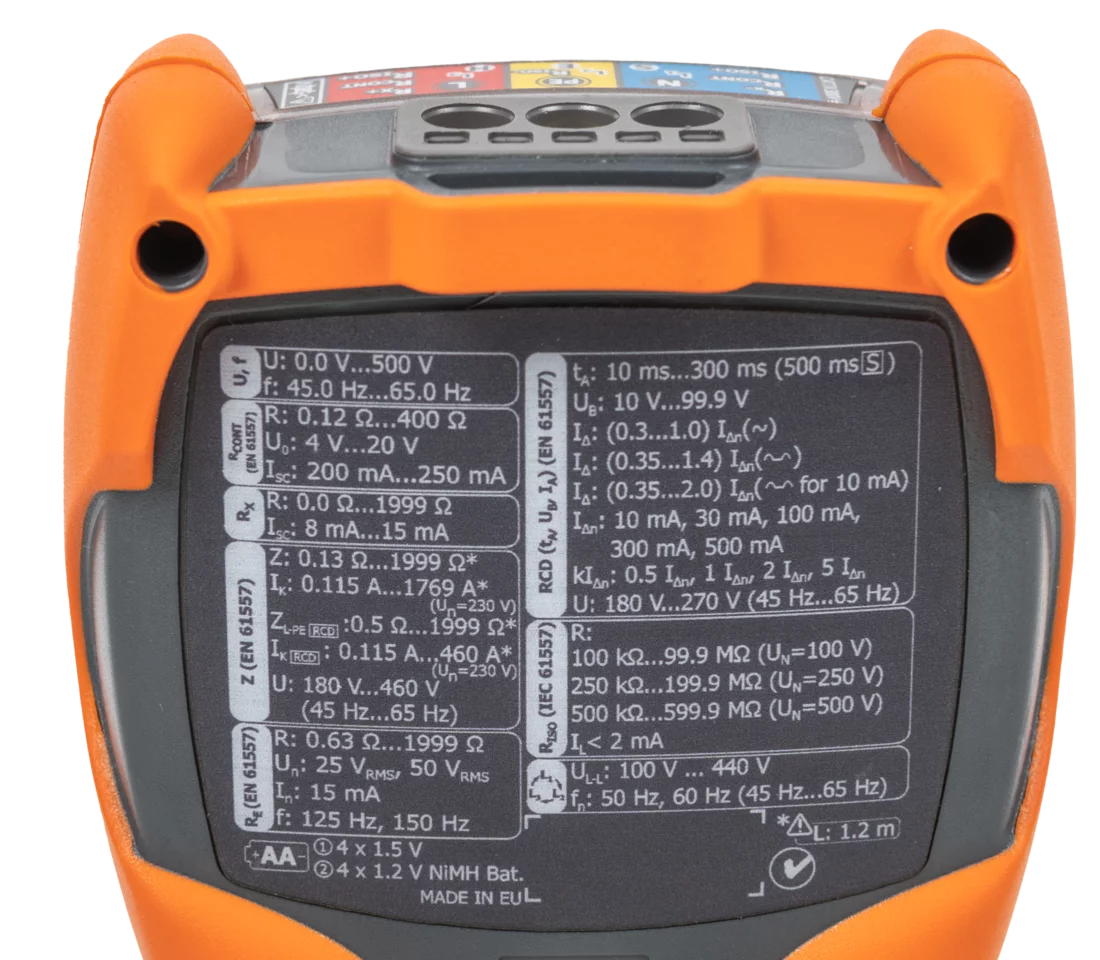

Specifications

Measurement functions	Measurement range	Display range	Resolution	Accuracy
Fault loop impedance
Fault loop Z_L-PE, Z_L-N, Z_L-L	0.13 Ω…1999 Ω acc. to IEC 61557	0.00 Ω…1999 Ω	from 0.01 Ω	±(5% m.v. + 3 digits)
Fault loop Z_L-PE in RCD mode	from 0.5 Ω…1999 Ω acc. to IEC 61557	0.00 Ω…1999 Ω	from 0.01 Ω	from ±(6% m.v. + 5 digits)
Measurements of RCD parameters
RCD tripping test and measurement of tripping time t_Ameasuring current 0,5 I_Δn, 1 I_Δn, 2 I_Δn, 5 I_Δn
general and short-time delay RCD	0 ms…300 ms	0 ms…300 ms	1 ms	±(2% m.v. + 2 digits)
selective RCD	0 ms…500 ms	0 ms…500 ms	1 ms	±(2% m.v. + 2 digits)
Measurement of RCD tripping current I_A measuring current 0,3 I_Δn…2,0 I_Δn
for sinusoidal residual current (AC type)	3.0 mA…500 mA	3.0 mA…500 mA	from 0.1 mA	±5% I_Δn
for unidirectional residual current and unidirectional with the 6 mA DC bias (type A)	3.5 mA…420 mA	3.5 mA…420 mA	from 0.1 mA	±10% I_Δn
Earth resistance
3-pole method	0.68 Ω…1999 Ω acc. to IEC 61557-5	0.00 Ω…1999 Ω	from 0.01 Ω	from ±(3% m.v. + 5 digits)
Insulation resistance
Measuring voltage 100 V	100 kΩ…99.9 MΩ acc. to IEC 61557-2	0 kΩ…99.9 MΩ	from 1 kΩ	±(5% m.v. + 8 digits)
Measuring voltage 250 V	250 kΩ…199.9 MΩ acc. to IEC 61557-2	0 kΩ…199.9 MΩ	from 1 kΩ	±(5% m.v. + 8 digits)
Measuring voltage 500 V	500 kΩ…599.9 MΩ acc. to IEC 61557-2	0 kΩ…599.9 MΩ	from 1 kΩ	±(5% m.v. + 8 digits)
Resistance of protective conductors and equipotential bondings
Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current	0.12 Ω…400 Ω acc. to IEC 61557-4	0.00 Ω…400 Ω	from 0.01 Ω	±(2% m.v. + 3 digits)
Measurement of resistance with low current	0.0 Ω…1999 Ω	0.0 Ω…1999 Ω	from 0.1 Ω	±(2% m.v. + 3 digits)
Phase sequence indication	in the same direction (correct), opposite direction (incorrect), U_L-L voltage: 100 V…440 V (45 Hz…65 Hz)
