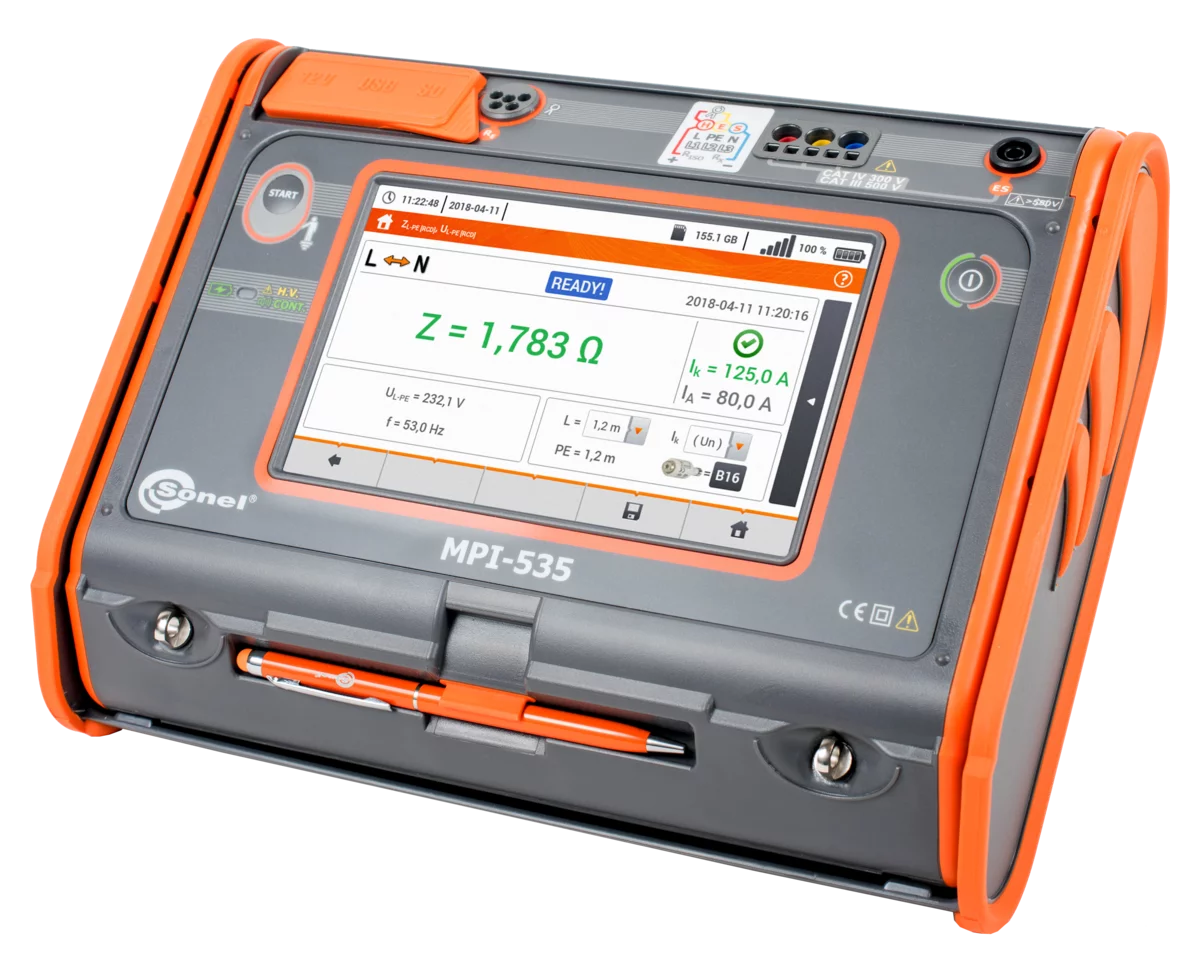

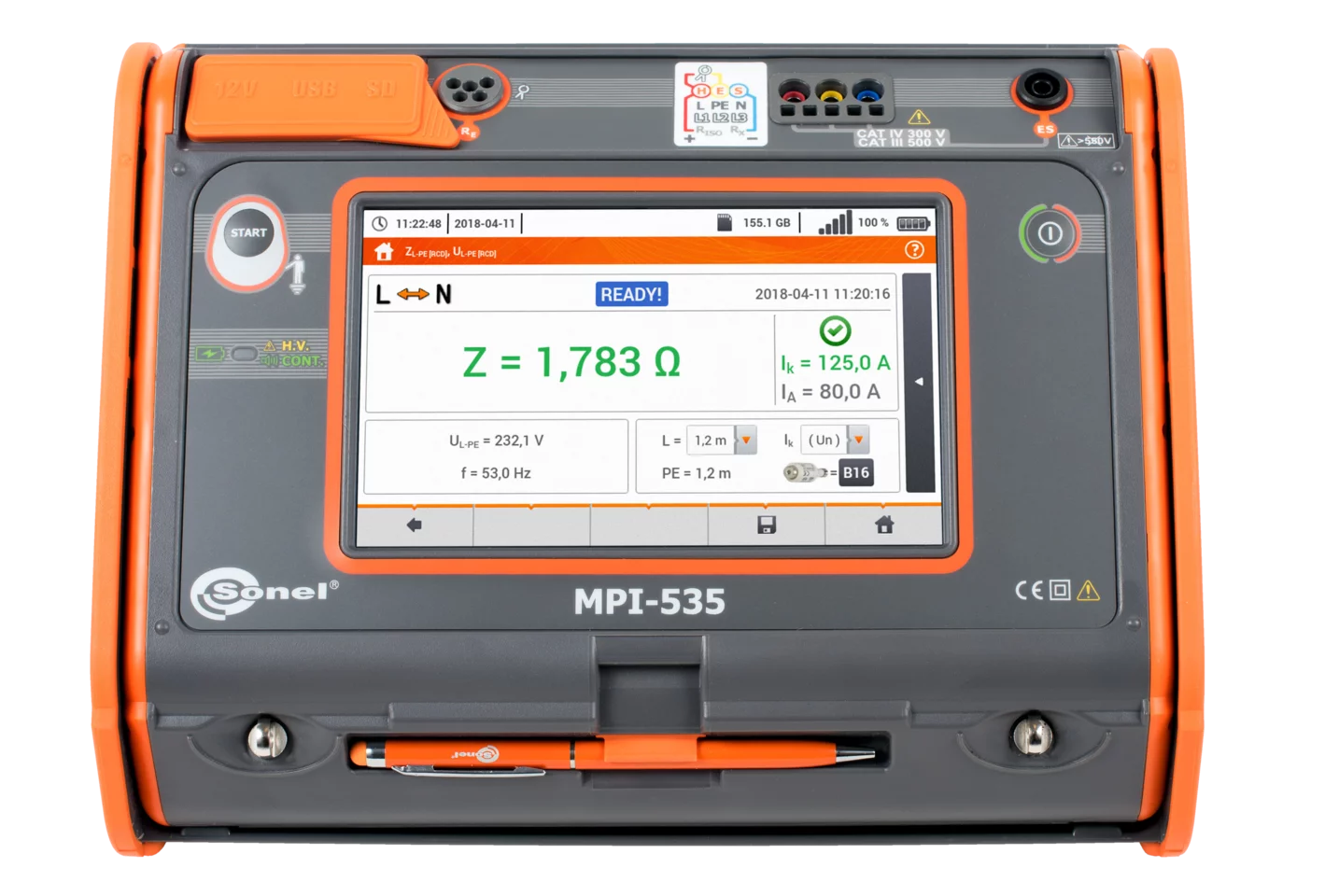

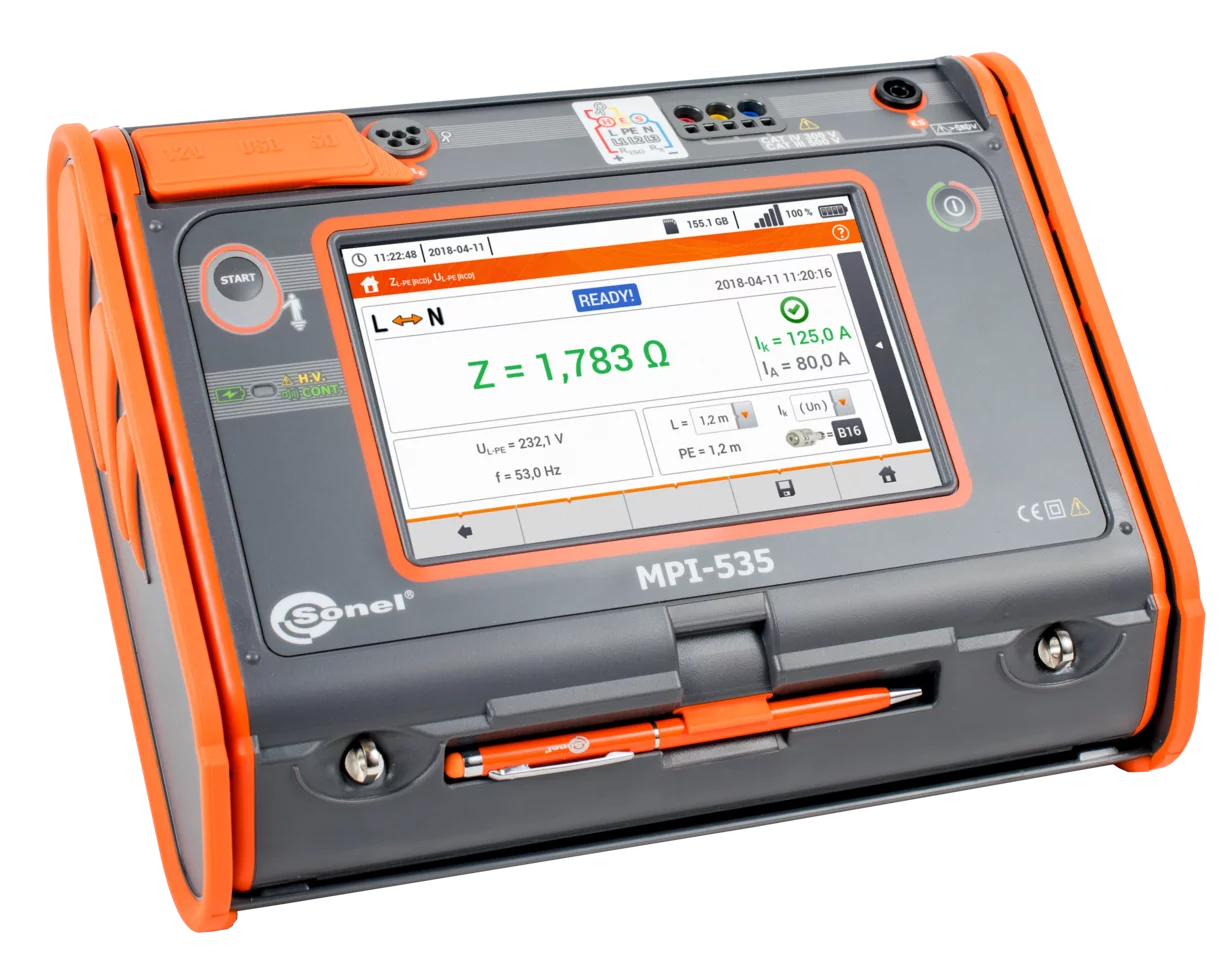

Multi-function meter of electrical system parameters MPI-535

Multi-function meter of electrical system parameters MPI-535-1

Multi-function meter of electrical system parameters MPI-535-2

Multi-function meter of electrical system parameters MPI-535-3

MPI-535
Multi-function meter of electrical system parameters

Name: Multi-function meter of electrical system parameters
Brand: Sonel
SKU: S68-WMGBMPI535
Availability: OutOfStock

Index cat. WMGBMPI535

ean 5907624028630

Ingress protection: IP 51

Measurement category: CAT III 500 V, CAT IV 300 V

Data transmission: Bluetooth, USB, Wi-Fi

Display: touchscreen, graphic, color, backlit

unavailable

Inquiry for an offer

N-1

Transmitting clamp (Φ=52 mm, incl. 2-wire c...

548,14 $

Available

AGT-16P

Three-phase socket adapter 16 A (5P)

94,92 $

Available

AGT-32P

Three-phase socket adapter 32 A (5P)

104,41 $

Available

AutoISO-1000C

Adapter for multi-core cables

365,43 $

Available

CS-1

Cable simulator

94,92 $

Available

Sonel Reports Plus

Software that supports creation of document...

Inquire

Test lead 10 m 1 kV (banana plugs) red

49,83 $

Available

Test lead for N-1 clamp

59,32 $

Available

Test lead 20 m CAT III/1000V CAT IV/600V (b...

54,58 $

Available

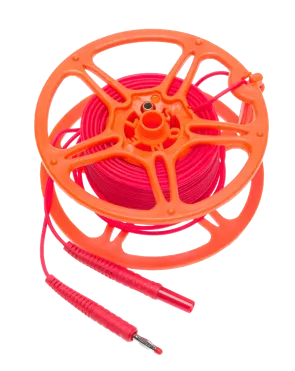

Test lead 25 m for earth resistance measure...

64,07 $

Available

The Sonel MPI-535 meter is designed for checking home and industrial electrical installations. The measurements that can be made, by using the device, provides the results which determine the safety of the installation. The instrument allows to make a set of measurements of the parameters of protection against electric shock using a single universal device.

Significant automation of measurements of the meter makes possible to test functioning of residual current circuit breakers in the Auto mode, as well as in pre-programmed measuring sequences (so-called auto-tests), which can also be extended with own sequences. Automatic measurement of insulation resistance of 3-, 4- and 5-wire conductors is possible by using additional the AutoISO-1000C adapter.

Maximum functionality in a minimum price

The largest touch screen on the market (7”) – remarkable ergonomics and ease of use
Removable microSD memory card – easy increase of memory capacity
Li-Ion battery – longer operation of the meter
Measurement of all parameters related to earthing and protection against electric shock – one device instead of several
Quick measurement of the fault loop impedance in networks secured with RCD without triggering (up to several seconds) – time saver
Auto measurements – the ability to perform automatic measurements in sequence – simplified measurements
Fast path from measurements to report – time saver

Features

The meter offers a wide range of functionalities. It combines the measuring capabilities of several devices, while ensuring equally good accuracy.

MPI-535 can be used for all measurements for commissioning of electrical installations in accordance with applicable regulations:

short circuit loop impedance (also in circuits secured with RCDs),
RCD parameters,
insulation resistance,
earth resistance (4 measurement methods + soil resistivity measurement),
continuity of protective and equipotential bondings,
light intensity measurement,
phase sequence test,
motor rotation direction test.

Automatic installation safety test

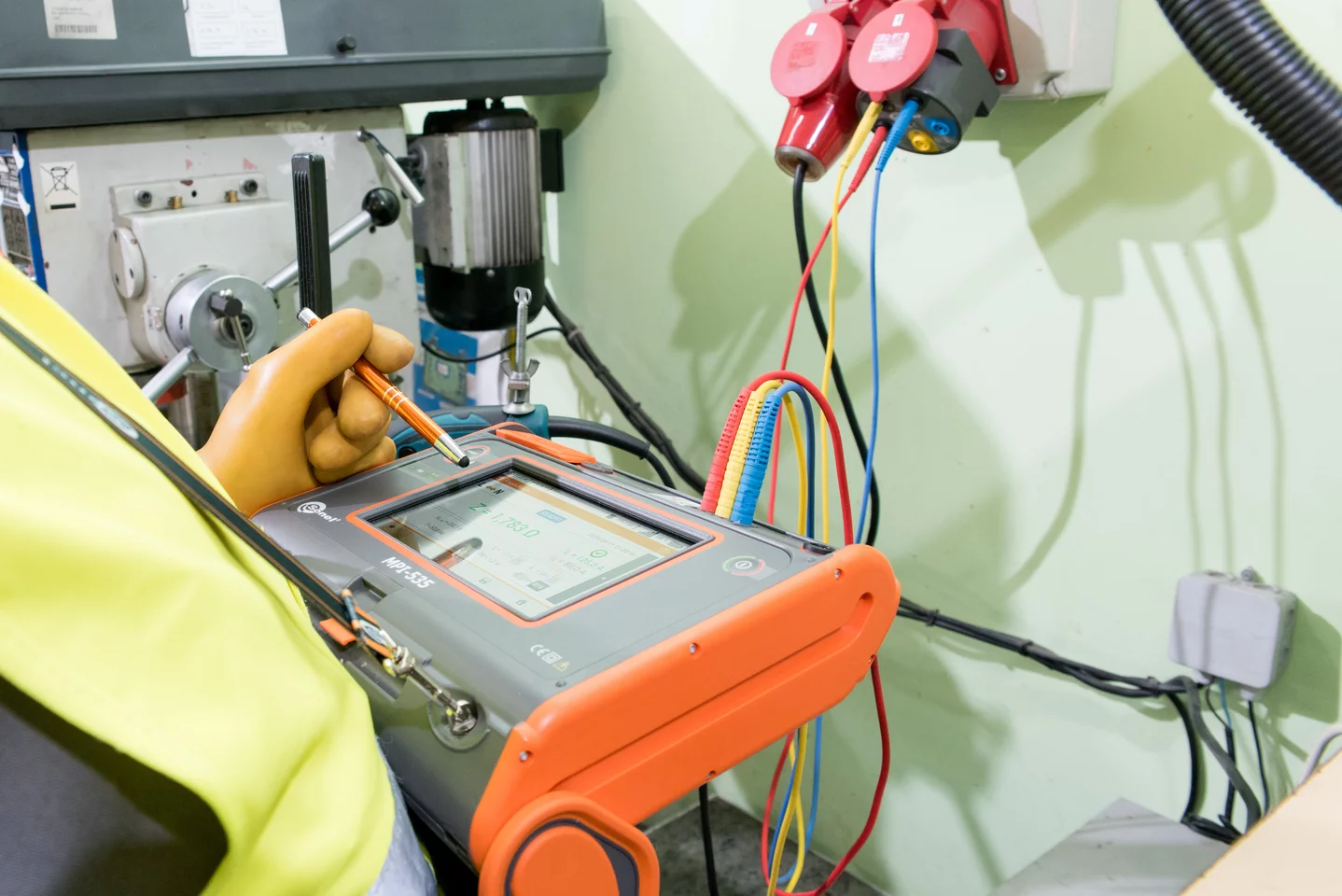

MPI-535 allows safety control of residential, commercial and industrial electrical installations. Measurements can be easily automated with:

auto mode of residual current devices (RCD) tests,
auto measurements – freely configurable measuring sequences,
AutoISO-1000C adapter for automatic insulation resistance test of 3-, 4- and 5-conductor cables, without switching.

Ease of reading

The device is equipped with a color TFT LCD touch screen with a resolution of 800x480 pixels and a diagonal of 7”, which allows for convenient operation and easy reading of parameters and plotted waveforms. This screen size enables displaying more information, available at any time of use. The interface is visible in all conditions – also thanks to the appropriate size of displayed symbols. Included stylus allows to work also with dielectric gloves.

Built-in help system

The device has built-in help screens with measurement diagrams. Thanks to this you can easily and quickly check and make sure how to connect to a given system depending on the type of performed measurement.

Increased resistance to environmental conditions

The meter will cope well in difficult environmental conditions. Protection against penetration of dust and water is ensured by a unique housing with a level of protection IP51. It is resistant to mechanical damage, and a special design allows you to easily protect the touch screen by shielding using the cover of the meter. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in different positions.

Communication and software

A very strong feature of the device is the multitude of communication interfaces and cooperation with external software. You can easily transfer measurement data to your computer via USB port, removable SD memory card, or wireless communication (Bluetooth, Wi-Fi ).

In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.

Measurement functions	Measurement range	Display range	Resolution	Accuracy
Fault loop impedance
Fault loop Z_L-PE, Z_L-N, Z_L-L	0.13 Ω…1999.9 Ω acc. to IEC 61557	0.00 Ω…1999 Ω	from 0.001 Ω	±(5% m.v. + 30 digits)
Fault loop Z_L-PE in RCD mode	from 0.50 Ω…1999 Ω acc. to IEC 61557	0.00 Ω…1999 Ω	from 0.01 Ω	from ±(6% m.v. + 5 digits)
Measurements of RCD parameters
RCD tripping test and measurement of tripping time t_A measuring current 0.5 I_Δn, 1 I_Δn, 2 I_Δn, 5 I_Δn
general and short-time delay RCD	0 ms…300 ms	0 ms…300 ms	1 ms	from ±(2% m.v. + 2 digits)
selective RCD	0 ms…500 ms	0 ms…500 ms	1 ms	from ±(2% m.v. + 2 digits)
Measurement of RCD tripping current I_A measuring current 0 0.2 I_Δn…2.0 I_Δn
for sinusoidal residual current (AC type)	3.3 mA…1000 mA	3.3 mA…1000 mA	from 0.1 mA	±5% I_Δn
for unidirectional residual current and unidirectional with the 6 mA DC bias (type A)	3.5 mA…700 mA	3.5 mA…700 mA	from 0.1 mA	±10% I_Δn
for direct residual current (type B))	2.0 mA…1000 mA	2.0 mA…1000 mA	from 0.1 mA	±10% I_Δn
Earth resistance
3- and 4-pole method	from 0.50 Ω…1.99 kΩ acc. to IEC 61557-5	0.00 Ω…1,99 kΩ	from 0.01 Ω	from ±(2% m.v. + 3 digits)
3-pole + clamp method	0.00 Ω…1.99 kΩ	0.00 Ω…1.99 kΩ	from 0.01 Ω	from ±(2% m.v. + 4 digits)
2-clamp method	0.00 Ω…99.9 kΩ	0.00 Ω…99.9 kΩ	from 0.01 Ω	from ±(10% m.v. + 4 digits)
Resistance-to-earth	0.0 Ω m…99.9 kΩm	0.0 Ωm…99.9 kΩm	from 0.1 Ωm	Depending on accuracy of R_E measurement
Insulation resistance
Measuring voltage 50 V	50 kΩ…250 MΩ acc. to IEC 61557-2	0 kΩ…250 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 100 V	100 kΩ…500 MΩ acc. to IEC 61557-2	0 kΩ…500 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 250 V	250 kΩ…999 MΩ acc. to IEC 61557-2	0 kΩ…999 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 500 V	500 kΩ…2.00 GΩ acc. to IEC 61557-2	0 kΩ…2.00 GΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 1000 V	1000 kΩ…4.99 GΩ acc. to IEC 61557-2	0 kΩ…9.99 GΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Resistance of protective conductors and equipotential bondings
Measurement of resistance of protective conductors and equipotential bondings with ±200 mA current	0.12 Ω…400 Ω acc. to IEC 61557-4	0.00 Ω…400 Ω	from 0.01 Ω	±(2% m.v. + 3 digits)
Measurement of resistance with low current	0.0 Ω…1999 Ω	0.0 Ω…1999 Ω	from 0.1 Ω	±(3% m.v. + 3 digits)
Light intensity
Measurement in luxes (lx)	0 lx…399.9 klx	0 lx…399.9 klx	from 0.001 lx	from ±(2% m.v. + 5 digits)
Measurement in feet-candles (fc)	0 fc…39.99 kfc	0 fc…39.99 kfc	from 0.001 fc	from ±(2% m.v. + 5 digits)
Phase sequence indication	in the same direction (correct), opposite direction (incorrect), U_L-L voltage: 95 V…500 V (45 Hz…65 Hz)
