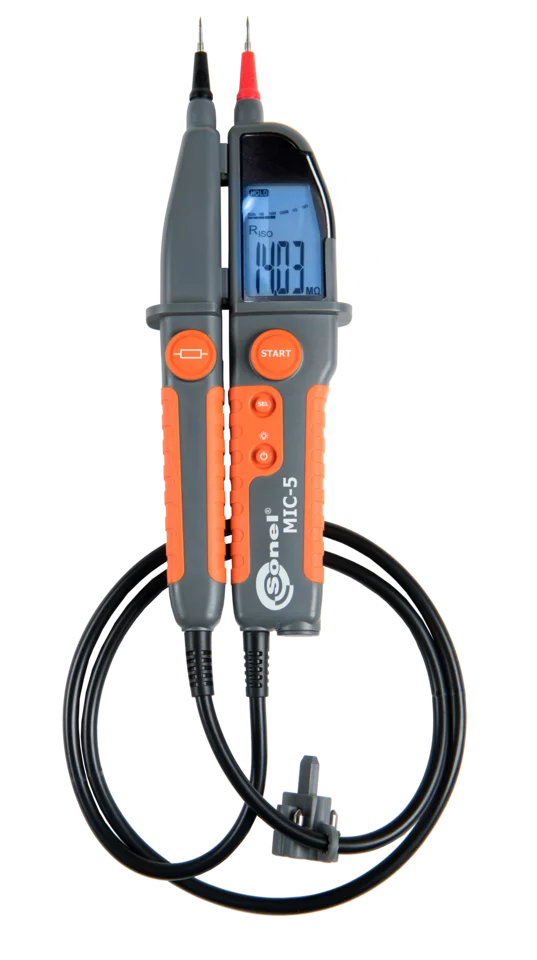

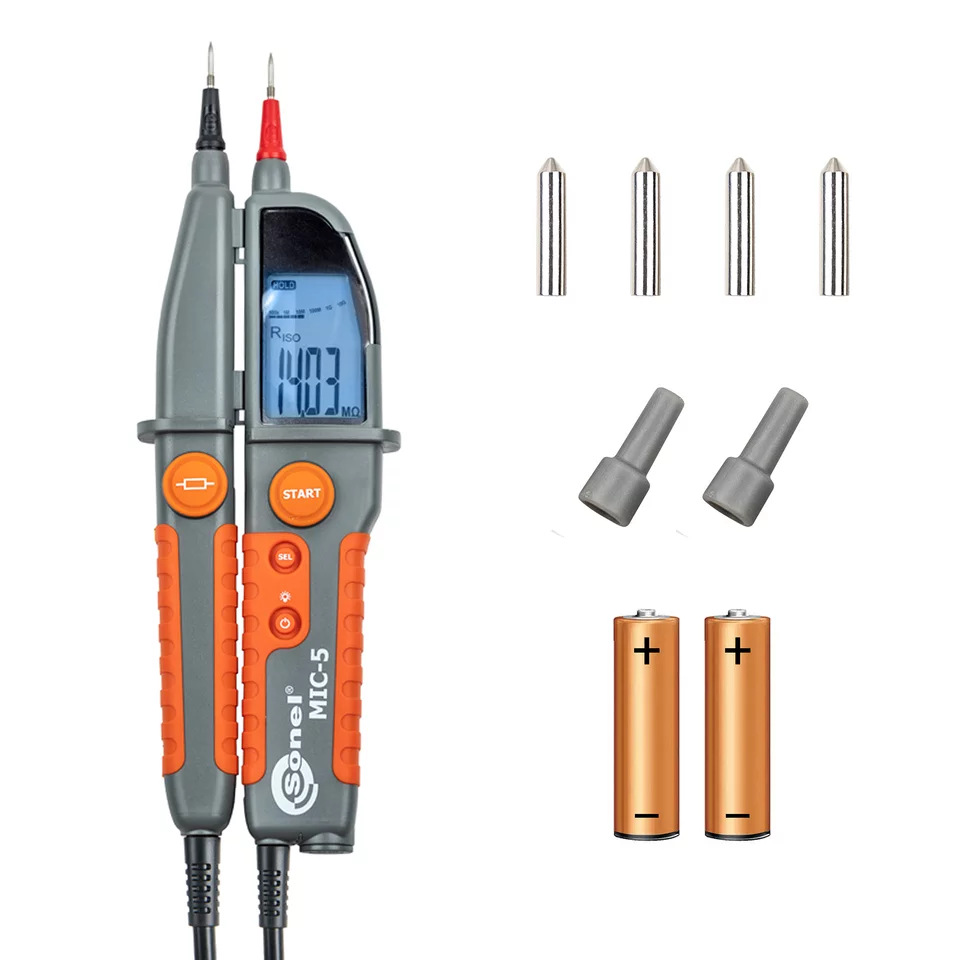

MIC-5
Insulation resistance meter

Index cat. WMGBMIC5

ean 5907624004528

Ingress protection: IP 65

Measurement category: CAT III 1000 V, CAT IV 600 V

Display: monochrome, backlit, segmented

376,00 $

In stock

Delivery: 24h

Inquiry for an offer

CS-1

Cable simulator

94,92 $

Available

CS-5kV

Calibration box

422,38 $

Available

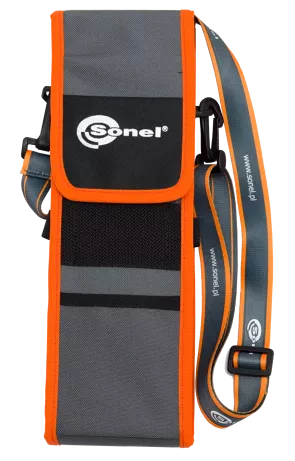

S-2

Carrying case

35,59 $

Available

K-01

Crocodile clip, black, 1 kV, 20 A

18,98 $

Available

K-02

Crocodile clip, red, 1 kV, 20 A

18,98 $

Available

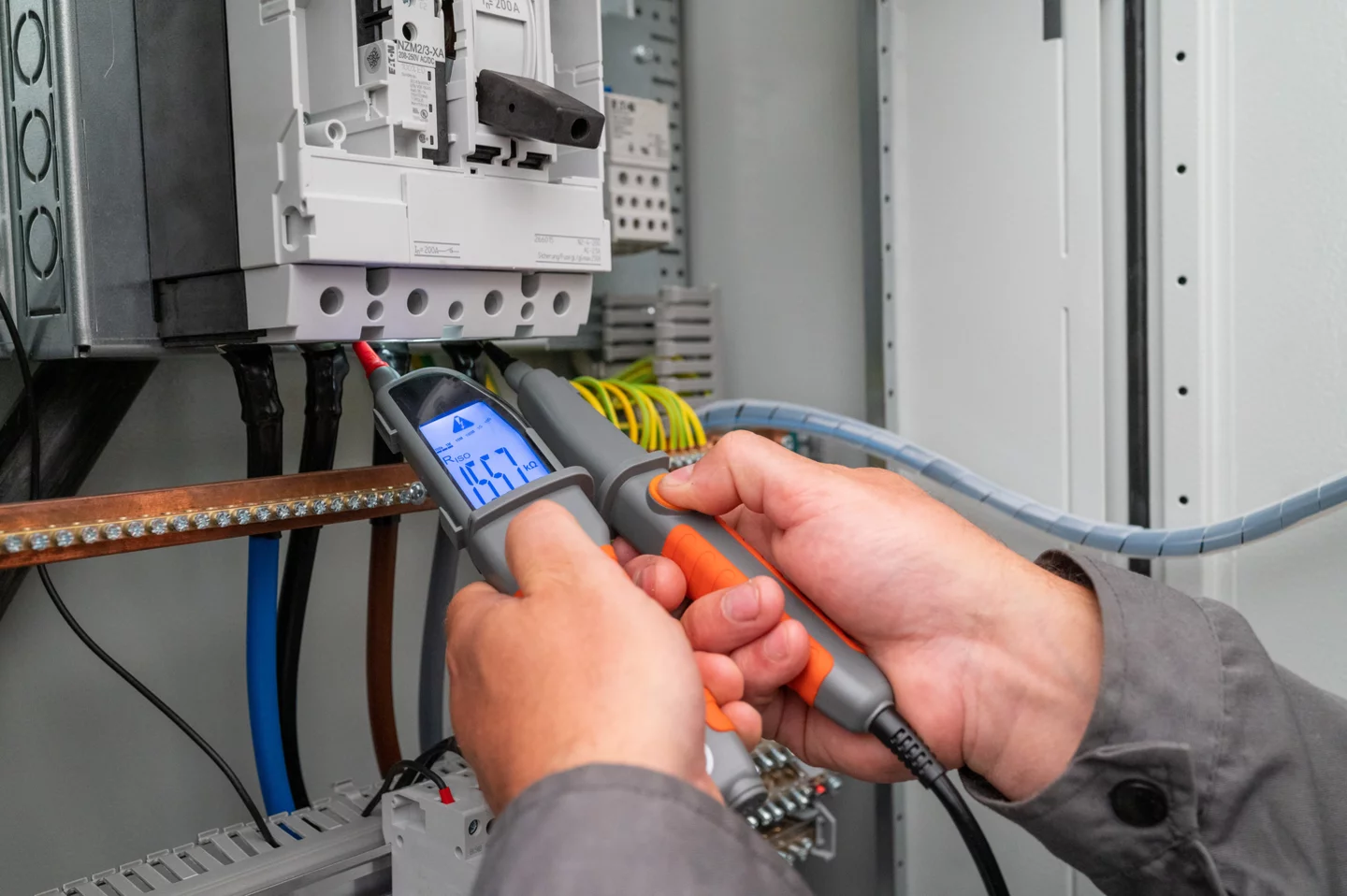

Handy in insulation resistance measurements

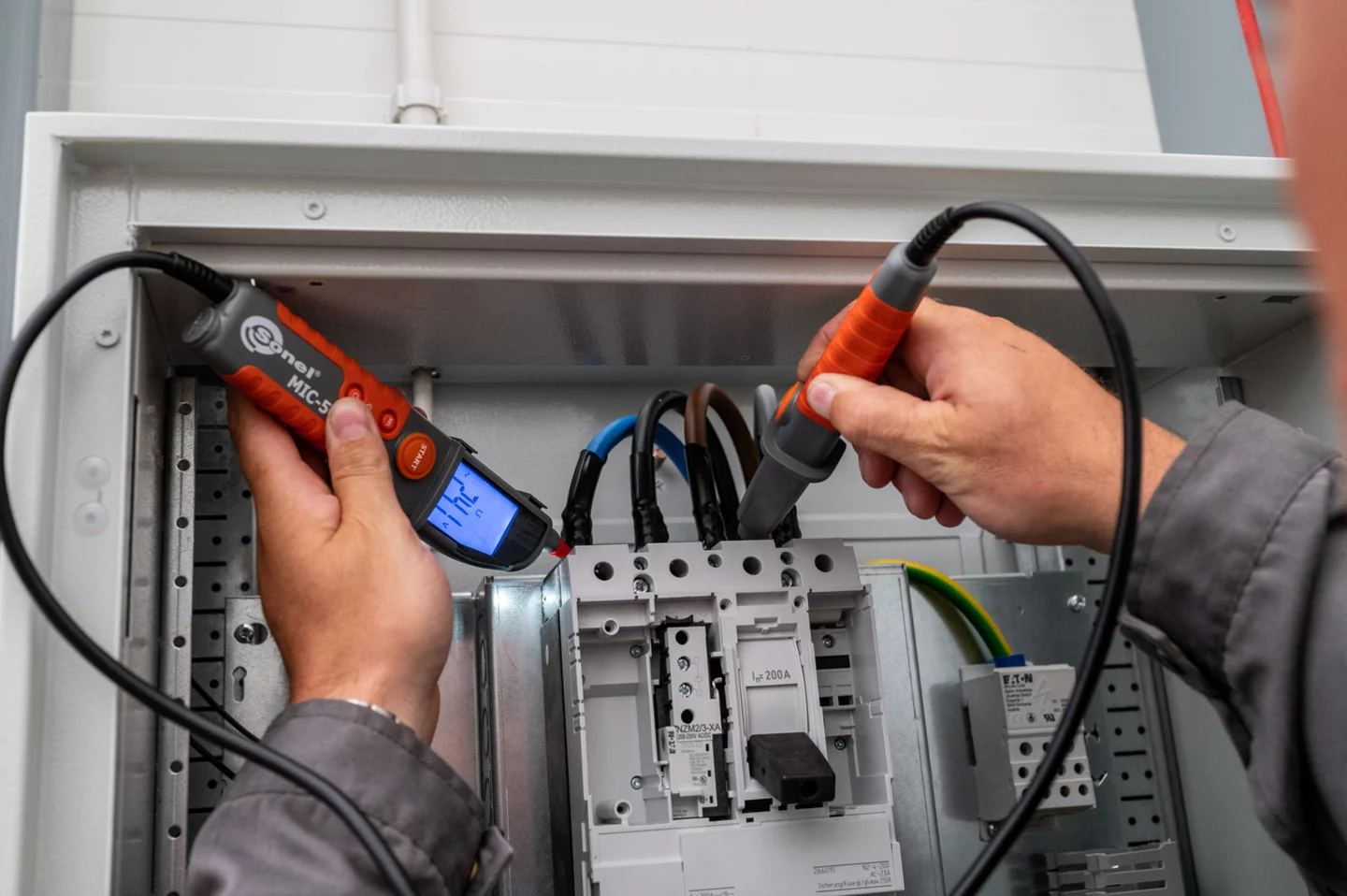

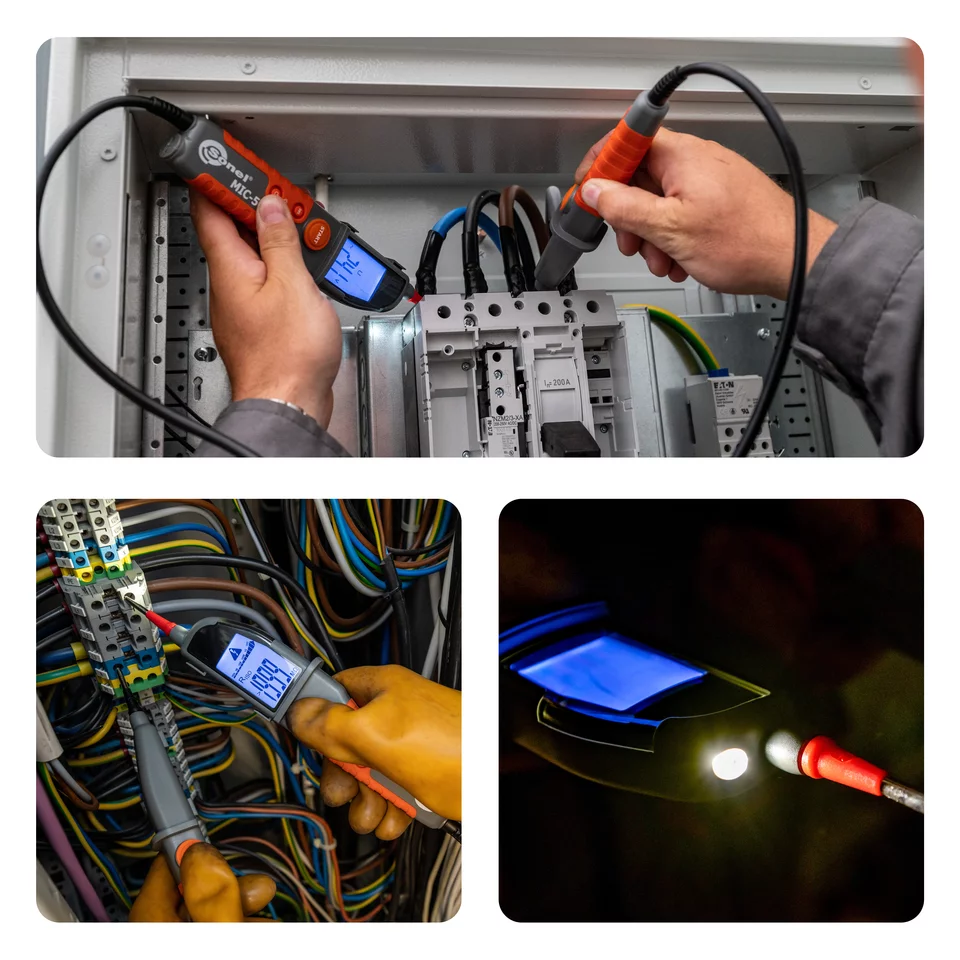

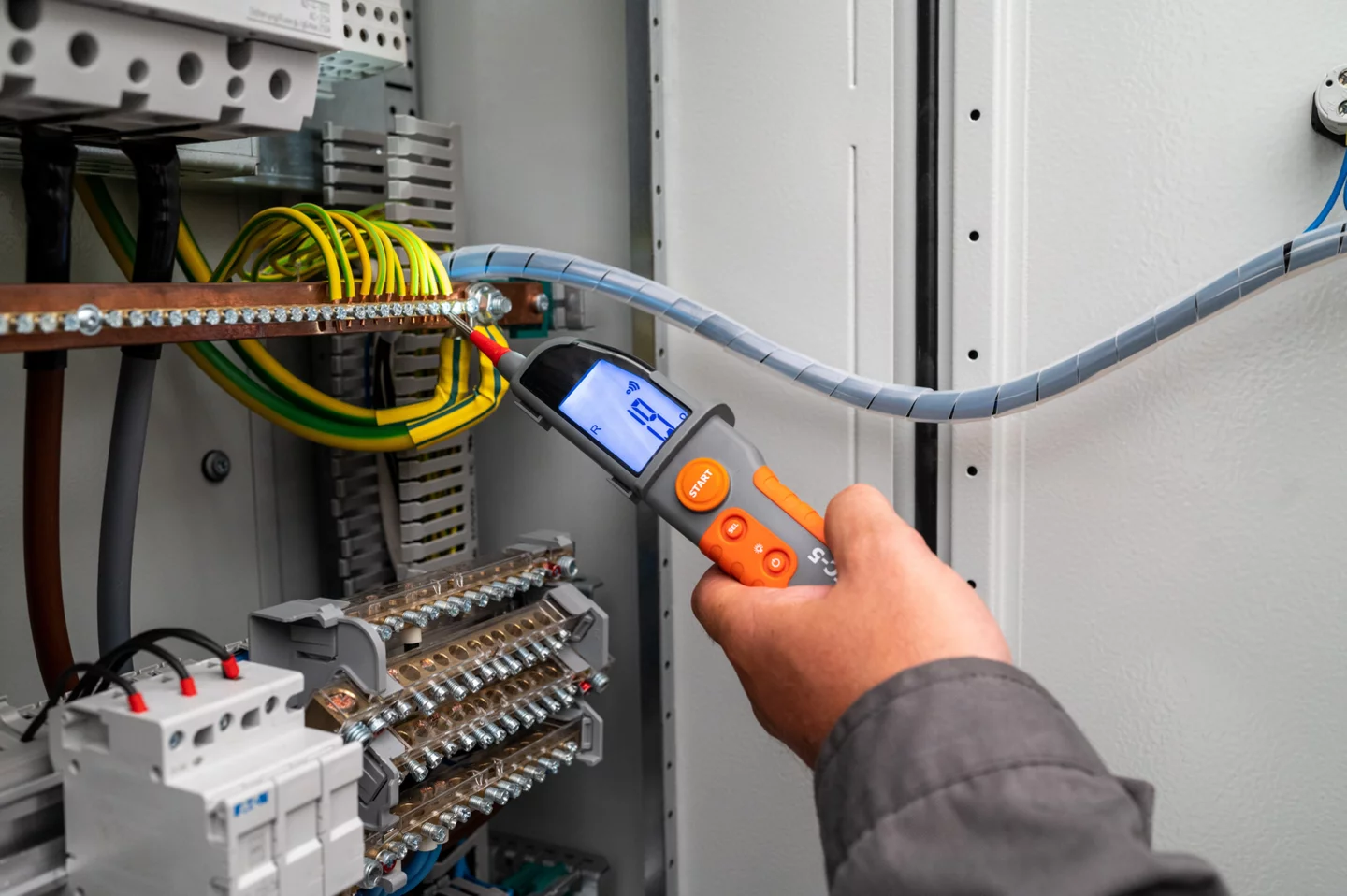

The MIC-5 is a handy insulation resistance meter that any self-respecting electrician can sling around his neck like a doctor's stethoscope in order to always have it at hand. The instrument allows for simple and quick insulation evaluation, checking continuity of connections and measuring voltage on the object.

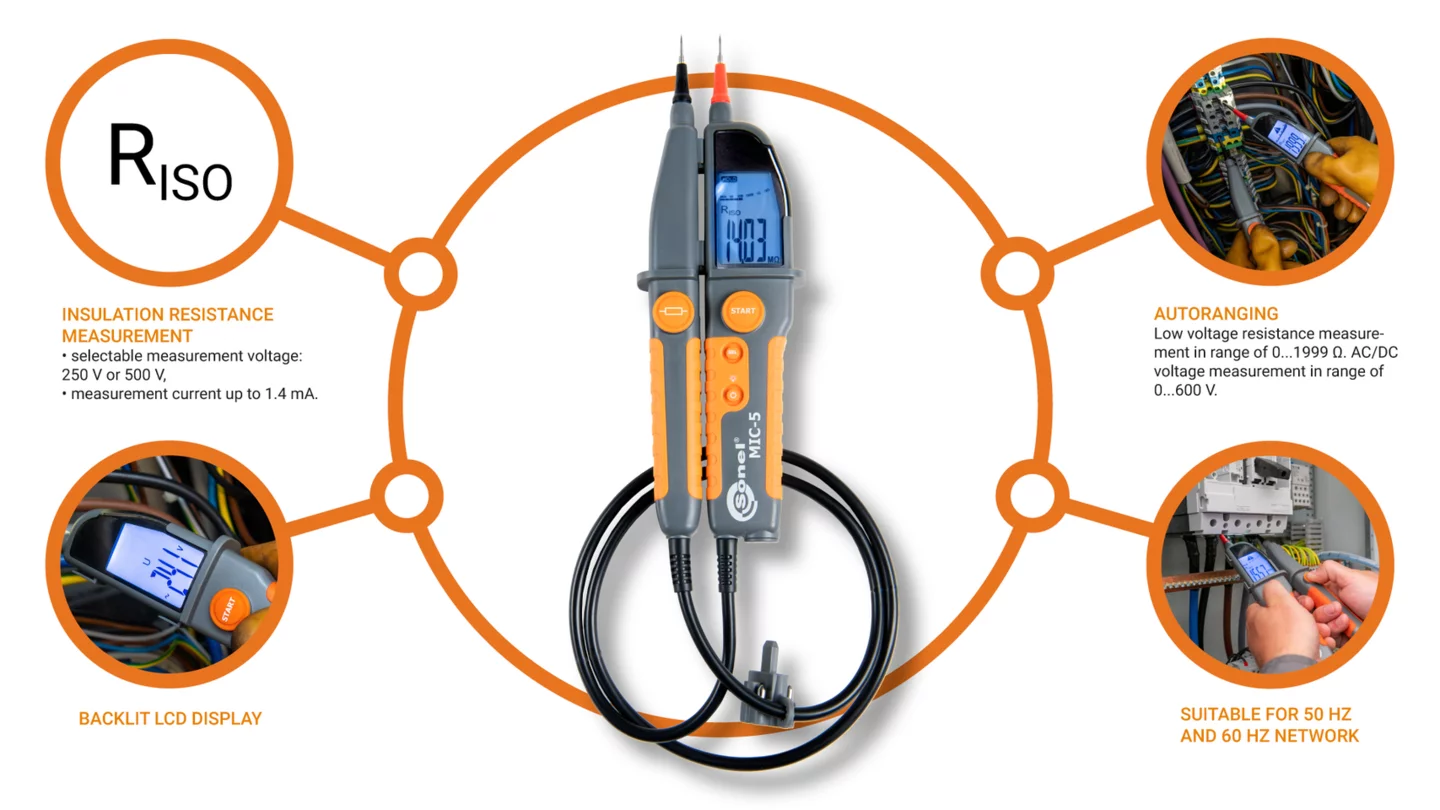

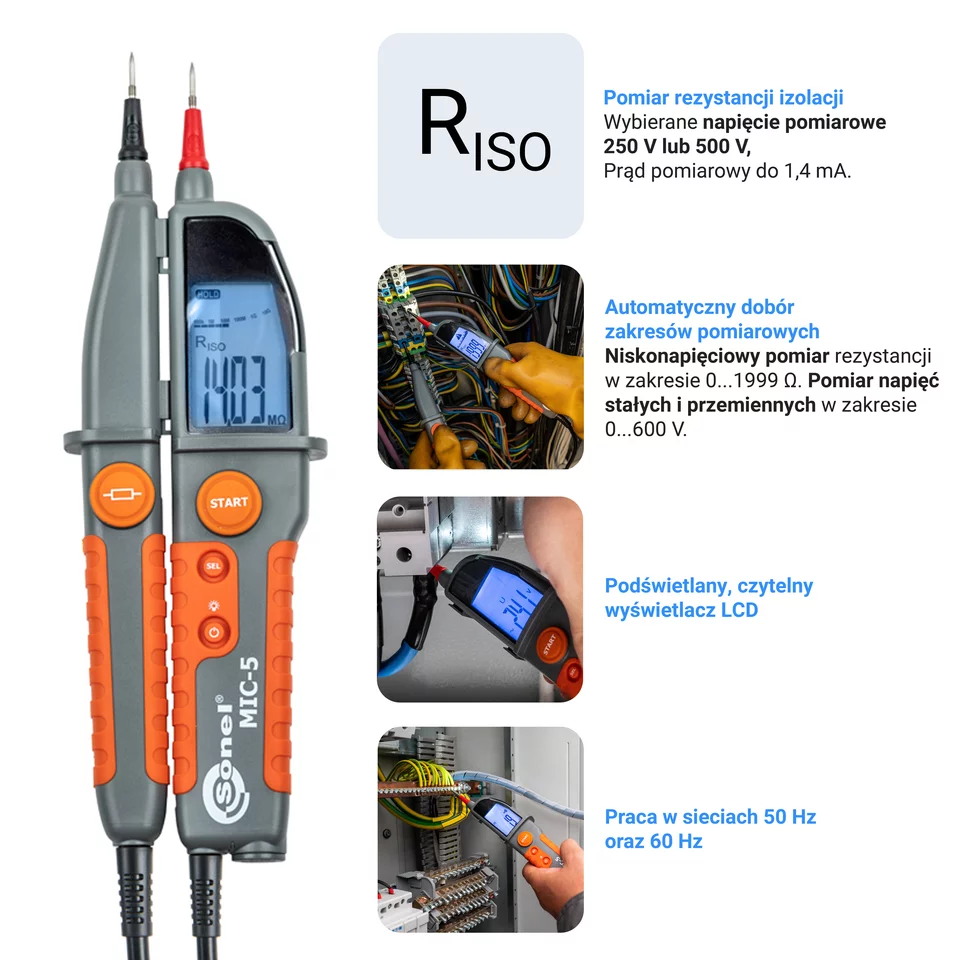

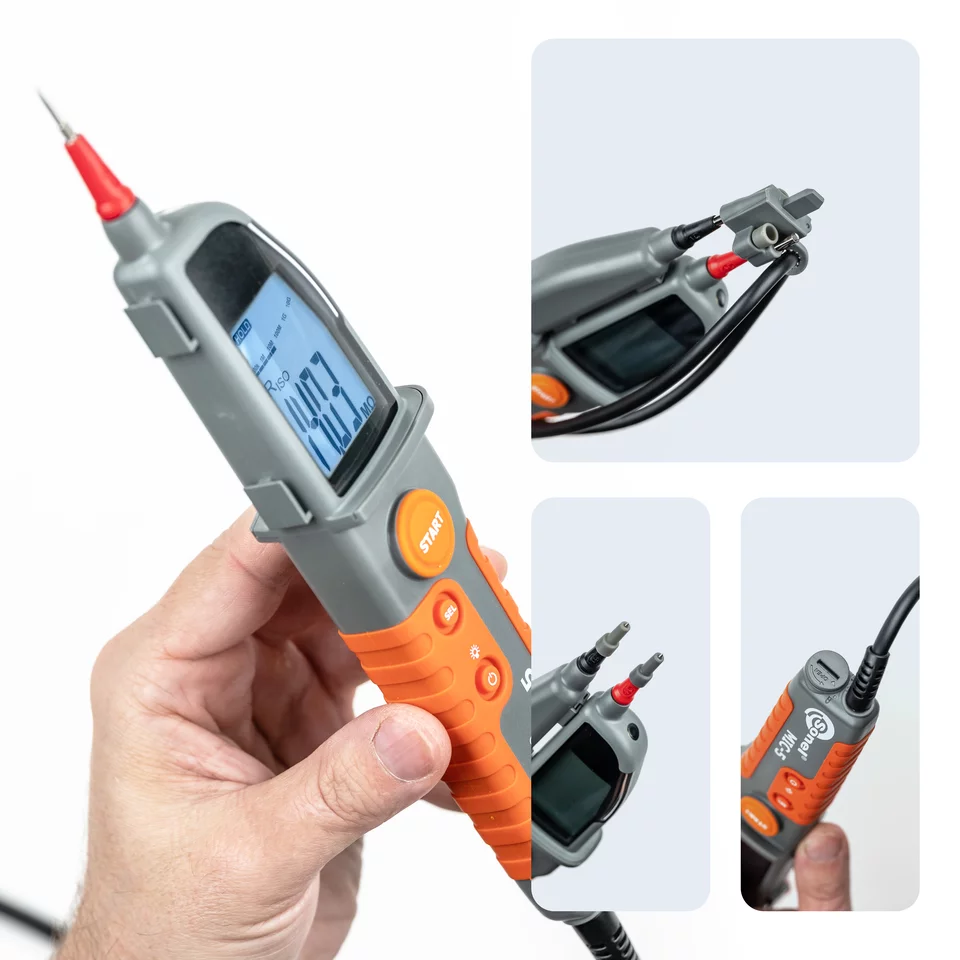

Features

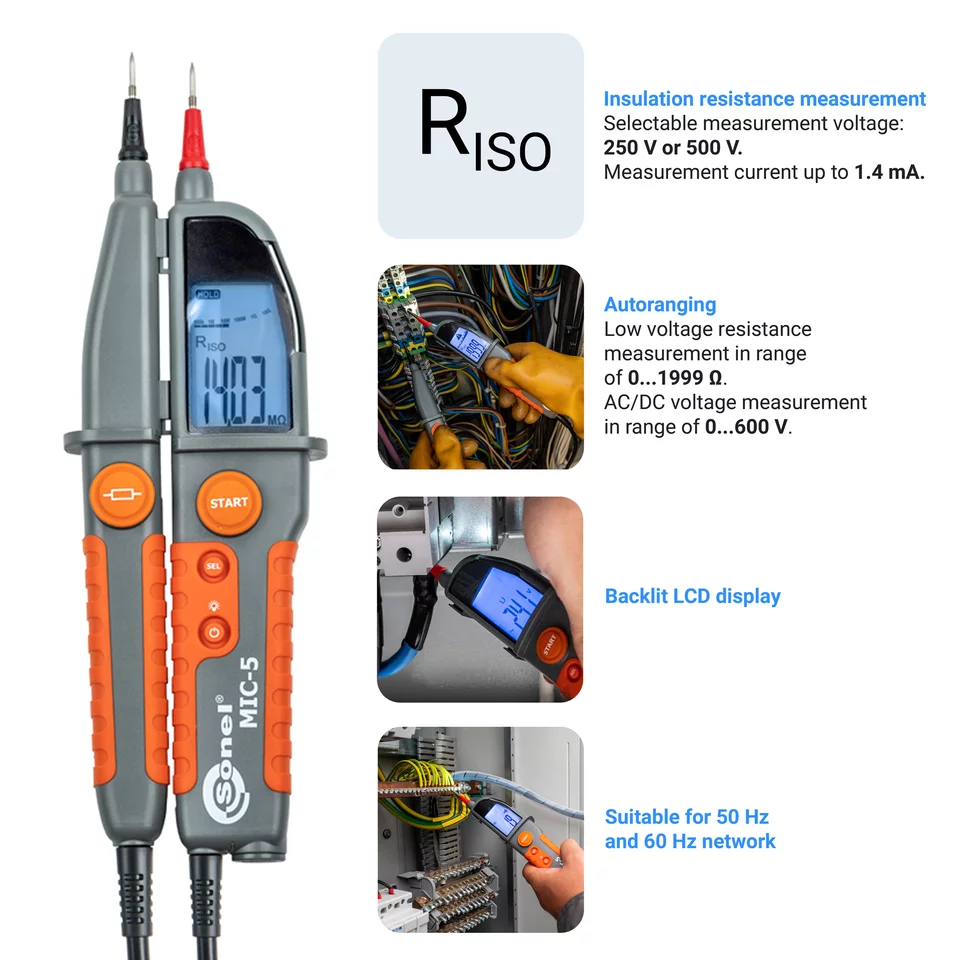

Insulation resistance measurement:
- selectable measurement voltage: 250 V or 500 V,
- continuous indication of measured resistance,
- very long operation time with one set of batteries: 14 h for measurement at U_ISO = 250 V, 11 h for U_ISO = 500 V,
- automatic discharge of tested object’s capacitance after measurement of insulation resistance,
- acoustic determination of 5 seconds time intervals that facilitates to take time characteristics during insulation resistance measurement,
- measurement current up to 1.4 mA,
- protection against measurement of live objects.

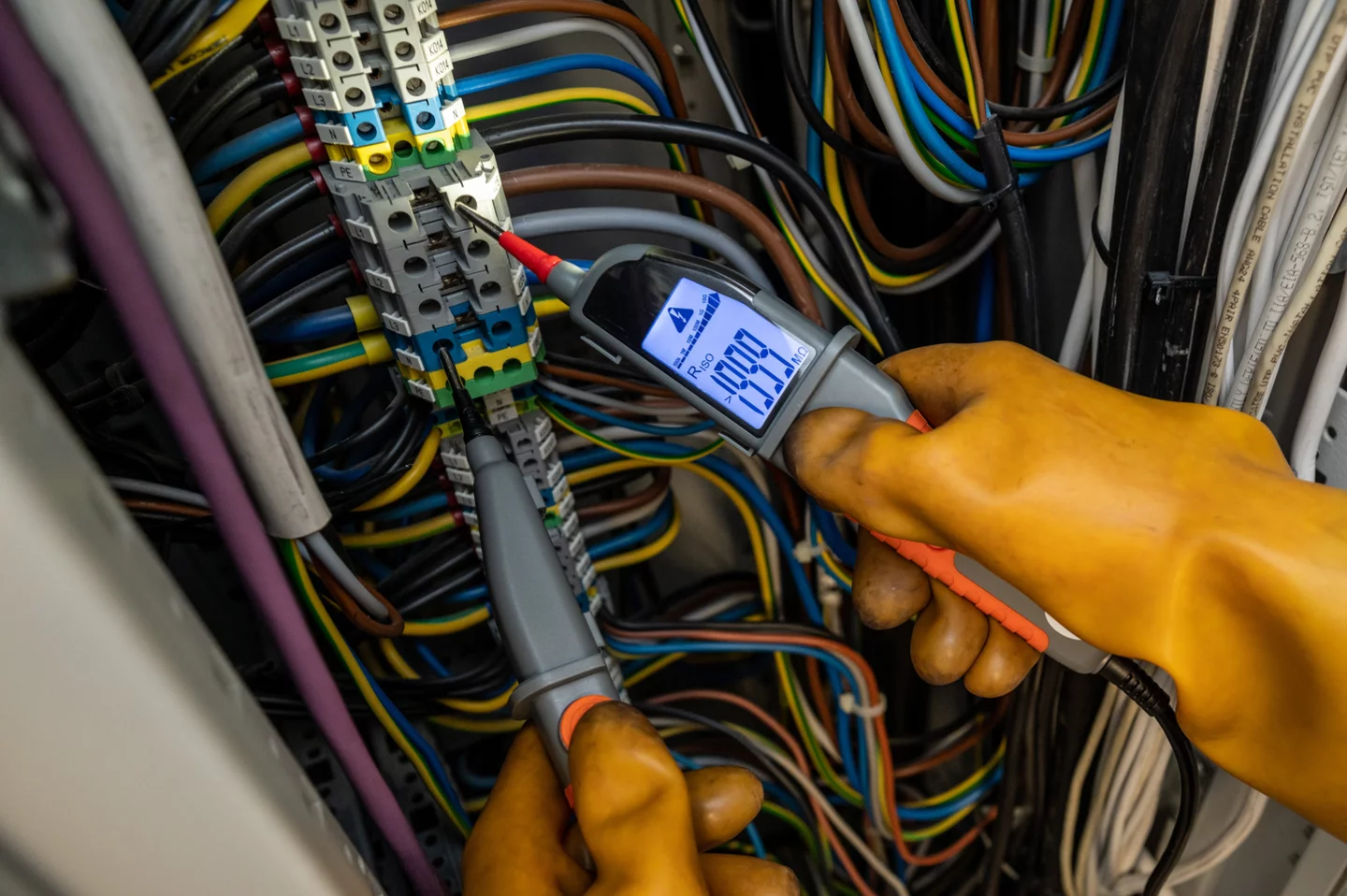

Low voltage resistance measurement in range of 0...1999 Ω:
- measurement with current of <10 mA with resolution of 0,1 Ω,
- quick acoustic signalling for circuit resistance below 10 Ω.

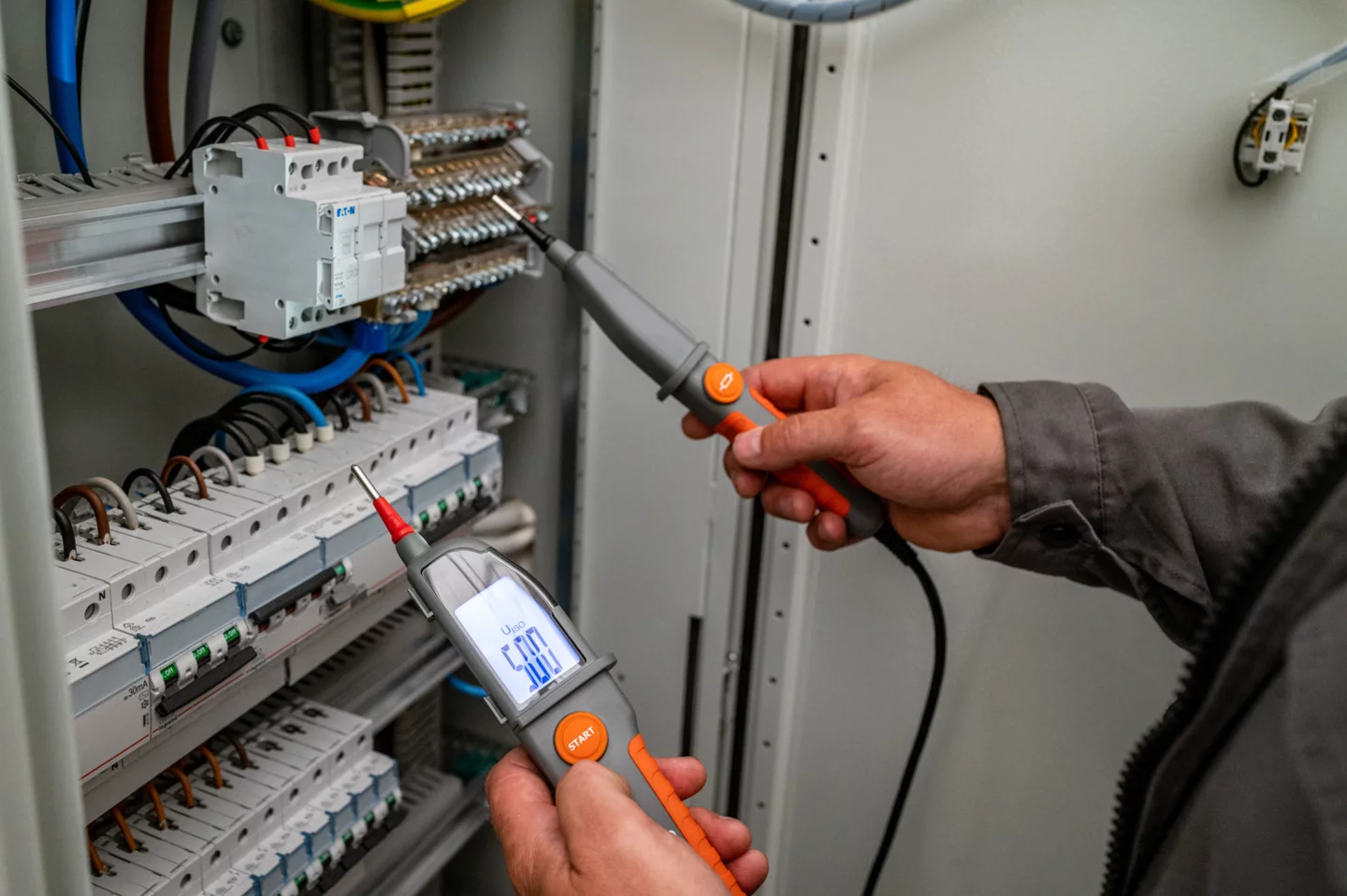

AC/DC voltage measurement in range of 0...600 V:
- automatic detection of voltage type (AC/DC).
Autoranging.
Suitable for 50 Hz and 60 Hz network.
Backlit LCD display.
AUTO-OFF function.

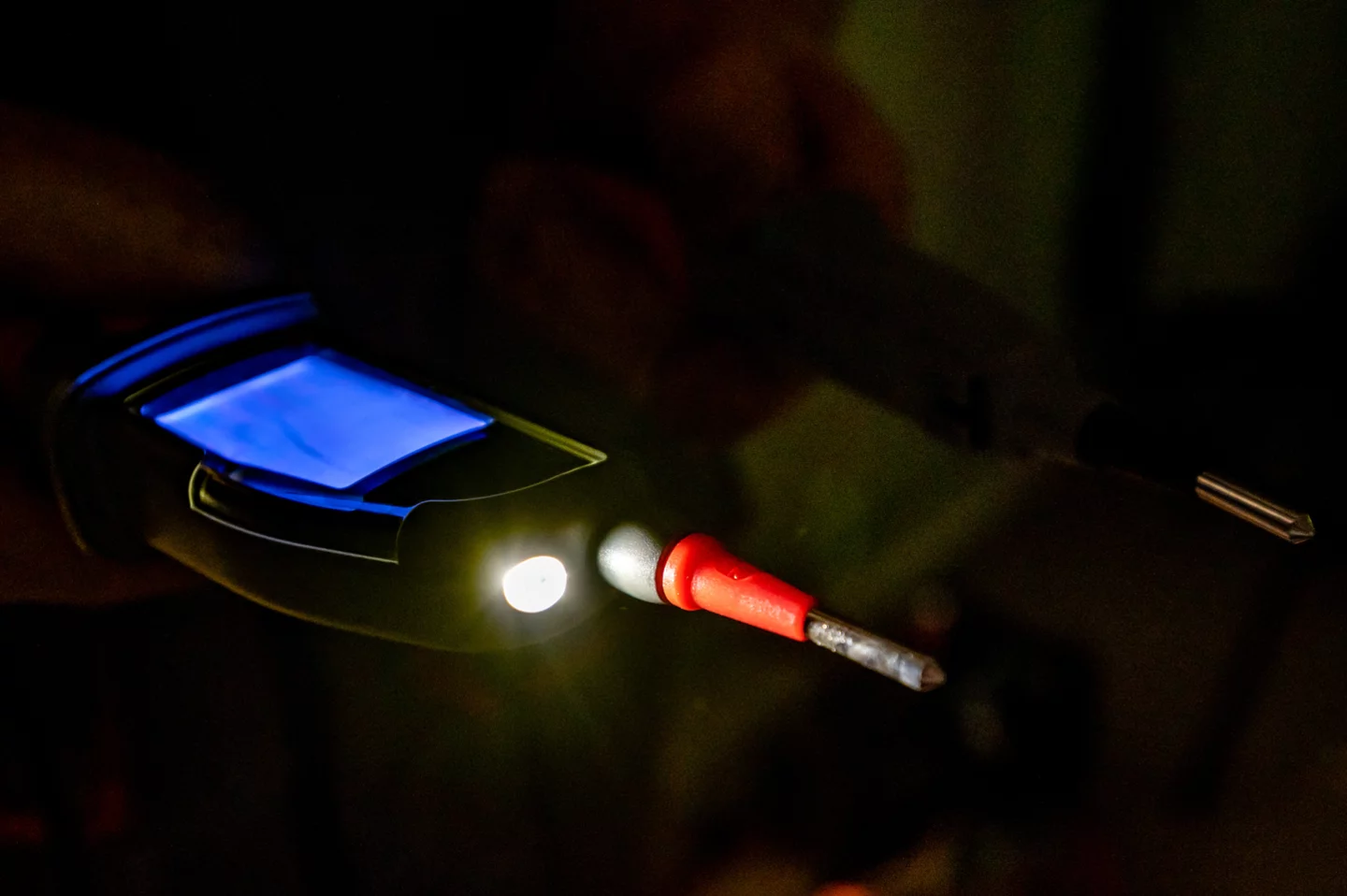

Built-in flashlight.
Meter meets the requirements of the standard IEC 61557-1 and IEC 61557-2.

Technical specifications

Measurement functions	Measurement range	Display range	Resolution	Accuracy
AC/DC voltage	0 V…600 V	0 V…600 V	1 V	±(3% m.v. + 2 digits)
Insulation resistance
Measuring voltage 250 V	250 kΩ…1000 MΩ acc. to IEC 61557-2	1 kΩ…1000 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 500 V	500 kΩ…1999 MΩ acc. to IEC 61557-2	1 kΩ…1999 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)
Connection resistance measurement	0,0 Ω…1999 Ω	0,0 Ω…1999 Ω	from 0,1 Ω	±(4% m.v. + 3 digits)

“m.v.” - measured value

Other technical data

Safety and work conditions

Measuring category according to EN 61010: IV 600 V, III 1000 V
ngress protection: IP65
Type of insulation according to EN 61010-1 and IEC 61557: podwójna
Power supply: 2 x AAA 1.5 V battery, 2 x NiMH AAA 1.2 V rechargeable battery
Operating temperature: 0…+40°C
Storage temperature: -20…+70°C
Humidity: 20…90%
Nominal temperature: 23 ± 2°C
Wilgotność odniesienia: 40%…60%

Other information

Quality standard – development, design and production: ISO 9001
The product meets the EMC (emission for industrial environment) requirements according to standards : IEC 61326-1, IEC 61326-2-2

Weight and dimensions

Parameter	Value
Net weight (kg)	0.2
Package weight (kg)	0.3
Package width (cm)	9.2
Package height (cm)	33
Package length (cm)	5.5

Additional accessories

CS-1

Cable simulator

NO. CAT. WAADACS1

Available

Delivery: up to 4 days

94,92 $

CS-5kV

Calibration box

NO. CAT. WAADACS5KV

Available

Delivery: up to 4 days

422,38 $

S-2

Carrying case

NO. CAT. WAFUTS2

Available

Delivery: up to 4 days

35,59 $

K-01

Crocodile clip, black, 1 kV, 20 A

NO. CAT. WAKROBL20K01

Available

Delivery: up to 4 days

18,98 $

K-02

Crocodile clip, red, 1 kV, 20 A

NO. CAT. WAKRORE20K02

Available

Delivery: up to 4 days

18,98 $
