Measure insulation resistance up to 100 GΩ

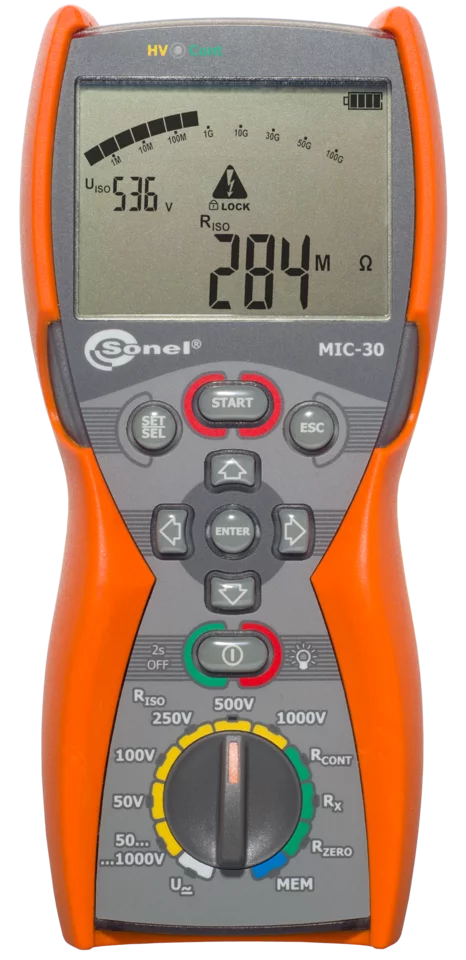

The Sonel MIC-30 insulation resistance meter is a perfect response to the expectations of users who deal with the testing of insulation of electrical installations in a repeated manner, e.g. in single- and multi-family buildings, as well as in public utility buildings and small plants and workshops. The device enables the setting of the measurement voltage within the range from 50 V to 1000 V in 10 V steps, which makes it perfect for diagnosing electrical, control, telecommunications and ICT facilities.

Main features

measurement of insulation resistance up to 100 GΩ thanks to max 1000 V measurement voltage
designed for harsh environmental conditions conditions – IP67 ingress protection
excellent for repeatable measurements – memory of 12,000 records and UNI-Schuko adapter for sockets
allows for testing electrical continuity – R_CONT 200 mA function
checking start capacitors in motors thanks to capacity measurement function

…and much more

measurement voltage selected from: 50, 100, 250, 500, 1000 V or freely configurable within the range of 50…1000 V in steps of 10 V
continuous reading of measured insulation resistance or leakage current
automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement
sound signalling of five-second time intervals, facilitating capture of time characteristics
timing of measurement times T₁, T₂ and T₃ for measurement of one or two absorption coefficients, within the range of 1… 600 seconds
readings of actual measurement voltage during measurement
protection against measurement of live objects
three-lead measurement – additional lead GUARD
capacitance measurement during measurement of R_ISO
low-voltage measurement of circuit continuity and resistance
continuity test of protective conductors and equipotential bonding with current I_ISO≥200 mA flowing in two directions in compliance with EN 61557-4
measurement of direct and alternating voltages within the range of 0…600 V

Application

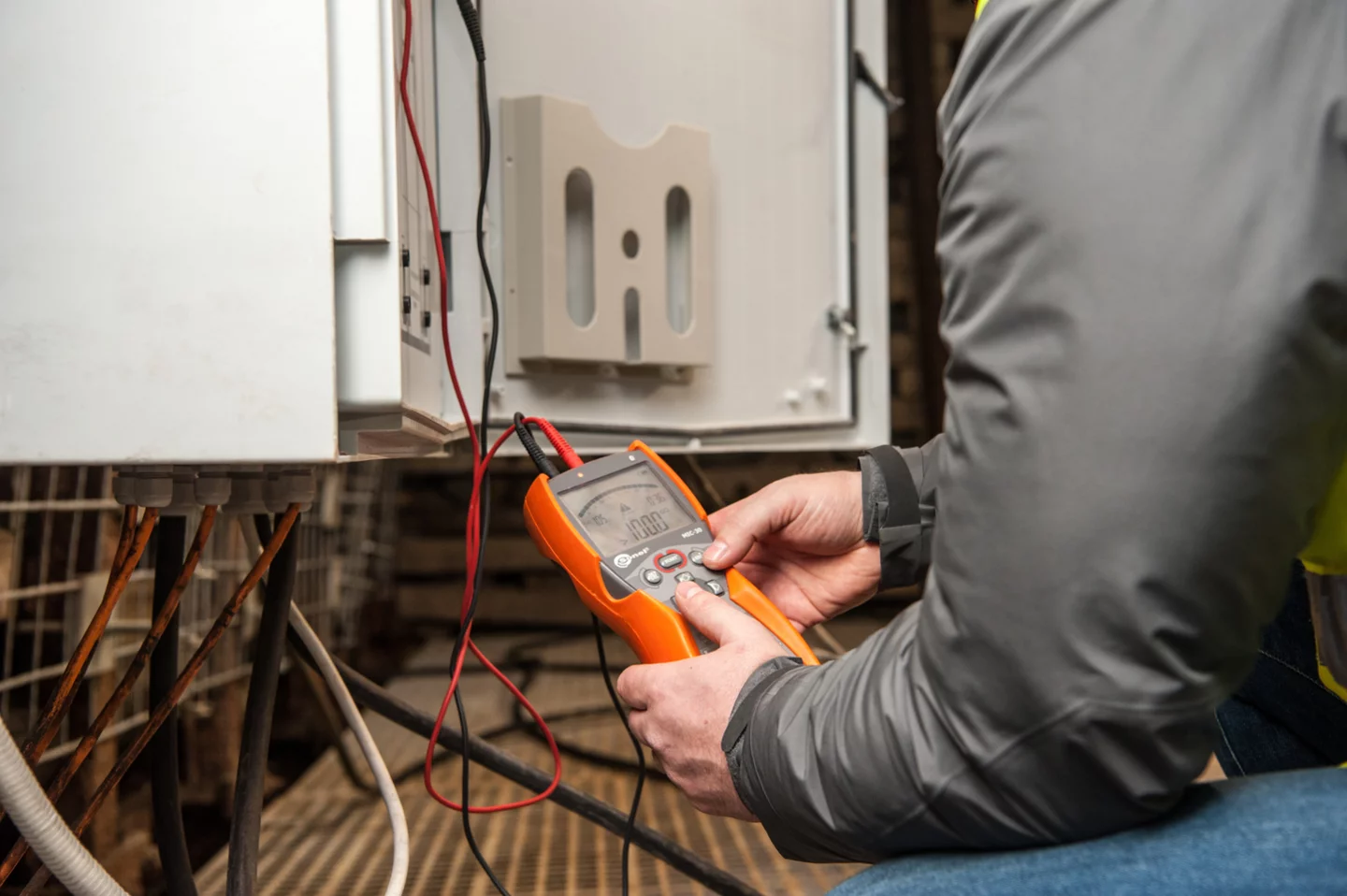

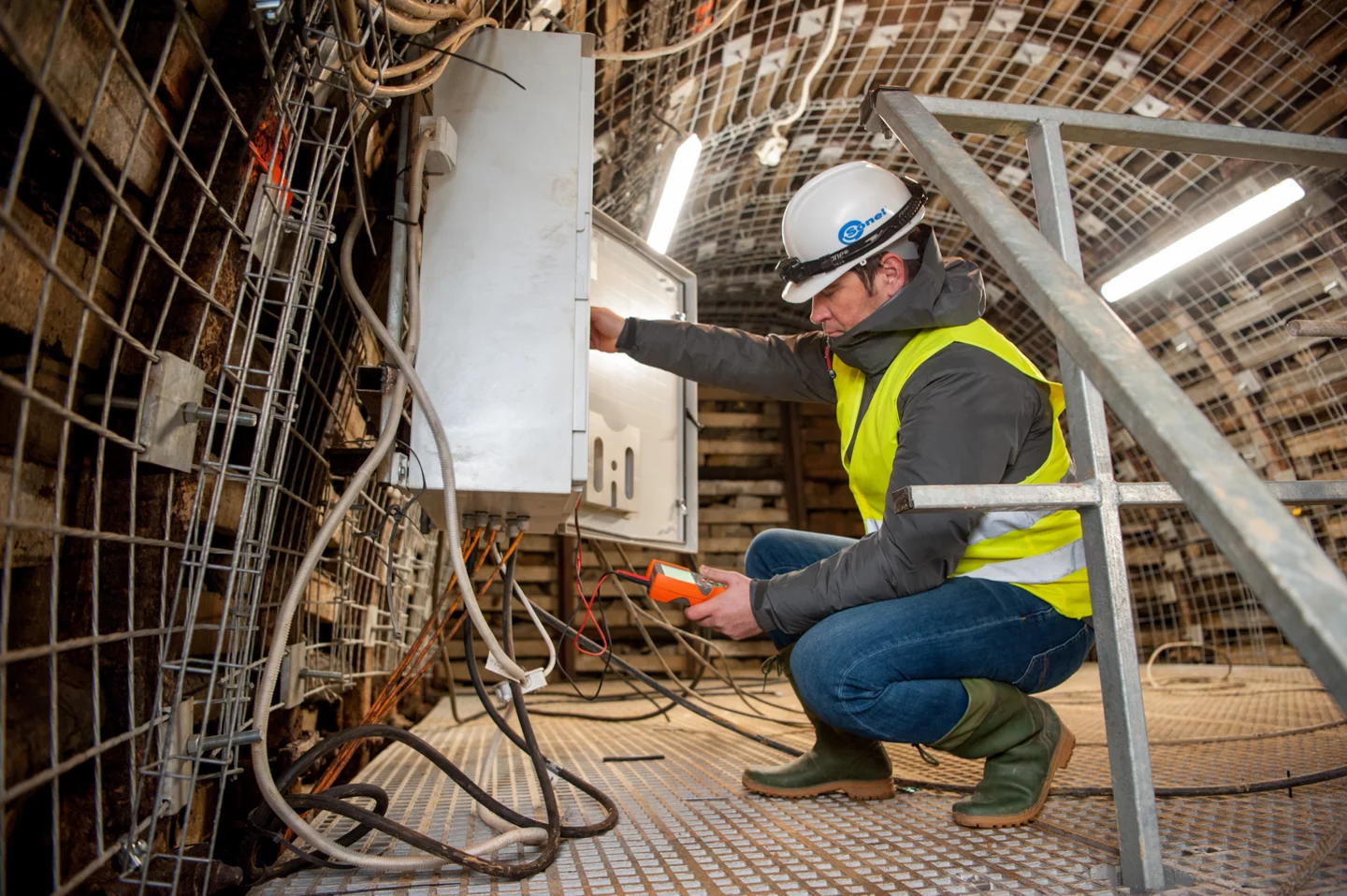

MIC-30 insulation resistance meter is perfectly suited for the needs of all users, who often examine the condition of electrical systems in single- and multi-family buildings as well as in public buildings and in small workshops or factories. With its test voltage settings from 50 V to 1000 V (in 10 V steps), the device is perfect for diagnosing the electrical, control, communication and telecommunications objects.

Features

Test voltage settings of 500 V or 1000 V perfectly match the requirements for assessing the protection of power supply lines but also of floors and walls in places where the insulation of the stand was used as a means of protection against electric shock – PRS-1 probe (optional accessory) is very useful for this purpose.

The dedicated UNI-Schuko adapter enables user to configure the tested cable pairs – this ensures quick and efficient inspection of the insulation resistance from the side of sockets.

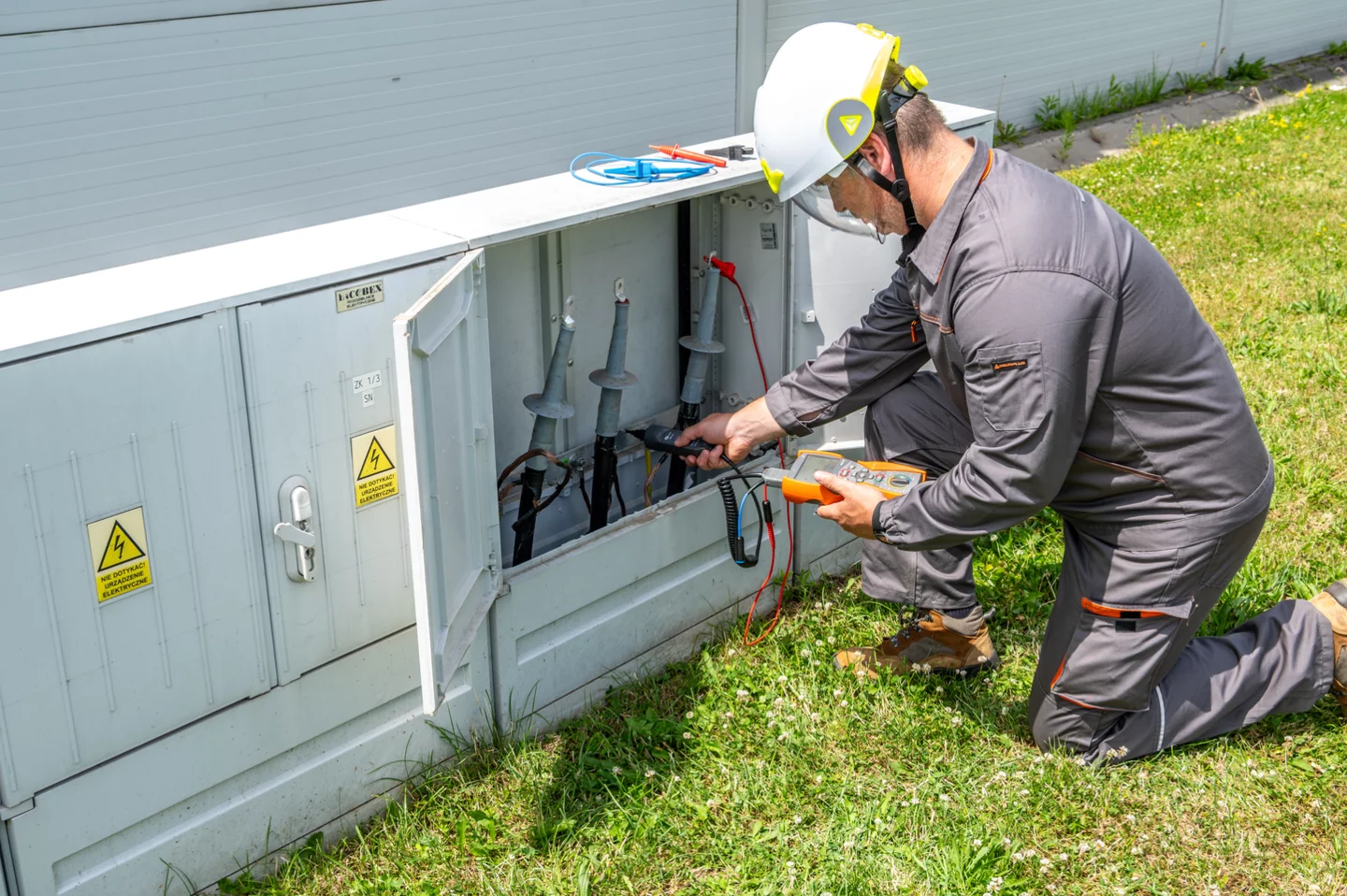

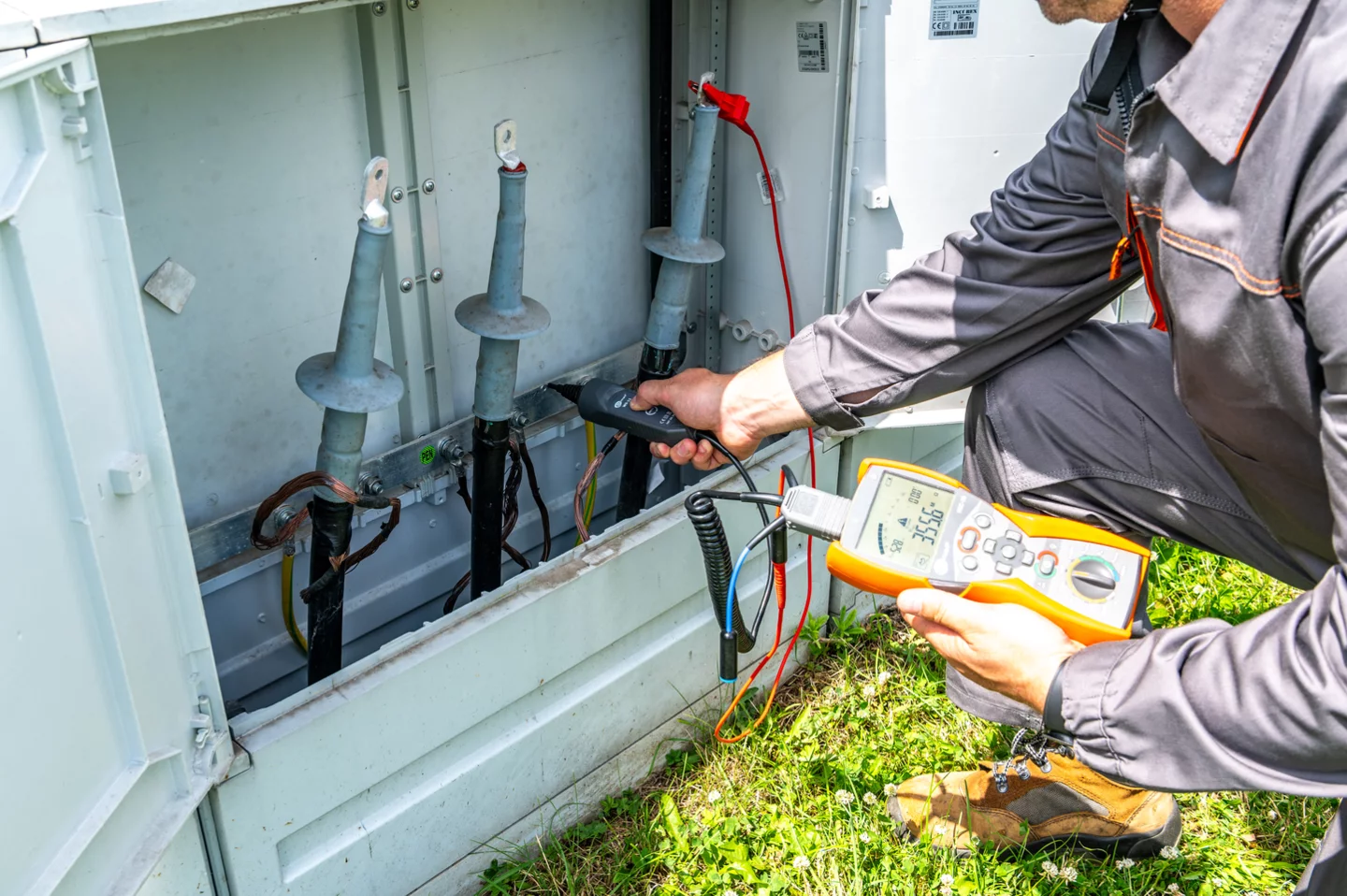

With MIC-30 meter you can check whether an object is under voltage (measuring range up to 600 V), both in overhead and cable networks (measuring category of the device: CAT IV 600 V). You can verify the continuity of cables, e.g. PE connections and equipotential bonding – using the current of at least 200 mA, according to EN 61557-4. You can check the capacity of the start-up capacitors in household appliances and drives of any type (measuring range up to 10 µF). With the third socket (GUARD), you can verify the amount of leakage current, which may “escape” through faulty or contaminated insulation.

Built-in memory and wireless transmission ensure gathering and transmission of data to software that provides archiving and analysis (Sonel Reader). All of this makes MIC-30 meter an essential tool for every service technician.

Durable housing

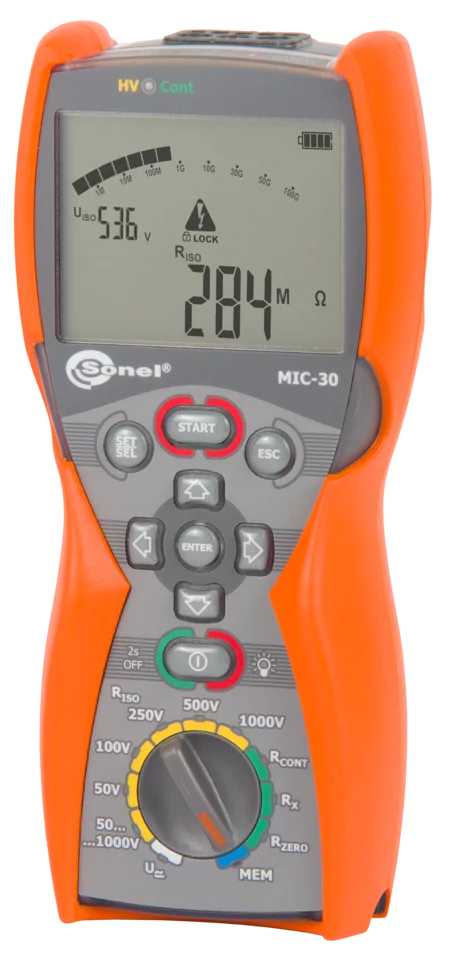

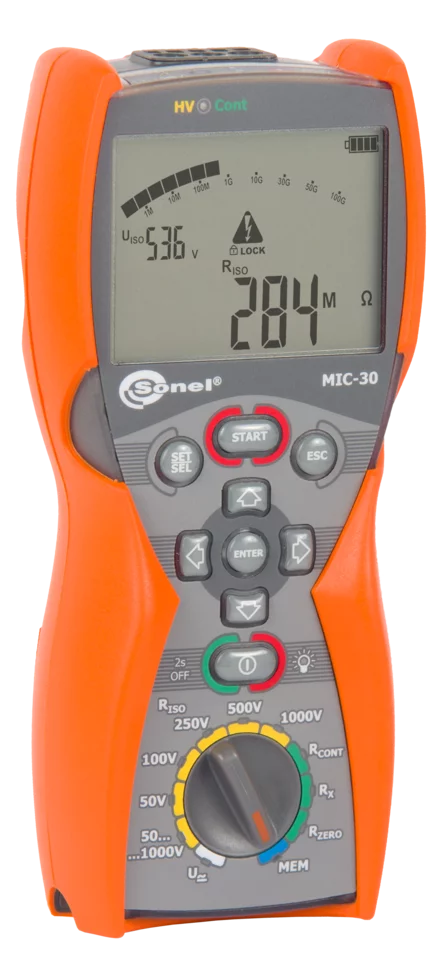

Handy and ergonomic housing provides protection of IP67, ensuring reliability of the meter even in the harshest environmental conditions (moisture, dust, high temperature, etc.)

Insulation resistance measurement

Measuring range:

U_n=50 V: 50 kΩ…250.0 MΩ
U_n=100 V: 100 kΩ…500.0 MΩ
U_n=250 V: 250 kΩ…2.000 GΩ
U_n=500 V: 500 kΩ…20.00 GΩ
U_n=1000 V: 1000 kΩ…100.00 GΩ

Range	Resolution	Accuracy
0.0…999.9 kΩ	0.1 kΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…9.999 MΩ	0.001 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
10.00…99.99 MΩ	0.01 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…250.0 MΩ (for U_n = 50 V)	0.1 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…500.0 MΩ (for U_n = 100 V)	0.1 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…999.9 MΩ (for U_n ≥ 250 V)	0.1 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…2.000 GΩ (for U_n = 250 V)	0.001 GΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…9.999 GΩ (for U_n ≥ 500 V)	0.001 GΩ	±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
10.00…20.00 GΩ (for U_n ≥ 500 V)**	0.01 GΩ	±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
10.00…99.99 GΩ (for U_n = 1000 V)	0.01 GΩ	±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
100.00 GΩ (for U_n = 1000 V)	0.1 GΩ	±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*

“m.v.” - measured value

* for WS-04 adapter

** for WS-04 adapter, range up to 10 GΩ

Low-voltage measurement of continuity of circuit and resistance

Measuring range according to EN 61557-4: 0.10…1999 Ω

Range	Resolution	Accuracy
0.00…19.99 Ω	0.01 Ω	±(2% m.v. + 3 digits)
20.0…199.9 Ω	0.1 Ω	±(2% m.v. + 3 digits)
200…1999 Ω	1 Ω	±(2% m.v. + 3 digits)

DC and AC voltage measurement

Range	Resolution	Accuracy
0…299.9 V	0.1 V	±(2% m.v. + 6 digits)
300…600 V	1 V	±(2% m.v. + 2 digits)

Frequency range: 45…65 Hz

Capacitance measurement

Range	Resolution	Accuracy
1…999 nF	1 nF	±(5% m.v. + 10 digits)
1.00…9.99 μF	0.01 μF	±(5% m.v. + 10 digits)

Capacitance measurement result displayed after measurement of R_ISO
For measurement voltages below 100 V and measured resistance of less than 10 MΩ, the error of capacitance measurement is unspecified

Low-current resistance measurement

Range	Resolution	Accuracy
0.00…199.9 Ω	0.1 Ω	±(3% m.v. + 3 digits)
200…1999 Ω	1 Ω	±(3% m.v. + 3 digits)

Weight and dimensions

Parameter	Value
Net weight (kg)	0.5
Package weight (kg)	1.9
Package width (cm)	34
Package height (cm)	17.5
Package length (cm)	28
