Installation kit

Index cat. WMGBWME11

ean 5907624013834

Essential kit for measurement technician

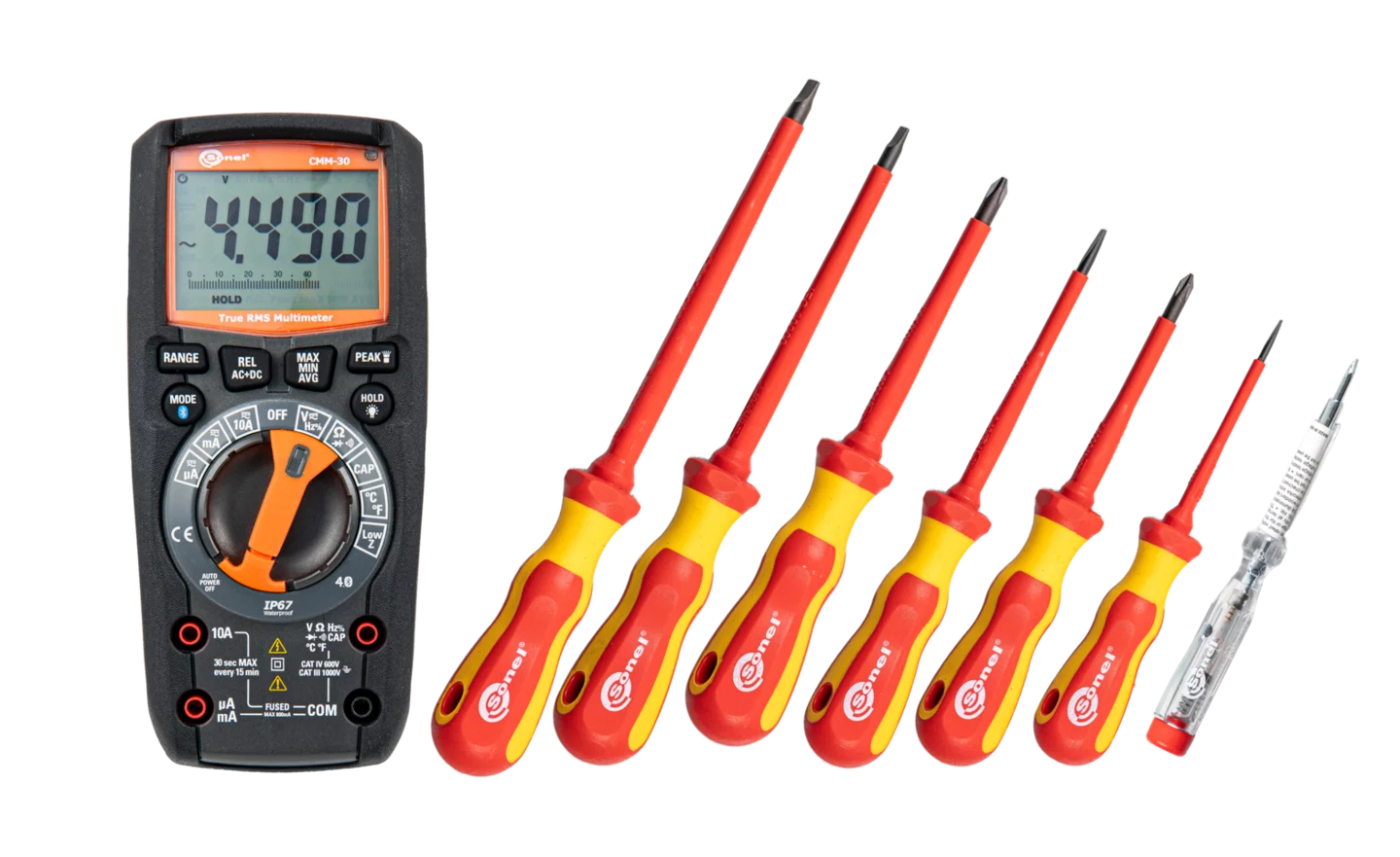

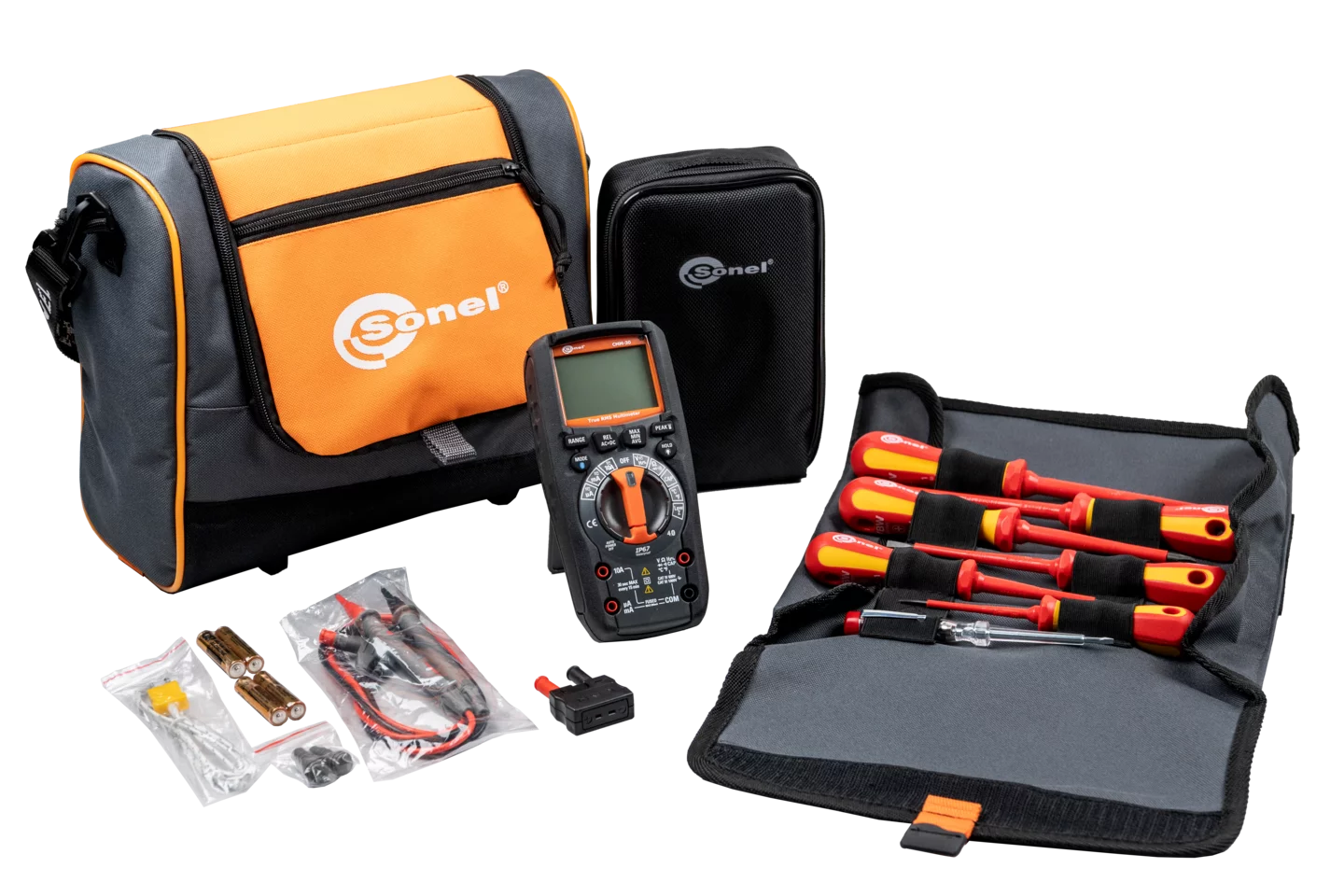

A set of measuring instruments with accessories. The set includes:

  • Sonel CMM-30 industrial multimeter,
  • Sonel NZ-2 screwdriver set, 6-pieces + voltage tester.


  • CMM-30 | Measurement of voltage, current, resistance, Low Z, frequency, capacitance, duty cycle, temperature, continuity, diode test.
  • NZ-2 | Assembly and disassembly of screw connections.
  • NZ-2 | Detection of voltage presence.

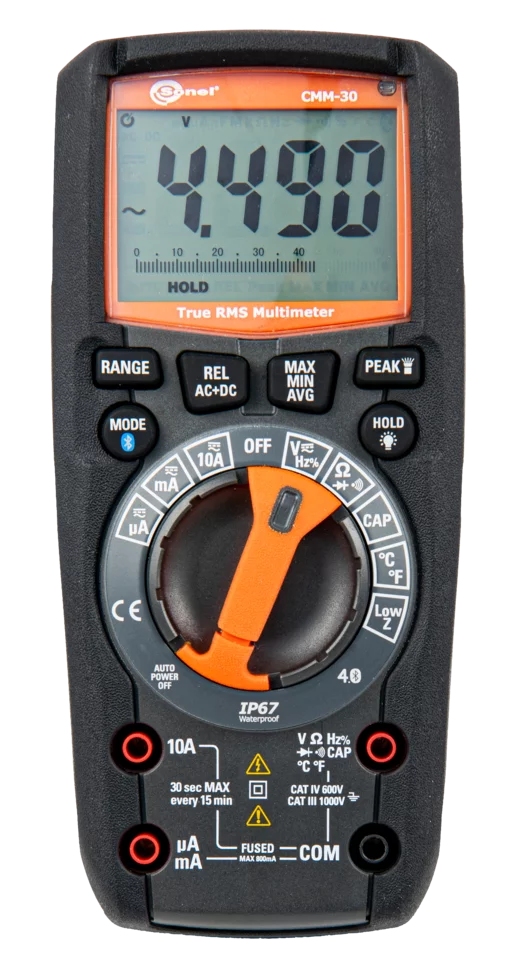

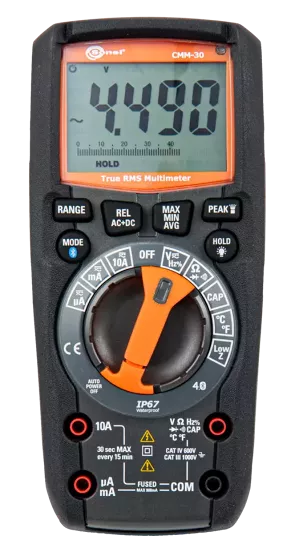

Industrial multimeter


  • AC & DC voltage.
  • AC & DC current.
  • Resistance.
  • Capacitance.
  • Duty cycle.
  • Frequency.
  • Diode and continuity test.
  • Low Z.

Additional functions

  • The AC + DC function allows you to simultaneously display the value of the constant and variable component or the sum of both components during voltage measurement
  • True RMS for AC voltage and current allows to measure the effective value of distorted waveforms
  • Function MAX MIN for displaying extreme values
  • Function AVG for displaying average value
  • The relative REL measurement
  • Automatic and manual range selection
  • HOLD function
  • Built-in Bluetooth module for sending data to mobile devices with Android system
  • Automatic backlight of the display, buttons and rotary switch
  • Built-in flashlight for illuminating dark measurement places
  • Auto-OFF function
  • Hermetic (IP67) and reinforced housing resistant to shocks, covered with elastomer.

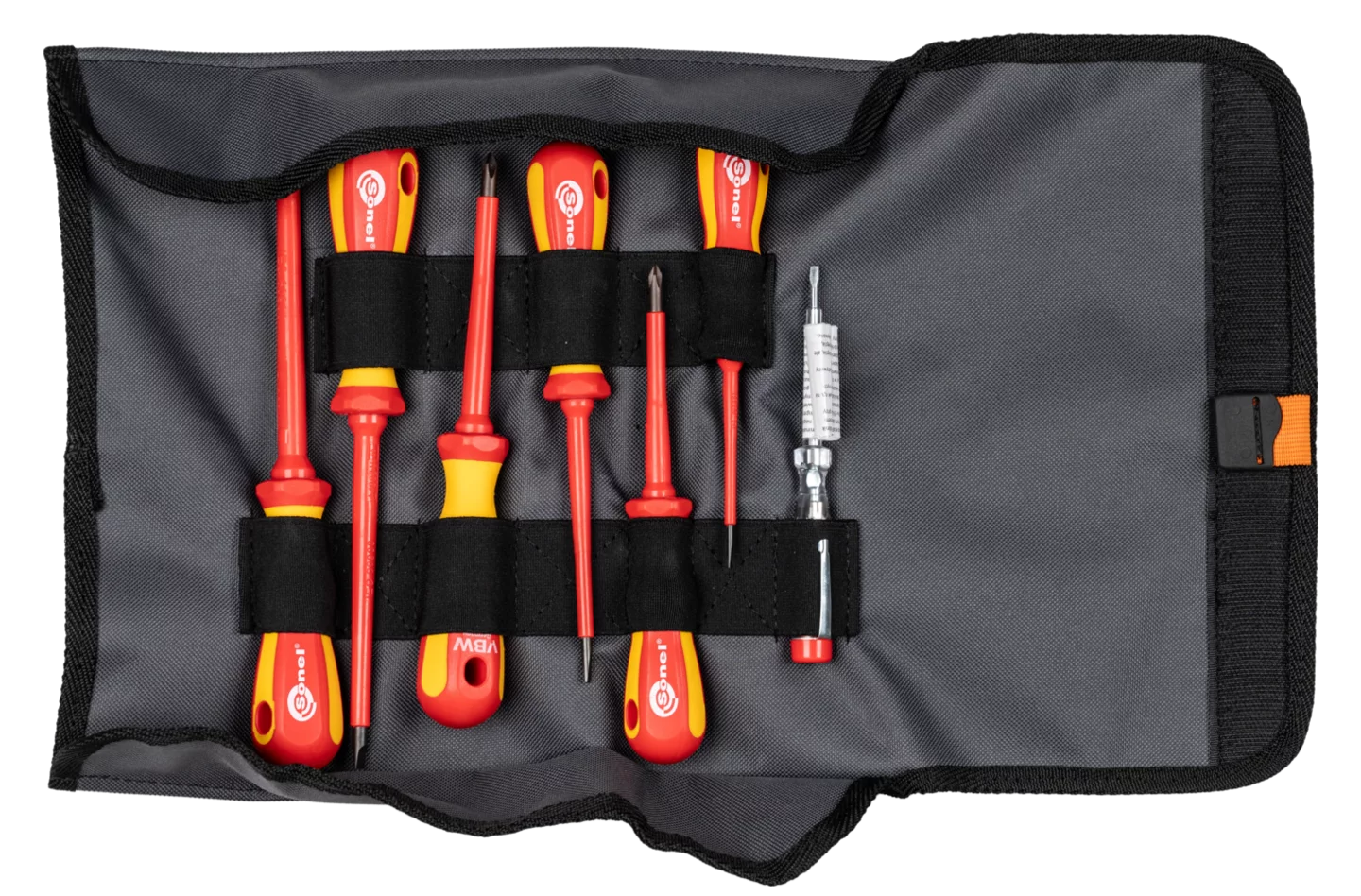

Screwdriver set, 6-pieces + voltage tester

Sonel screwdriver has a rugged shaft and handle connection. Ergonomically designed handle means powerful fatigue-free use and optimum torque transfer. Specially selected materials ensure excellent shock resistance of the handle. High-precision tips compatible with DIN EN ISO guarantee perfect screw fit.

The set consists of:

  • 4x Flat-Head 223-1:
    • 0.4x2.5x75
    • 0.8x4.0x100
    • 1.0x5.5x125
    • 1.2x6.5x150
  • 2x Phillips-Head 224-1:
    • PH 1x80
    • PH 2x100
  • Voltage tester 120-250 V~
