| Parameter | Specification |
|---|---|
| Indicators | LED and audible beeper |
| Voltage range | 90...1000 V AC (50/60 Hz) |
| Overvoltage category | CAT III 1000 V |
| Pollution degree | 2 |
| Ingress protection | IP54 |
| Operating temperature | -10…+50°C | 14…122°F |
| Humidity | 80% without condensation |
| Batter | 2 x 1.5 V battery (AAA, NEDA 24A or IEC LR 03) |
| Flashlight | one white LED |
official Sonel store
Fast shipping
Free shipping from 200SGD
Contact: [email protected]
WhatsApp: +65 8024 1772
0
Login
Detect alternating voltage

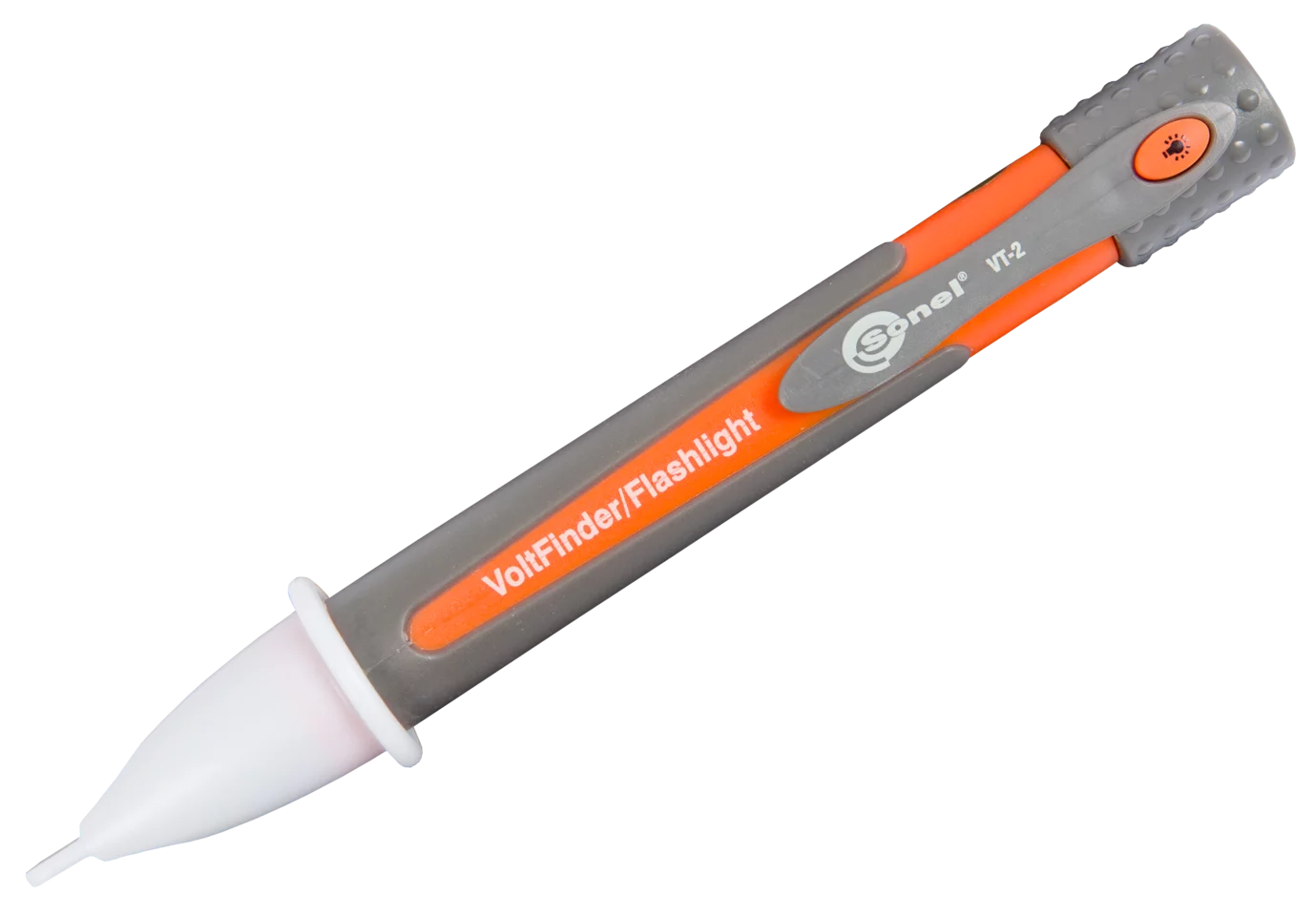

The Sonel VT-2 AC voltage indicator is a fully functional, professional device hidden in an inconspicuous form and compact dimensions. The instrument is characterised by its rich functionality as well as its lightness and ease of use. The device is designed for contactless detection of AC voltage in the range of 90...1000 V.
The Sonel VT-2 voltage indicator facilitates measurements even in narrow and hard-to-reach places, where testing with a regular meter could prove cumbersome or impossible. Combining basic measuring functions, robust design and high user comfort, the instrument is ideal for many areas.

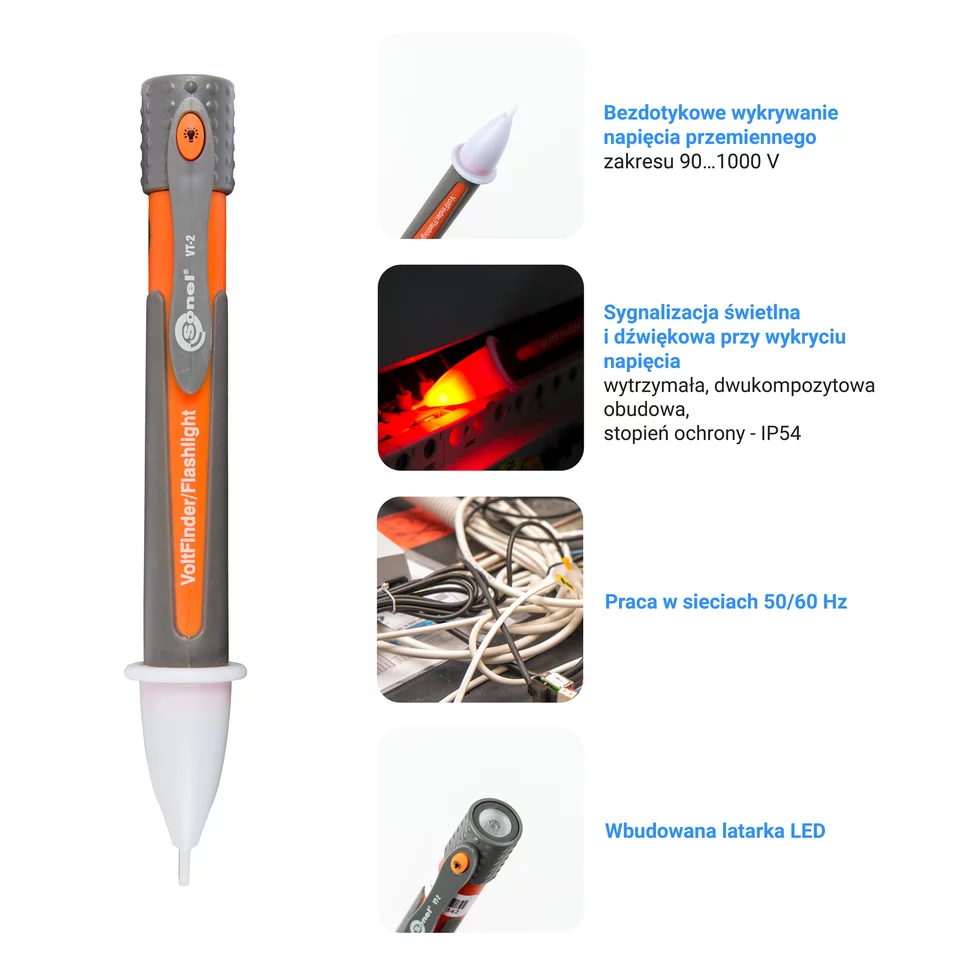

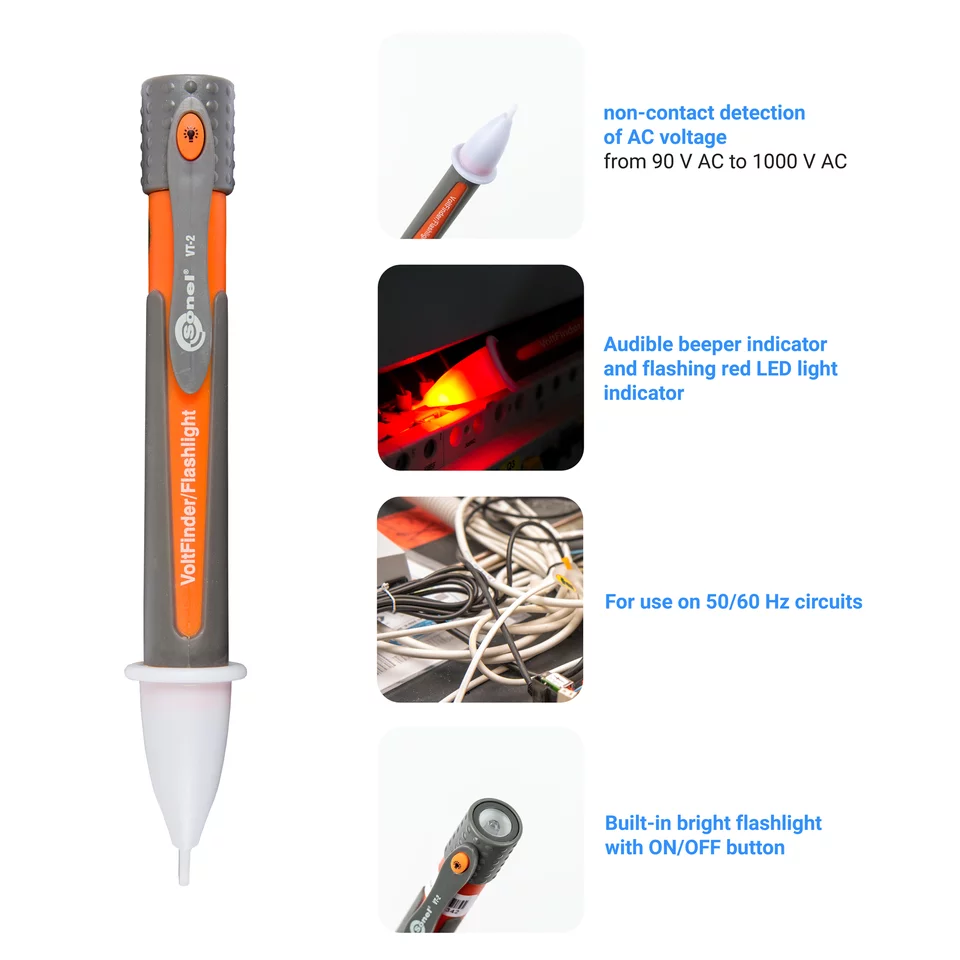

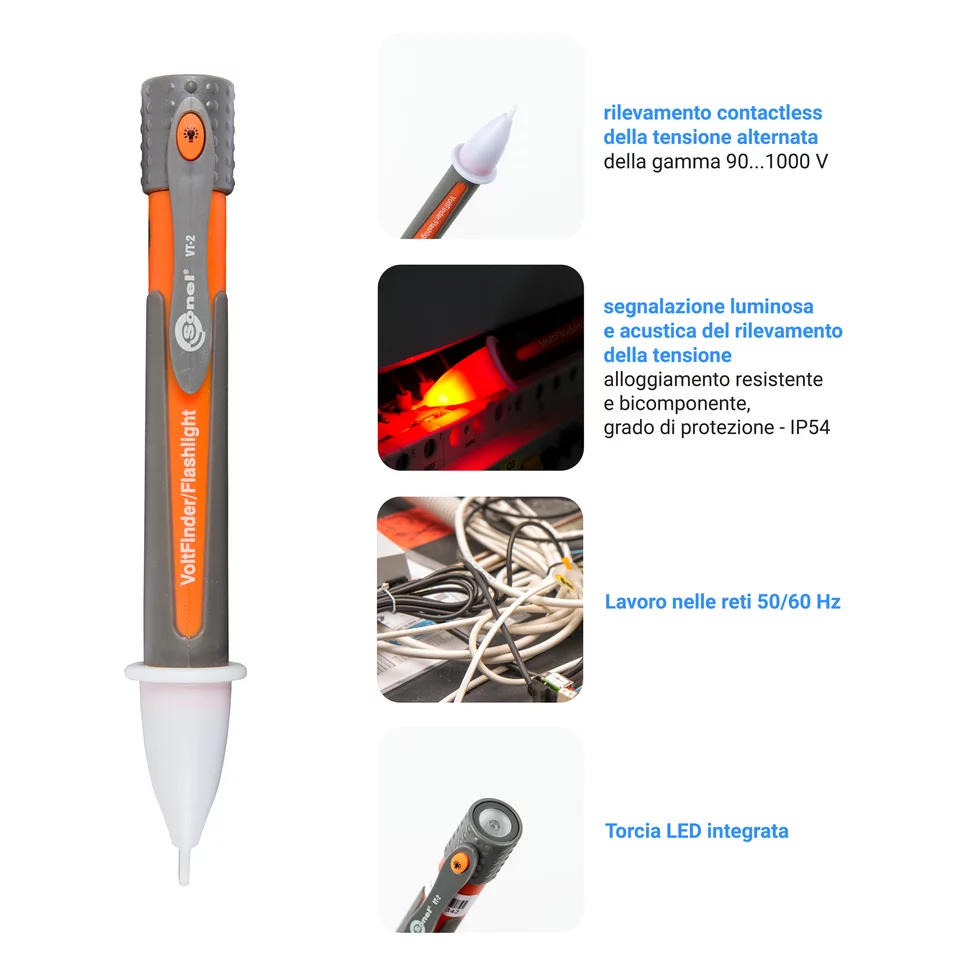

Product features
- non-contact detection of AC voltage from 90 V AC to 1000 V AC
- rugged, double molded case
- suitable for outlets or against wire insulation testing
- flashing red LED light indicator
- audible beeper indicator
- built-in bright flashlight with ON/OFF button
- convenient size with pocket clip
- for use on 50/60 Hz circuits

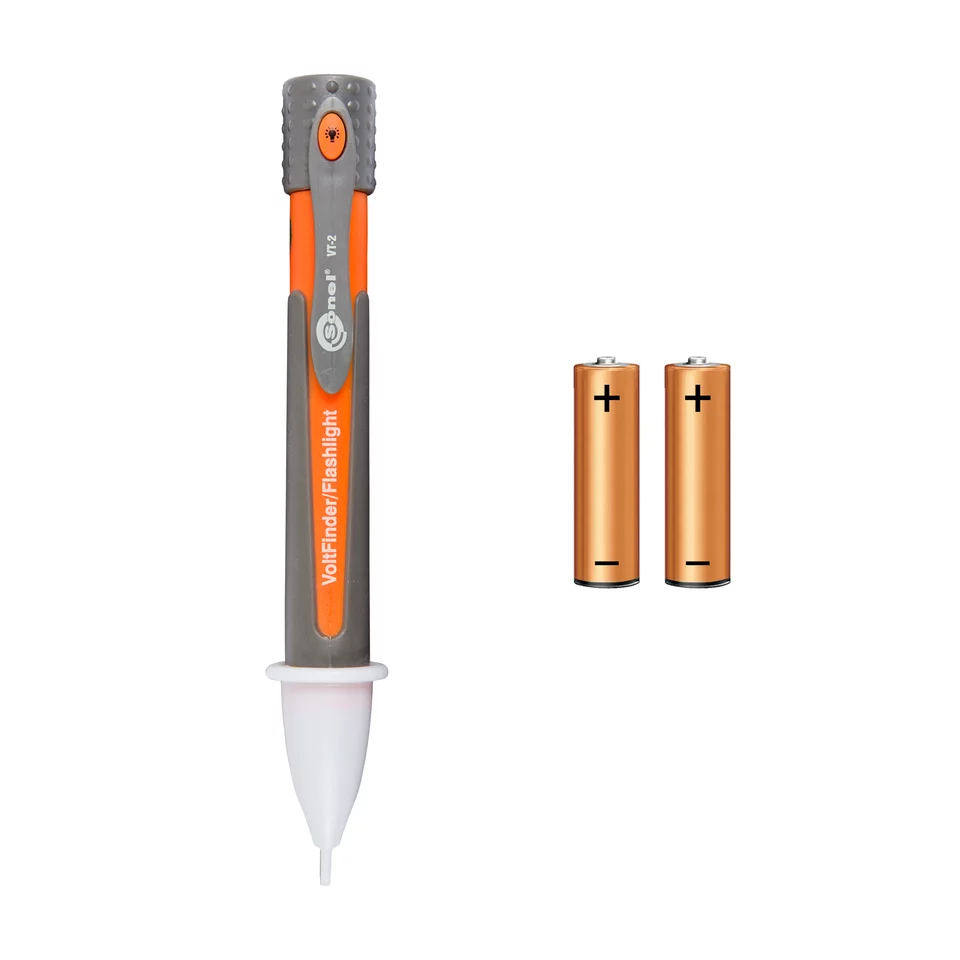

- supply by 2 x 1.5 V batteries (LR03)
Application

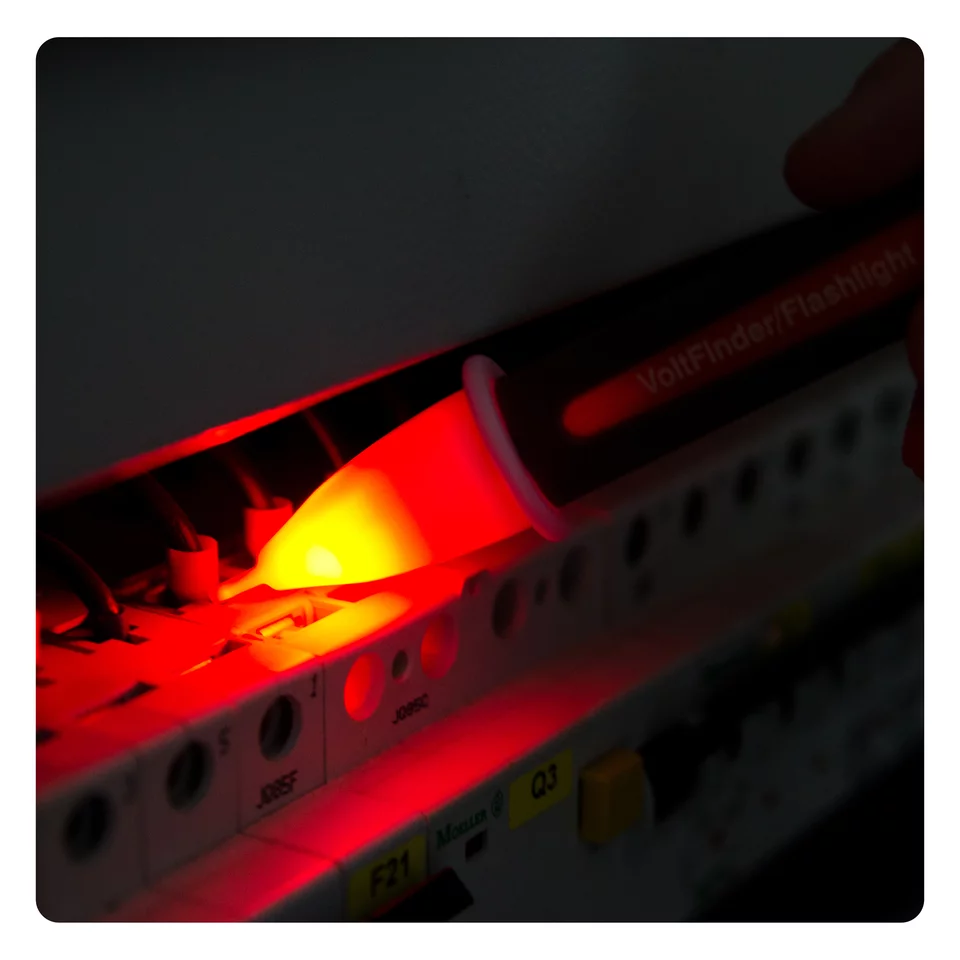

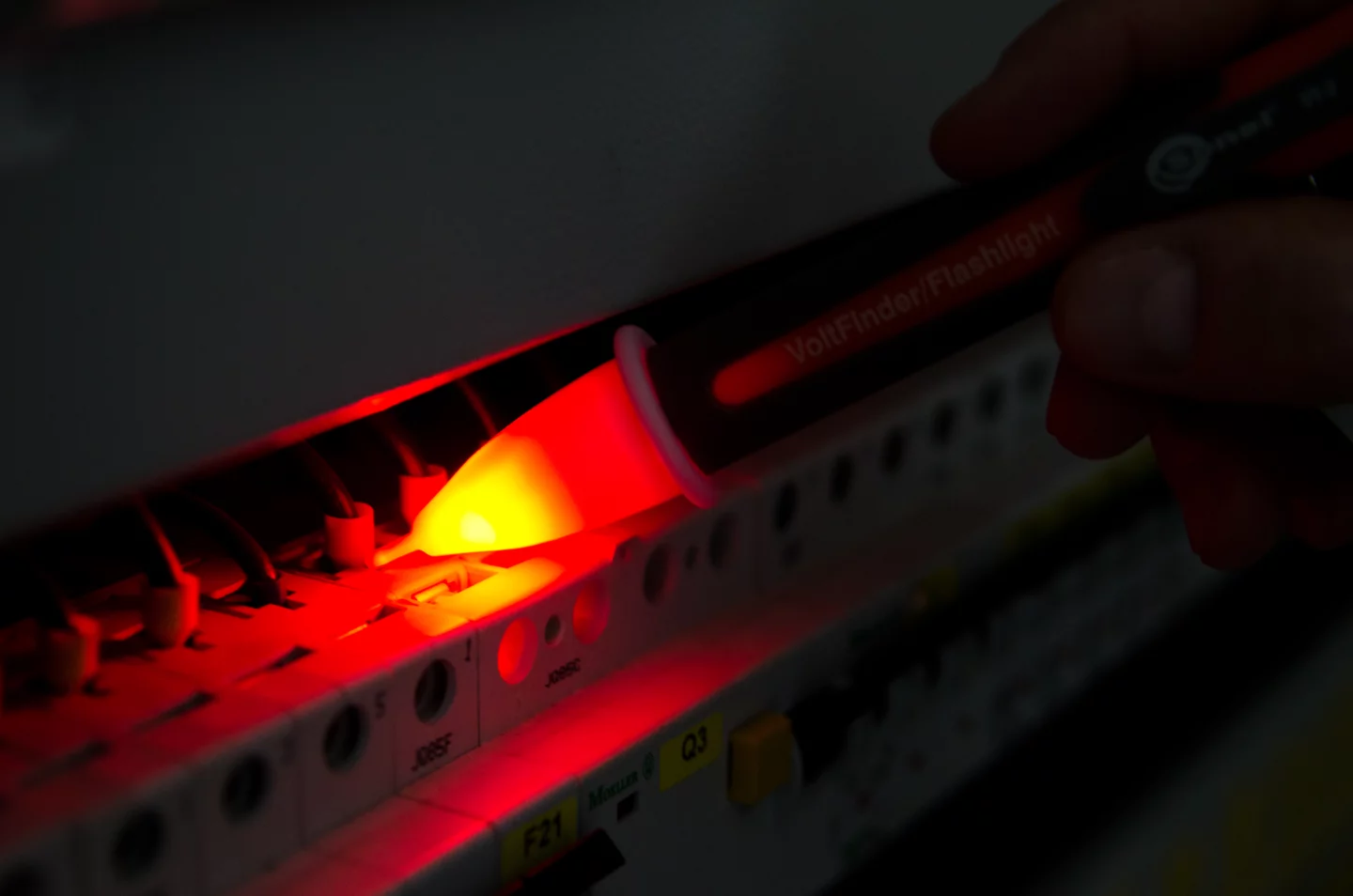

The Non-contact AC Voltage Tester is easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service and safety personnel or homeowners can quickly test for energized circuits in the workplace or at home.
| Parameter | Value |
|---|---|
| Net weight (kg) | 0.1 |
| Package weight (kg) | 0.1 |
| Package width (cm) | 16 |
| Package height (cm) | 4 |
| Package length (cm) | 27 |
