| Parameter | Specification |
|---|---|
| Detector data | |
| Type | Quantum well infrared detector (QWIP) |
| IR resolution | 640 x 512 |
| Pixel pitch | 15 μm |
| Spectral range | 10.3...10.7 μm |
| NETD/Sensitivity | 15 mK |
| Gas sensitivity | ≤0.001 ml/s |
| Lens data | |
| FOV / Focal Length | 14°x11.2° / 39 mm |
| Minimum imaging distance | 0.5 m |
| Focus | Manual/Motor/Auto |
| Lens(optional) | 24°x19.2° / 23 mm (Optional) |
| Image performance | |
| LCD | HD 5.0", 1280x720, rotatable touch screen |
| Visual camera | 5 megapixel CMOS, autofocus, 1 LED fill light |
| Amplification | 1...10x continuous digital zoom |
| Palette | 12 palettes (including iron red, rainbow, black hot and white hot, etc.) |
| Brightness | Manual |
| Measure | |
| Temperature range | -40°C...+50°C +0°C...250°C +200°C...500°C |
| Measurement accuracy | ±1ºC for temp range of 0...100ºC ±2% of temperature range readings for temp range of >100ºC |
| Measurement correction | Auto/Manual |
| Emissivity correction | Adjustable from 0.1 to 1.0 or selected from list of materials |
| Background temperature correction | Auto (according to the input background temp) |
| Atmospheric transmissivity correction | Auto (according to the input distance, relative humidity, ambient temp) |
| Image storage | |
| Memory card | 128G |
| Storage method | Auto/manual single frame image or dynamic recording |
| Single frame infrared image format | JPEG, with 14-Bit measured data image |
| Video storage method | HD videos are stored in the memory card in MPEG4/H.264, each segment can be up to 1 h |
| Voice annotation | 40 s voice record, stored with image |
| Timed storage | Every 10 s...24 h |
| Laser Indicator | |
| Laser classification | Class 2 |
| Laser wavelength | 635 nm red |
| Interface | |
| Power interface | √ |
| SD card slot | √ |
| Video output | HDMI |
| Communication Interface | Wi-Fi, Bluetooth, USB |
| Audio output | √ |
| Tripod | 1/4" _20 |
| Power system | |
| Battery type | Lithium battery, rechargeable |
| Operating time | 3 h continuous (room temperature) |
| External power | 14 V DC |
| Power saving | √ |
| Environment parameters | |
| Operating temperature range | -20°C...+40°C |
| Storage temperature range | -30°C...+60°C |
| Humidity | ≤90% (non-condensing) |
| Vibration | 2g meets the requirements of Q/GDW11304.1-2015 5.5.3 |
| Shock | 25g meets the requirements of Q/GDW11304.1-2015 5.5.4 |
| Protection level acc. to IEC 60529 | IP54 |
| Gas detection | |
| Gas detection | Sulfur hexafluoride, ammonia, acetic acid, hydrazine, acetyl chloride, methylsilane, allyl bromide, butanone, propenyl chloride, butenone, fluorinated allyl acrolein, anhydrous ammonia, propene, methyl bromide |
official Sonel store
Fast shipping
Free shipping from 200SGD
Contact: [email protected]
WhatsApp: +65 8024 1772
0
Login
Detect gas and maintain safety

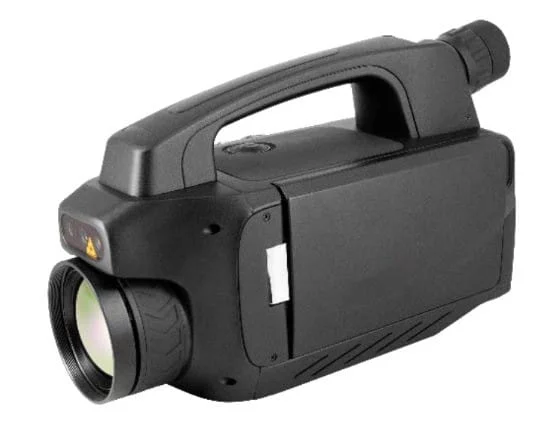

Sonel KSF-360 uses quantum well infrared detector, which can accurately find NH3|SF6 leakage point through thermal imaging. This portable thermal camera can detect leaks from a safe distance, therefore it can greatly ensure the safety of operators. In addition, it can also track some harmful gases to make contributions to environment.
Features
- QWIP, sensitivity 15 mK
- SF6|NH3 gas detection sensitivity ≤0.001 ml/s
- Passive thermal imaging, specific background & auxiliary light source is not required
- SF6|NH3 gas imaging leak detection and thermal temp measurement
- Pictures and videos are stored in SD card directly
- 5 megapixel visible light
- Small size, weighs only 2.8 kg
- Durable, intelligent operation
Applications
- Electric industry
- Chemical industry
- Environmental protection agency
- Institute
| Parameter | Value |
|---|---|
| Net weight (kg) | 2.5 |
| Package weight (kg) | 8.8 |
| Package width (cm) | 51 |
| Package height (cm) | 20 |
| Package length (cm) | 38 |
