MMR-640
Low Resistance Meter

Name: Low Resistance Meter
Brand: Sonel
SKU: S68-WMGBMMR640
Availability: OutOfStock

Index cat. WMGBMMR640

ean 5907624028708

Ingress protection: IP 67

Measurement category: CAT III 600 V, CAT IV 300 V

Data transmission: Wi-Fi, LAN, USB

Display: touchscreen, graphic, color, backlit

unavailable

Inquiry for an offer

2-core test lead 10 m (10 / 25 A) U1 / I1

256,27 $

Available

2-core test lead 10 m (10 / 25 A) U2 / I2

256,27 $

Available

2-core test lead 6 m (10 /25 A) U1/ I1

147,12 $

Available

2-core test lead 6 m (10 / 25 A) U2 / I2

147,12 $

Available

2-core test lead 15 m (10 / 25 A) U2 / I2

382,04 $

Available

2-core test lead 15 m (10 / 25 A) U1 / I1

382,04 $

Available

WMR-2

Small resistance standard

Inquire

2-pin Kelvin probe (banana connectors)

61,70 $

Available

2-pin Kelvin probe (banana connectors) - th...

78,31 $

Available

Kelvin vice with cables

177,97 $

Available

Low resistance within range

Product features

measurement of very low resistance
high immunity to disturbances
easy operation
big touchscreen
automatic measurement mode
autoranging

Application

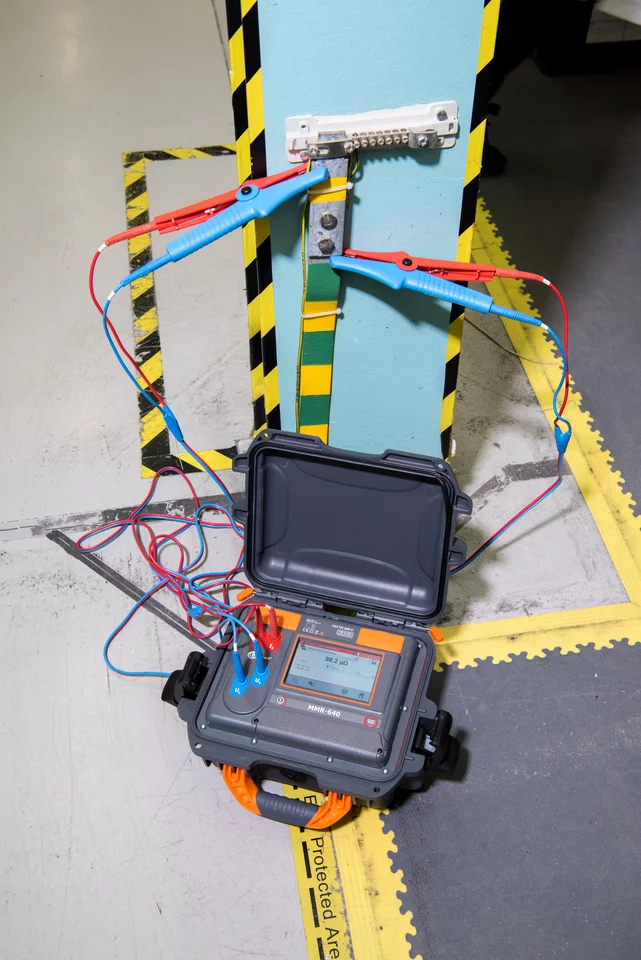

The MMR-640 meter is designed to measure very low resistance of resistive objects. This product is made to be used in power plants, railways and maintenance companies to measure resistance of:

breakers, contacts,
earthing conductors, equipotential bondings,
welded and soldered connections,
bolted connections,
and other resistive objects. MMR-640 can be also utilized on production lines (eg. at the final production control stage).

Device capabilities

The MMR-640 meter provides an innovative combination of a high-performance measuring device with a modern user interface and advanced data management system.

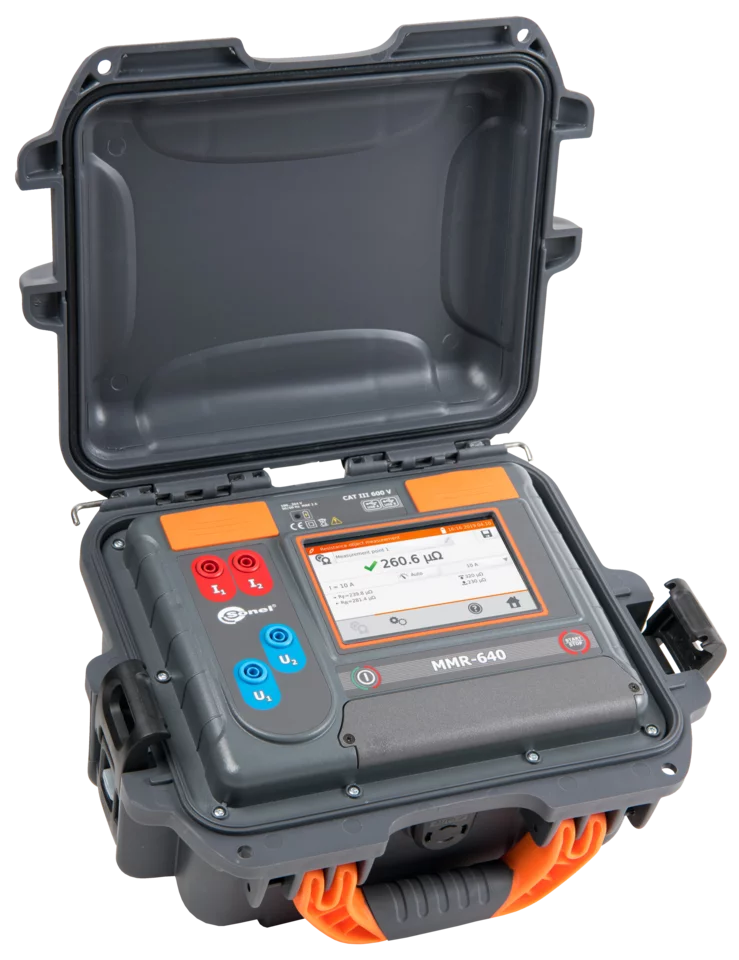

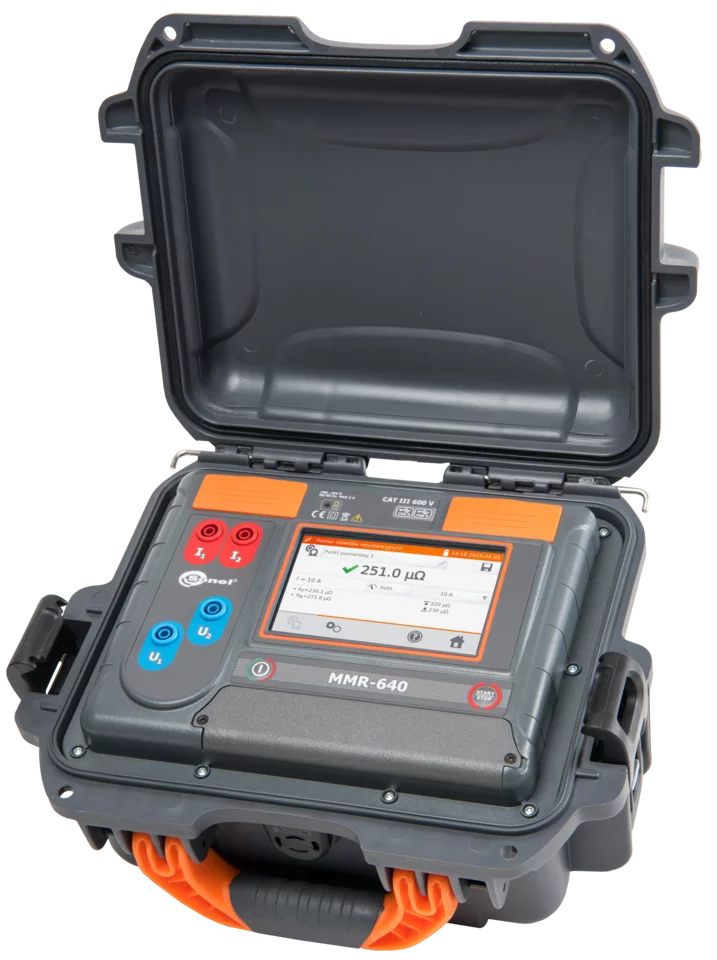

Durable and practical casing

In response to the customers needs the MMR-640 has been designed to operate in difficult environmental conditions. A unique casing with the IP67 ingress protection rating ensures that the device is both waterproof and dustproof.

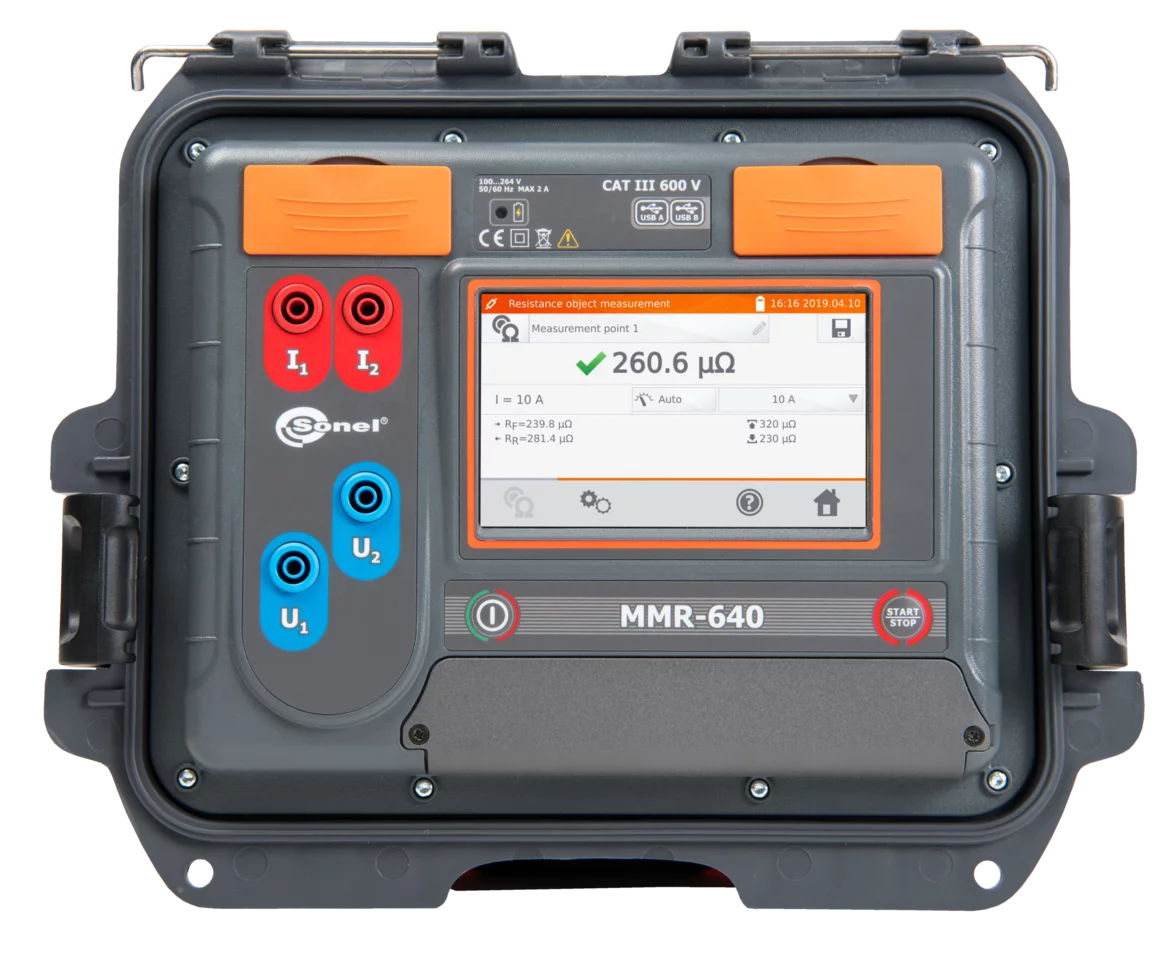

Easy readout

The MMR-640 meter is equipped with a readable colour touchscreen that, due to its 800 x 480 pixel resolution, provides both high comfort of interacting with the interface and high readability of the measurement results.

Resistance measurement

Range	Resolution	Test current	Accuracy
0...999.9 μΩ	0.1 μΩ	10 A	±(0.25% m.v. + 2 digits)
1.0000...1.9999 mΩ	0.0001 mΩ	10 A	±(0.25% m.v. + 2 digits)
2.000...19.999 mΩ	0.001 mΩ	10 A	±(0.25% m.v. + 2 digits)
20.00...199.99 mΩ	0.01 mΩ	10 A / 1 A	±(0.25% m.v. + 2 digits)
200.0...999.9 mΩ	0.1 mΩ	1 A / 0.1 A	±(0.25% m.v. + 2 digits)
1.0000...1.9999 Ω	0.0001 Ω	1 A / 0.1 A	±(0.25% m.v. + 2 digits)
2.000...19.999 Ω	0.001 Ω	0.1 A	±(0.25% m.v. + 2 digits)
20.00...199.99 Ω	0.01 Ω	10 mA	±(0.25% m.v. + 2 digits)
200,0...1999.9 Ω	0.1 Ω	1 mA	±(0.25% m.v. + 2 digits)

m.v. - measured value

Weight and dimensions

Parameter	Value
Net weight (kg)	3.6
Package weight (kg)	5.9
Package width (cm)	40.5
Package height (cm)	25
Package length (cm)	30.5

Accessories included with the meter

Mains power cable 230 V (IEC C13 plug)

NO. CAT. WAPRZ1X8BLIEC

1 pcs

2-core test lead 3 m (12 / 32 A) U1/ I1

NO. CAT. WAPRZ003DZBBU1I1

1 pcs

2-core test lead 3 m (12 / 32 A) U2 / I2

NO. CAT. WAPRZ003DZBBU2I2

1 pcs

AKU-27

Li-ion battery 7.2 V

NO. CAT. WAAKU27

1 pcs

L-11

Carrying case

NO. CAT. WAFUTL11

1 pcs

K-06

Kelvin clamp, 1 kV, 25 A

NO. CAT. WAKROKELK06

2 pcs

USB cable

NO. CAT. WAPRZUSB

1 pcs

Additional accessories

2-core test lead 10 m (10 / 25 A) U1 / I1

NO. CAT. WAPRZ010DZBBU1I1

Available

Delivery: up to 4 days

256,27 $

2-core test lead 10 m (10 / 25 A) U2 / I2

NO. CAT. WAPRZ010DZBBU2I2

Available

Delivery: up to 4 days

256,27 $

2-core test lead 6 m (10 /25 A) U1/ I1

NO. CAT. WAPRZ006DZBBU1I1

Available

Delivery: up to 4 days

147,12 $

2-core test lead 6 m (10 / 25 A) U2 / I2

NO. CAT. WAPRZ006DZBBU2I2

Available

Delivery: up to 4 days

147,12 $

2-core test lead 15 m (10 / 25 A) U2 / I2

NO. CAT. WAPRZ015DZBBU2I2

Available

Delivery: up to 4 days

382,04 $

2-core test lead 15 m (10 / 25 A) U1 / I1

NO. CAT. WAPRZ015DZBBU1I1

Available

Delivery: up to 11 days

382,04 $

WMR-2

Small resistance standard

NO. CAT. WAADAWMR2

Inquire

2-pin Kelvin probe (banana connectors)

NO. CAT. WASONKEL2OGB

Available

Delivery: up to 4 days

61,70 $

2-pin Kelvin probe (banana connectors) - thick pins

NO. CAT. WASONKEL2OGB2

Available

Delivery: up to 11 days

78,31 $

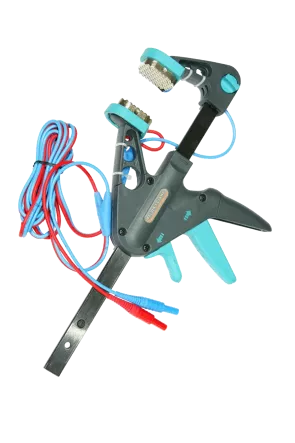

Kelvin vice with cables

NO. CAT. WAZACKEL1

Available

Delivery: up to 4 days

177,97 $
