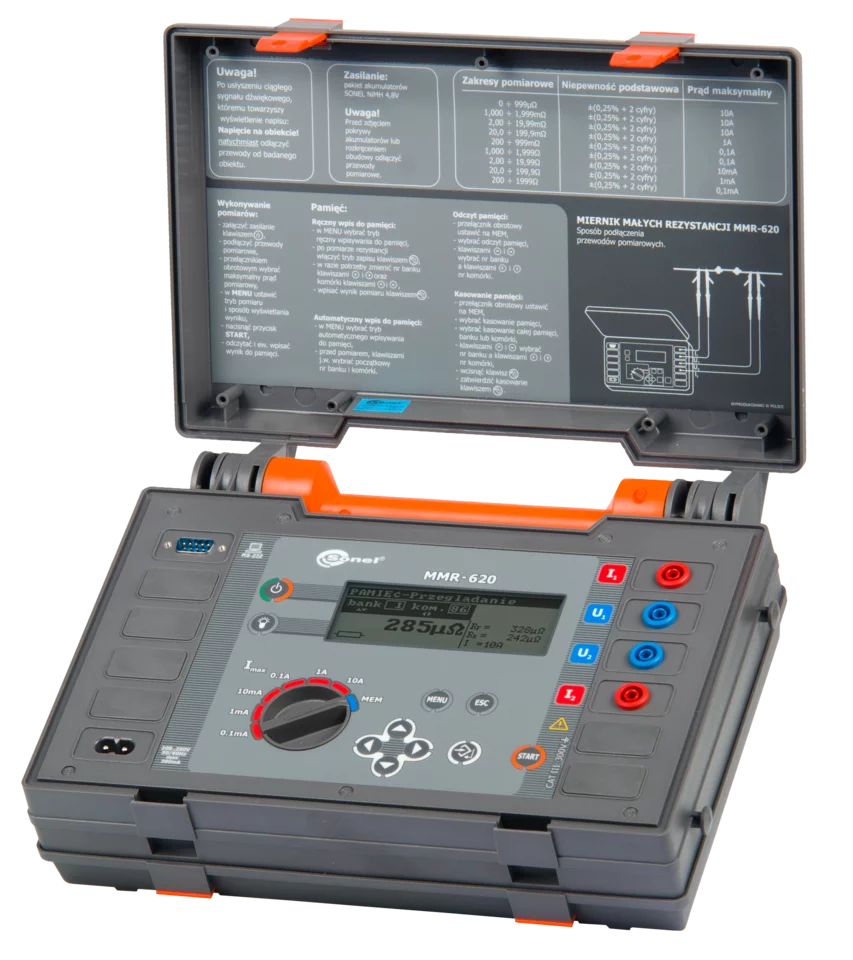

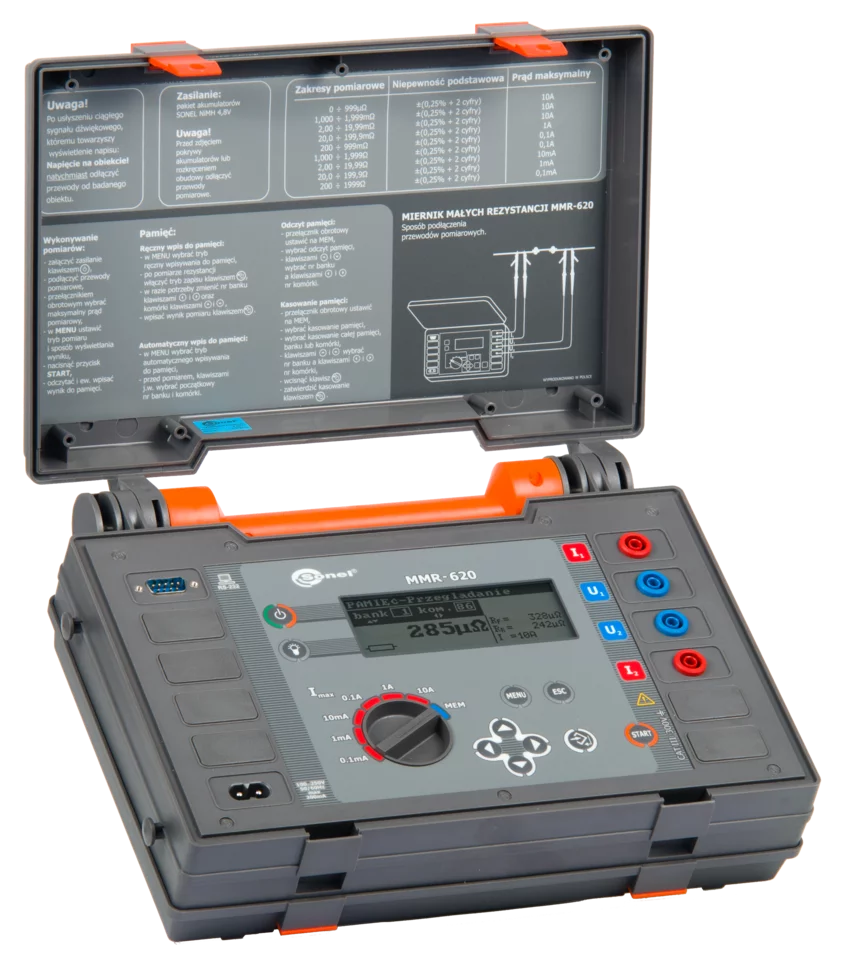

MMR-620

Low resistance meter

Index cat. WMGBMMR620

ean 5907624015180

Ingress protection: IP 54

Measurement category: CAT III 300 V

Data transmission: RS-233

Display: graphic, monochrome, backlit

3 769,00 $

In stock

Delivery: 24h

Additional accessories

2-core test lead 10 m (10 / 25 A) U2 / I2

256,27 $

Available

2-core test lead 6 m (10 / 25 A) U2 / I2

147,12 $

Available

2-core test lead 15 m (10 / 25 A) U2 / I2

382,04 $

Available

2-core test lead 15 m (10 / 25 A) U1 / I1

382,04 $

Available

2-core test lead 10 m (10 / 25 A) U1 / I1

256,27 $

Available

2-core test lead 6 m (10 /25 A) U1/ I1

147,12 $

Available

2-pin Kelvin probe (banana connectors) - th...

78,31 $

Available

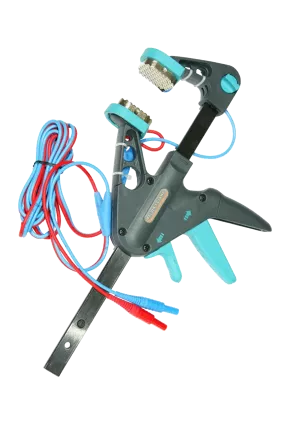

Kelvin vice with cables

177,97 $

Available

USB / RS-232 converter

64,07 $

Available

Measure motor winding resistance and other low resistances

Possibility to measure objects of resistive and inductive nature with the use of versatile small resistance meter Sonel MMR-620.

We present a professional small resistance meter MMR-620, which ensures high measuring accuracy - the measurement resolution is 1 µΩ. With the use of this device it is possible to perform measurements of objects of both resistive and inductive nature (e.g. testing of transformers or motors). The meter provides a high measuring current for individual subranges and various operating modes, adjusted to the type of measured object - quick measurement mode (3 sec) for testing objects of resistive nature, as well as extended measurement mode for testing objects of inductive nature.

Product features

MMR-620 microohmmeter enables accurate measurements of both connections resistance (welded, soldered, bolted) and winding resistance of electrical motors.

  • Measurements of objects resistive in nature:
    • welded and soldered connections, equipotential bondings, earthing conductors,
    • contacts, welds of rails, conductors and cables,
    • measurement according to the four-lead method.
  • Measurements of objects inductive in nature:
    • motor windings,
    • low-resistance coils.

Additional functions

  • Automatic or manual selection of measuring range (measurement of objects of an inductive nature).
  • Selection of measurement mode according to the type of measured object:
    • fast measurement (3 seconds) for measurement of objects of a resistive nature,
    • extended measurement for testing of objects of an inductive nature (accelerated mode, with slightly worse accuracy, available); with automatic discharging of the object after measurement.
  • Selection of measurement mode depending on application (including control of product series):
    • measurement in normal mode - triggered when the “START” button is pressed,
    • measurement in automatic mode - the instrument awaits connection of all four test leads to the object, after which it automatically start measurement in one or both directions and calculates the mean resistance value,
    • measurement in continuous mode - the meter repeats successive measurement cycles with breaks every 3 seconds (for objects of a resistive nature) or performs measurement continuously (for objects of an inductive nature)
  • Window mode:
    • makes possible to set an upper and lower limit within the measurement result should remain; sound signal triggered when the result is beyond set range,
    • capability of performing measurements even under disturbances of a value five times greater than the measured signal.
