Measure insulation resistance up to 10 GΩ

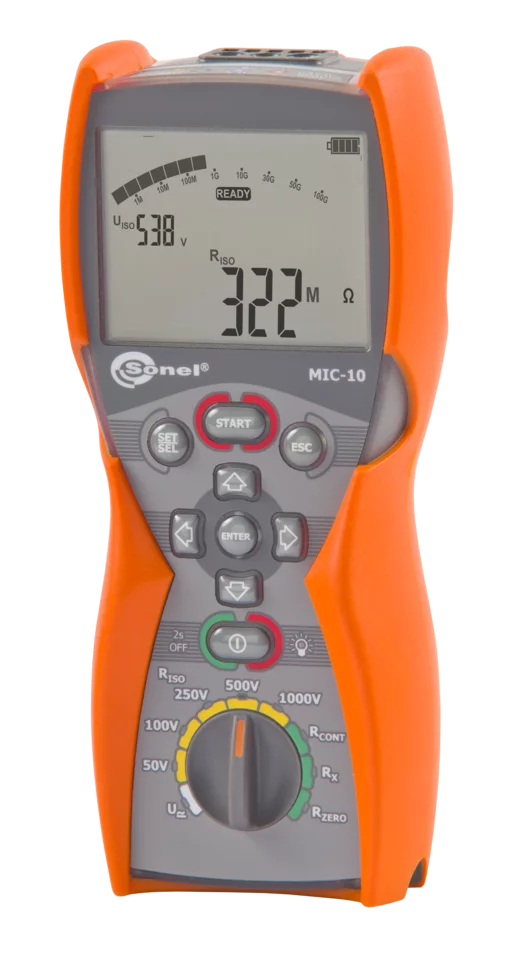

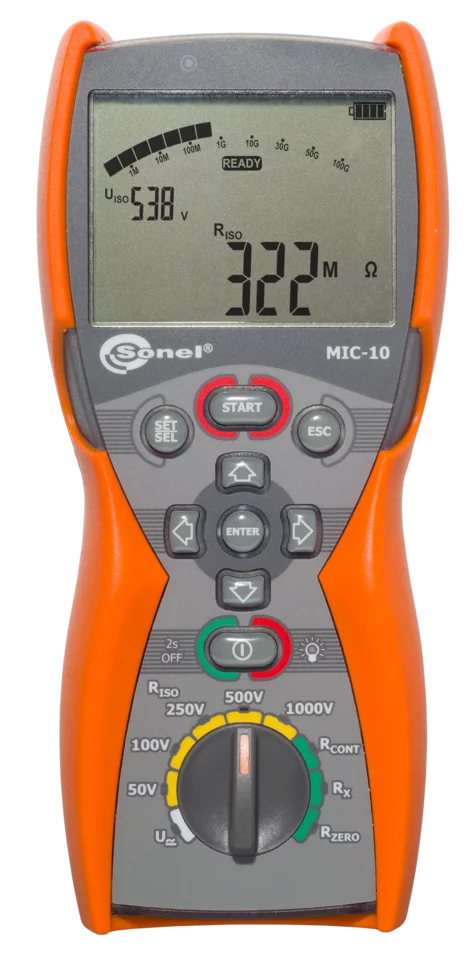

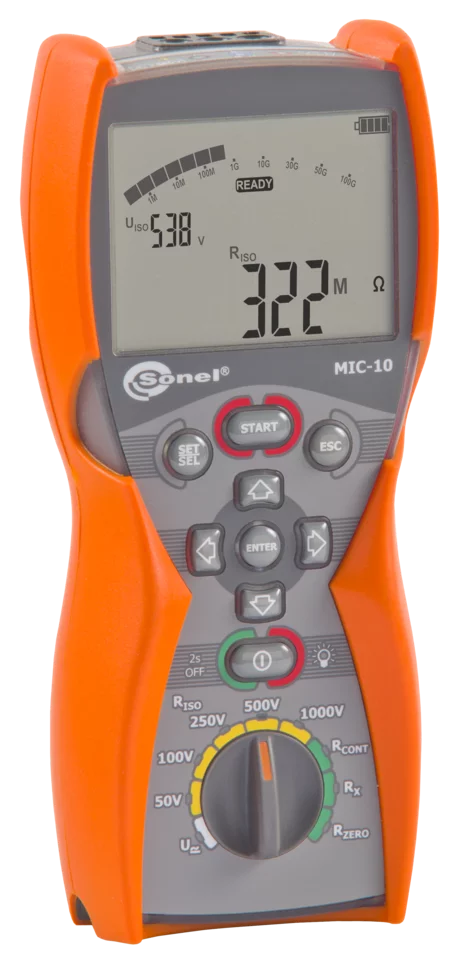

Sonel MIC-10 insulation resistance meter is a reliable device for measuring insulation resistance up to 10 GΩ. Due to its compact dimensions, ergonomic design and versatile application, this compact meter is a must for every professional working on electrical installations. It works flawlessly in areas with low voltage, such as electrical installations in single- and multi-family buildings, public facilities, as well as workshops and factories.

Main features

measurement of insulation resistance up to 10 GΩ thanks to max 1000 V measurement voltage
designed for harsh environmental conditions - IP67 ingress protection
allows for testing electrical continuity - R_CONT 200 mA function
checking start capacitors in motors thanks to capacity measurement function

…and much more

measurement voltage selected from: 50, 100, 250, 500, 1000 V
continuous reading of measured insulation resistance
automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement
sound signalling of five-second time intervals, facilitating capture of time characteristics
readings of actual measurement voltage during measurement
protection against measurement of live objects
three-lead measurement
capacitance measurement during measurement of R_ISO
low-voltage measurement of circuit continuity and resistance
continuity test of protective conductors and equipotential bonding with current ≥200 mA flowing in two directions in compliance with EN 61557-4
measurement of direct and alternating voltages within the range of 0…600 V

Application

MIC-10 is an insulation resistance meter, which may be very useful for various electrical works (even the simplest), in locations with Low Voltage power supply, including: electrical systems in single- and multi-family buildings as well as in public buildings and in small workshops or factories. With its test voltage settings of 50 V, 100 V or 250 V the device is perfect for quick checking of the insulation condition in telecommunications systems and control cables.

Features

Test voltage settings of 500 V or 1000 V perfectly match the requirements for assessing the protection of power supply lines but also of floors and walls - PRS-1 probe (optional accessory) is very useful for this purpose.

With MIC-10 meter you can check whether an object is under voltage (measuring range up to 600 V), both in overhead and cable networks (measuring category of the device: CAT IV 600 V). You can verify the continuity of cables, e.g. PE connections and equipotential bonding - using the current of at least 200 mA, according to EN 61557-4. You can check the capacity of the start-up capacitors in household appliances and drives of any type (measuring range up to 10 µF).

This makes MIC-10 meter an essential tool for every service technician.

Durable housing

Handy and ergonomic housing provides protection of IP67, ensuring reliability of the meter even in the harshest environmental conditions (moisture, dust, high temperature, etc.).

Insulation resistance measurement

Measuring range:

U_n=50 V: 50 kΩ…250.0 MΩ
U_n=100 V: 100 kΩ…500.0 MΩ
U_n=250 V: 250 kΩ…2.000 GΩ
U_n=500 V: 500 kΩ…5.000 GΩ
U_n=1000 V: 1000 kΩ…10.00 GΩ

Range	Resolution	Accuracy
0.0…999.9 kΩ	0.1 kΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…9.999 MΩ	0.001 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
10.00…99.99 MΩ	0.01 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…250.0 MΩ (for U_n = 50 V)	0.1 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…500.0 MΩ (for U_n = 100 V)	0.1 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…999.9 MΩ (for U_n ≥ 250 V)	0.1 MΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…2.000 GΩ (for U_n = 250 V)	0.001 GΩ	± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…9.999 GΩ (for U_n ≥ 500 V)	0.001 GΩ	±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
10.00…20.00 GΩ (for U_n ≥ 500 V)**	0.01 GΩ	±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
10.000…99.99 GΩ (for U_n = 1000 V)	0.01 GΩ	±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
10.00 GΩ (for U_n = 1000 V)	0.1 GΩ	±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*

“m.v.” - measured value

* for WS-04 adapter

** for WS-04 adapter, range up to 10 GΩ

Low-voltage measurement of continuity of circuit and resistance

Measuring range according to EN 61557-4: 0.10…1999 Ω

Range	Resolution	Accuracy
0.00…19.99 Ω	0.01 Ω	±(2% m.v. + 3 digits)
20.0…199.9 Ω	0.1 Ω	±(2% m.v. + 3 digits)
200…1999 Ω	1 Ω	±(4% m.v. + 3 digits)

DC and AC voltage measurement

Range	Resolution	Accuracy
0…299.9 V	0.1 V	±(2% m.v. + 6 digits)
300…600 V	1 V	±(2% m.v. + 2 digits)

Capacitance measurement

Range	Resolution	Accuracy
1…999 nF	1 nF	±(5% m.v. + 10 digits)
1.00…9.99 μF	0.01 μF	±(5% m.v. + 10 digits)

Capacitance measurement result displayed after measurement of R_ISO
For measurement voltages below 100 V and measured resistance of less than 10 MΩ, the error of capacitance measurement is unspecified

Low-current resistance measurement

Range	Resolution	Accuracy
0.00…199.9 Ω	0.1 Ω	±(3% m.v. + 3 digits)
200…1999 Ω	1 Ω	±(3% m.v. + 3 digits)

Weight and dimensions

Parameter	Value
Net weight (kg)	0.5
Package weight (kg)	1.9
Package width (cm)	34
Package height (cm)	17.5
Package length (cm)	28
