Installation kit

Index cat. WMGBWME10

ean 5907624013858

Ingress protection: IP 40

Measurement category: CAT III 1000 V, CAT IV 600 V

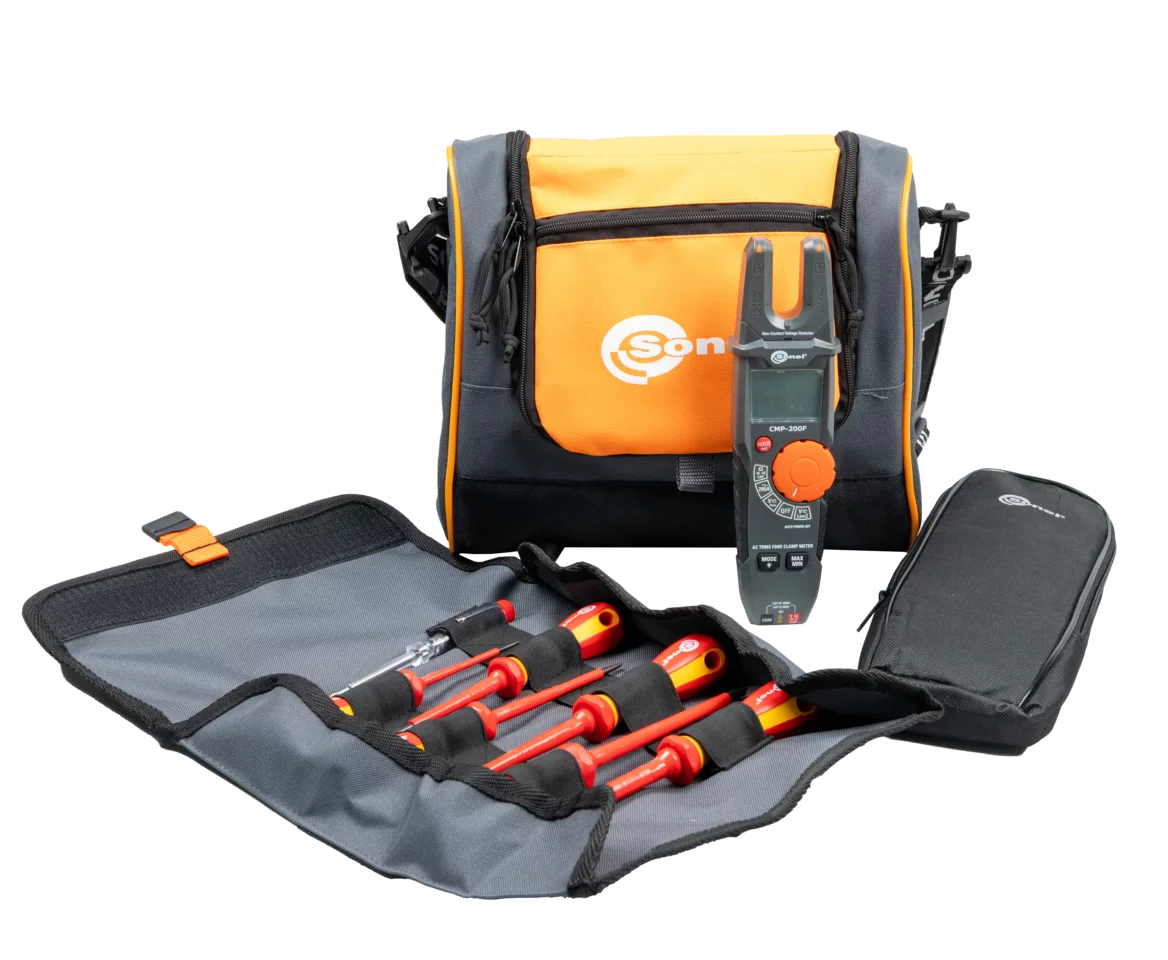

Essential kit for measurement technician

A set of measuring instruments with accessories. The set includes:

  • Sonel CMP-200F fork clamp meter,
  • Sonel NZ-2 screwdriver set, 6-pieces + voltage tester.


  • CMP-200F | Measurement of voltage, current, resistance, capacitance.
  • NZ-2 | Assembly and disassembly of screw connections.
  • NZ-2 | Detection of voltage presence.

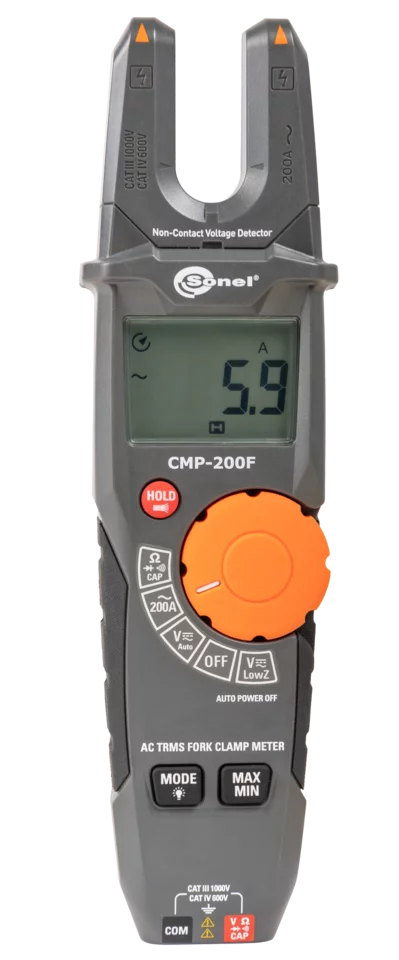

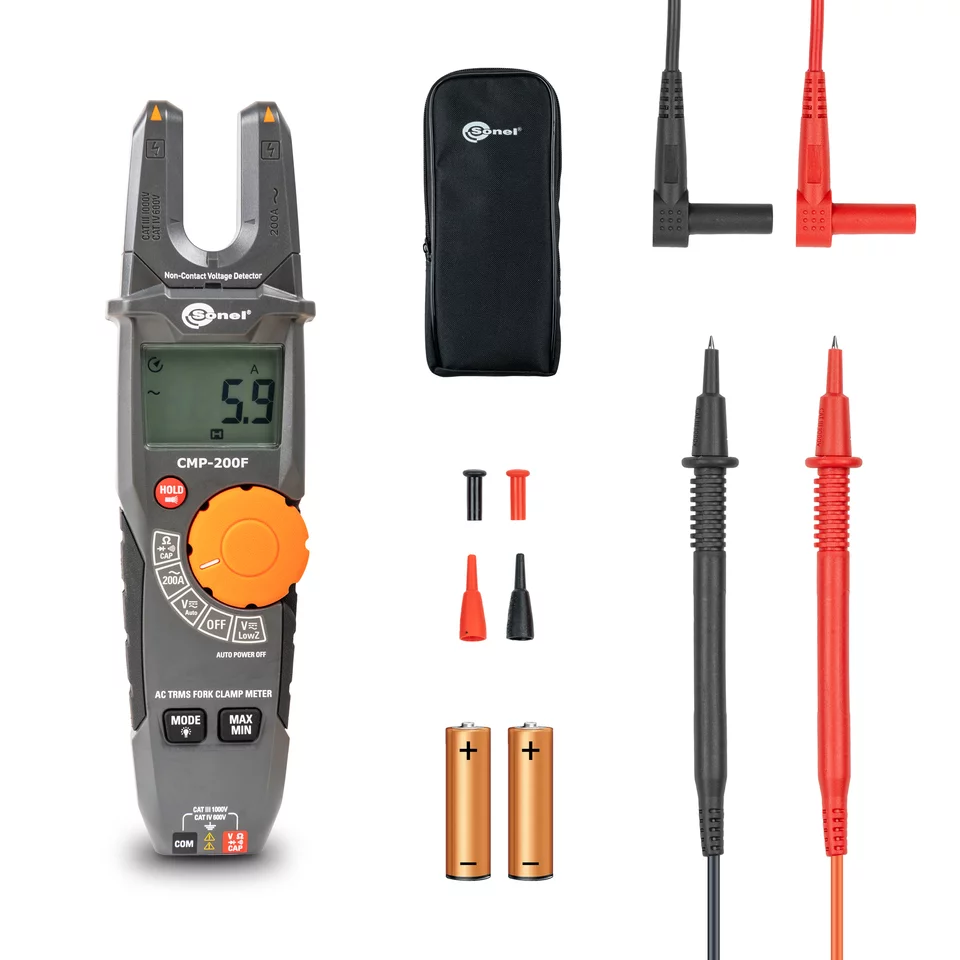

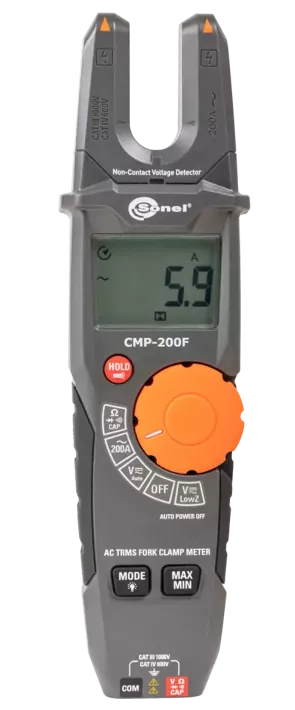

Fork clamp meter


  • Fork-style clamp.
  • AC current and AC voltage measurement.
  • DC voltage measurement.
  • Low-impedance voltage measurement - Low Z.
  • Current measurement up to 200 A AC.
  • Automatic selection of measuring ranges.
  • HOLD function, allowing for freezing the result on the display.
  • Function MAX/MIN for displaying extreme values.
  • Auto-OFF function.

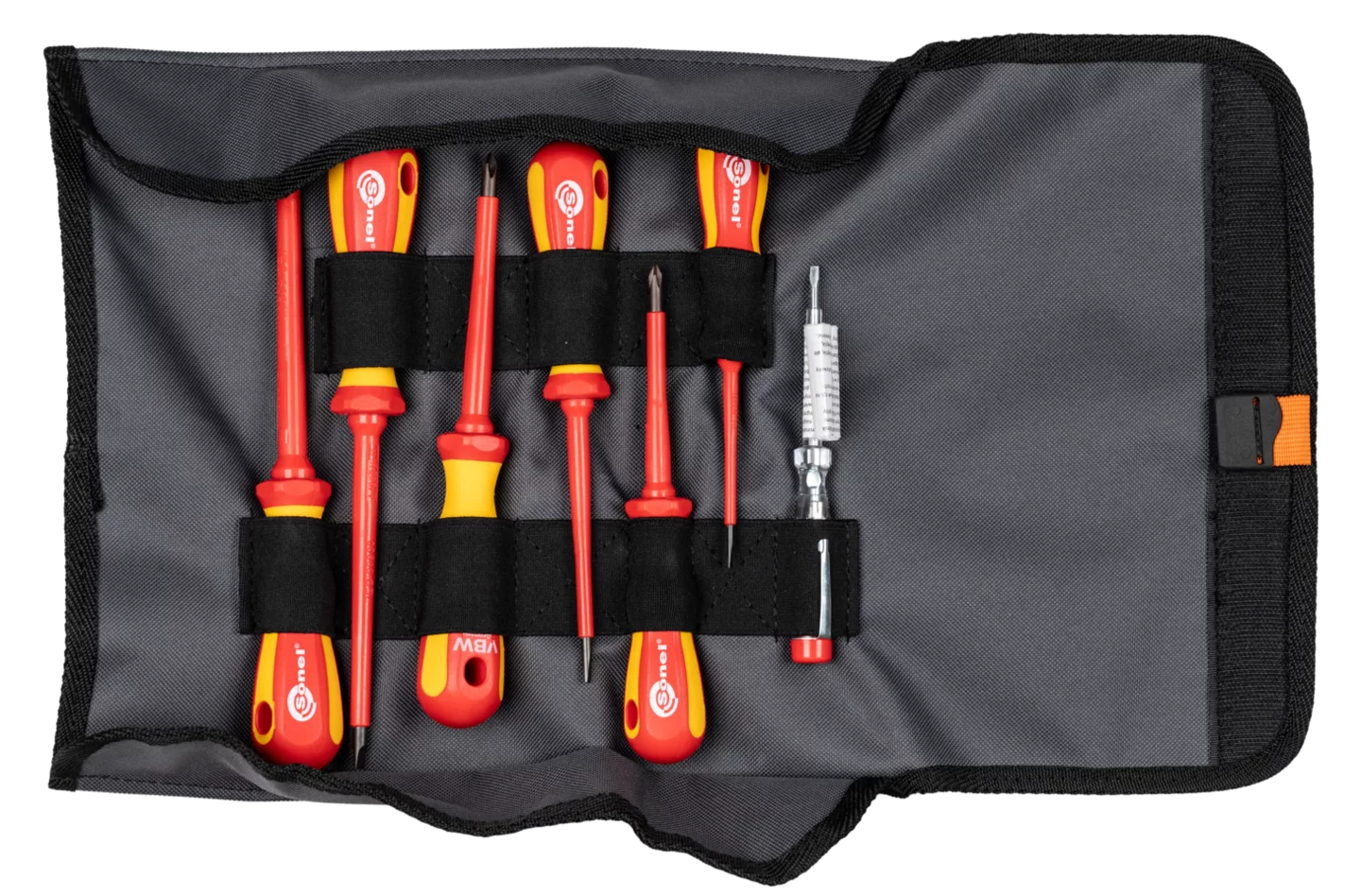

Screwdriver set, 6-pieces + voltage tester

Sonel screwdriver has a rugged shaft and handle connection. Ergonomically designed handle means powerful fatigue-free use and optimum torque transfer. Specially selected materials ensure excellent shock resistance of the handle. High-precision tips compatible with DIN EN ISO guarantee perfect screw fit.

The set consists of:

  • 4x Flat-Head 223-1:
    • 0.4x2.5x75
    • 0.8x4.0x100
    • 1.0x5.5x125
    • 1.2x6.5x150
  • 2x Phillips-Head 224-1:
    • PH 1x80
    • PH 2x100
  • Voltage tester 120-250 V~
