| Parameter | Description |
|---|---|
| Thermal imager | |
| Detector resolution | 400 x 300 |
| Detector | 17 μm |
| Frame rate | 25 Hz |
| Sensitivity | ≤ 40 mK |
| Lens (field ofvision/ focal distance) | 38° x 28°/ 9.7 mm |
| Accuracy | ≤ ±0.3°C | 0.5°F (ambient temperature 16°C...32°C) |
| Measurement range | -10...+50°C | 14...122°F |
| Calibration | Built-in shutter and external black body, automatic calibration after selecting mode |
| Visual camera | |
| Resolution | 2 MPix |
| Frame rate | 25 Hz |
| Functions | |
| Parameter settings | Warning switch and warning threshold value, number of warning targets,warning photos automatic clearing, shielding fixed high temperature objects |
| Face tracking | Intelligent face tracking, Supported from V 1.0.9.0 |

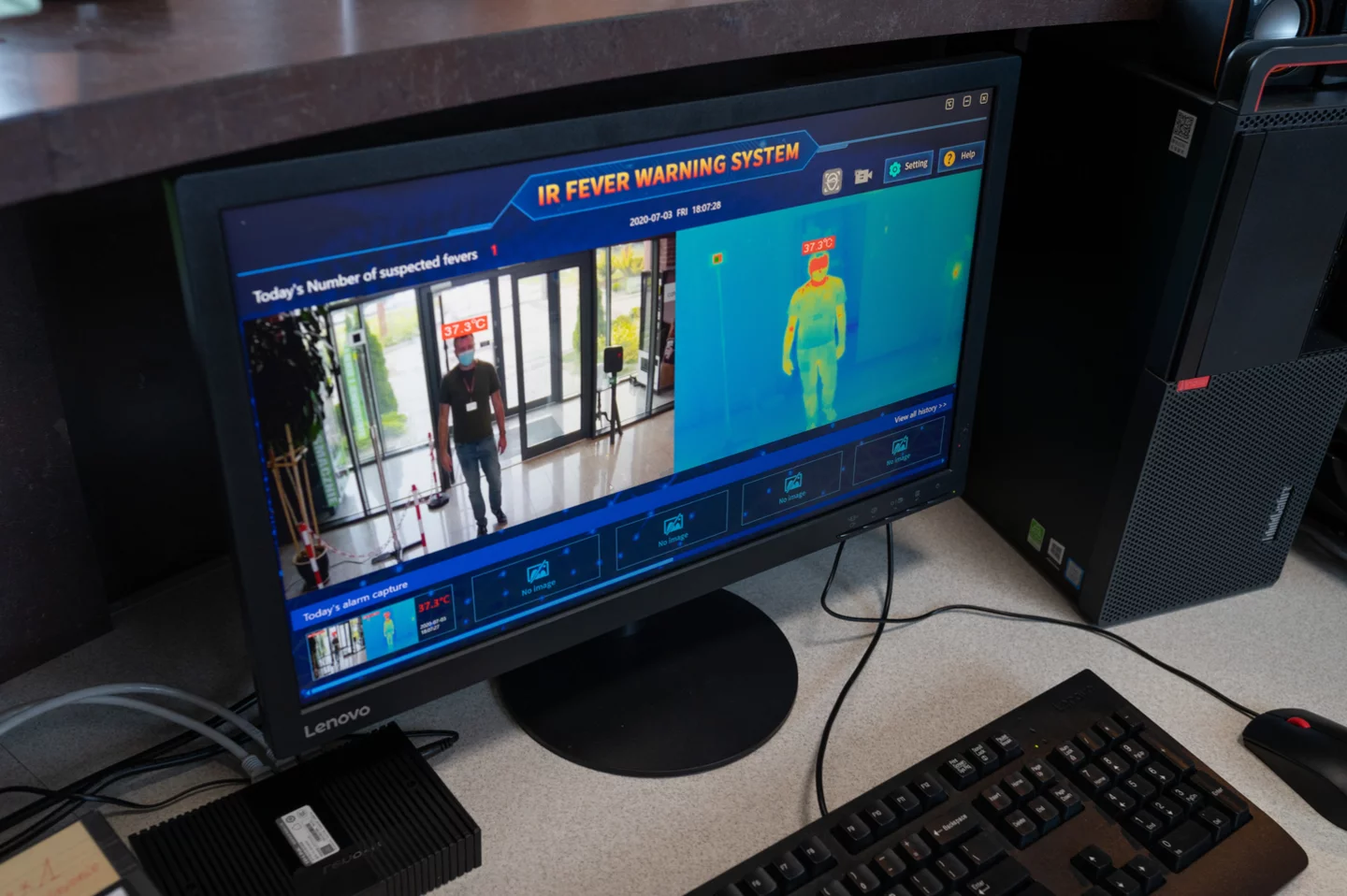

| Real-time preview | Real-time preview of visible and thermal image |
| Real-time spot temperature detection | Real-time temperature monitoring at any point in the field of view |
| Automatic tracking | Support automatic tracking for elevated temperatures |
| Automatic warning | Automatic tracking, warning and photo capturing for storage when people withfevers are identified; Warning while the Black Body is blocked |
| Historical records | Support query, classification and deletion of historical warning screenshots |
| Video recording | Support. The software needs to be upgraded to V1.1.0.9, and equipped with NVR(NVR standard 4T hard disk), support GB28181 protocol to access third-party platforms |
| Network communication protoco | HTTP, RTSP |
| Environmental conditions | |
| Operating temperature | -10...+50°C | 14...122°F (ambient temperature 16°C...32°C) |
| Storage temperature | -20...+60°C | -4...140°F |
| Humidity | < 90% (non-condensing) |
| Shock | 30 g 11 ms, IEC60068-2-27 |
| Vibration | 10 Hz ~ 150 Hz ~ 10 Hz 0.15mm, IEC60068-2-6 |
| Black body | |
| Black body target surface uniformity | ≤0.1°C | 0.2°F |
| Temperature stability accuracy | ≤ ±0.2°C | ±0.4°F (single point) |
| Camera head interface | |
| Network interface | Two-way, visible light 100 M, infrared 1000 M |
| Camera head power | |
| Input voltage | DC 12 V |
| Input power | ≤ 12 W |
official Sonel store
Fast shipping
Free shipping from 200SGD
Contact: [email protected]
WhatsApp: +65 8024 1772
0
Login

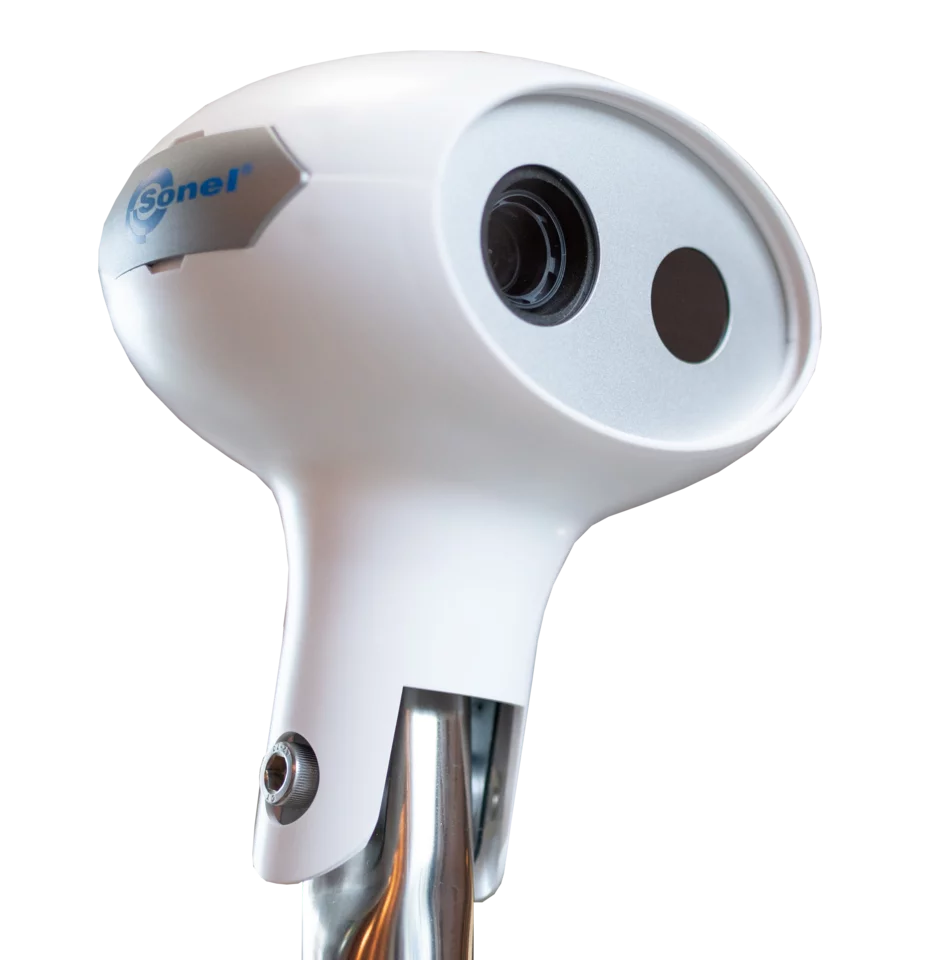

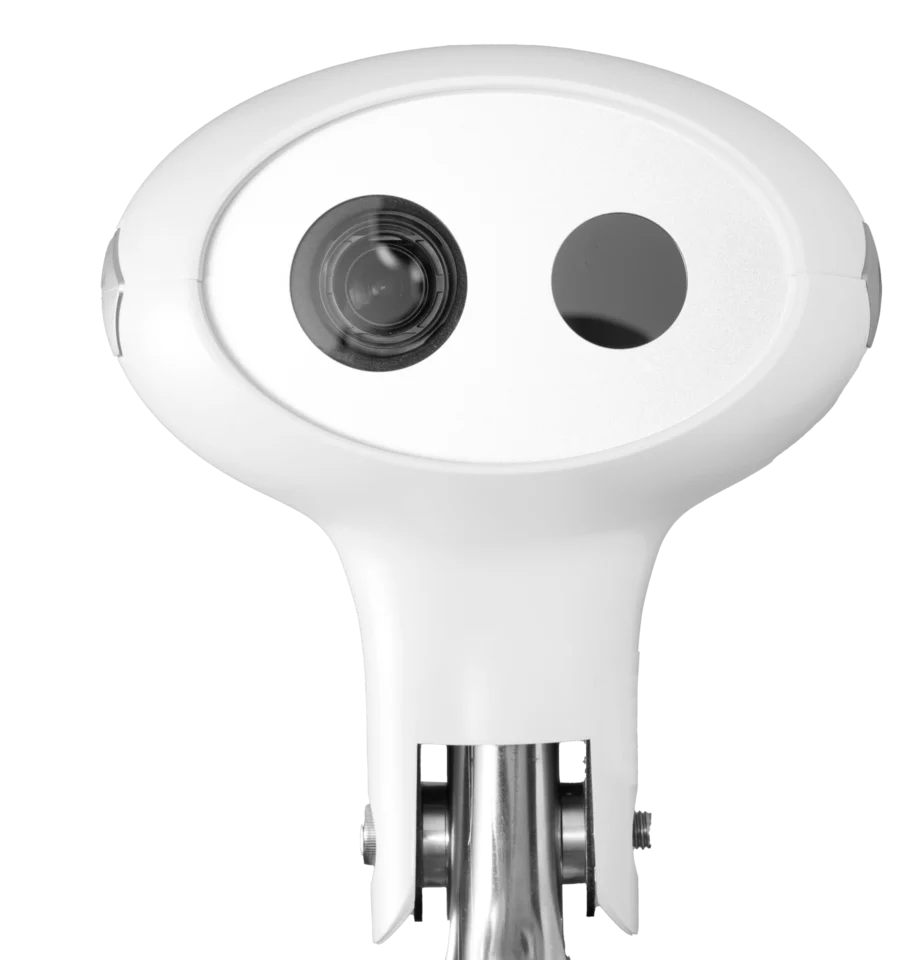

Sonel KT-800M IR Fever Warning System can be applied to mass fever screening in crowded public places, which helps detect people with potential fever. It may contain or limit the spread of diseases through identification of infected individuals showing fever symptoms. Sonel KT-800M combines advanced technology such as thermographic human temperature detection and AI intelligent face tracking which makes the equipment accurate and easy to use. Sonel KT-800M is equipped with various powerful functions. Multi-target tracking ensures that no target is missed. Custom warning zones and high-temperature shielding settings help avoiding interference from other high-temperature objects. When a feverish person is detected, the system supports automatic warning, tracking and photo taking for storage. It also supports video recording. Convenient for query and classify management.
Application
Large-scale temperature screening at airports, railway stations, subway stations, hospitals, supermarkets, factories, schools and other places with large flow of people to control and reduce the spread of diseases with fever symptom, such as Novel Coronavirus, Ebola, SARS or Zika.
Mass fever screening

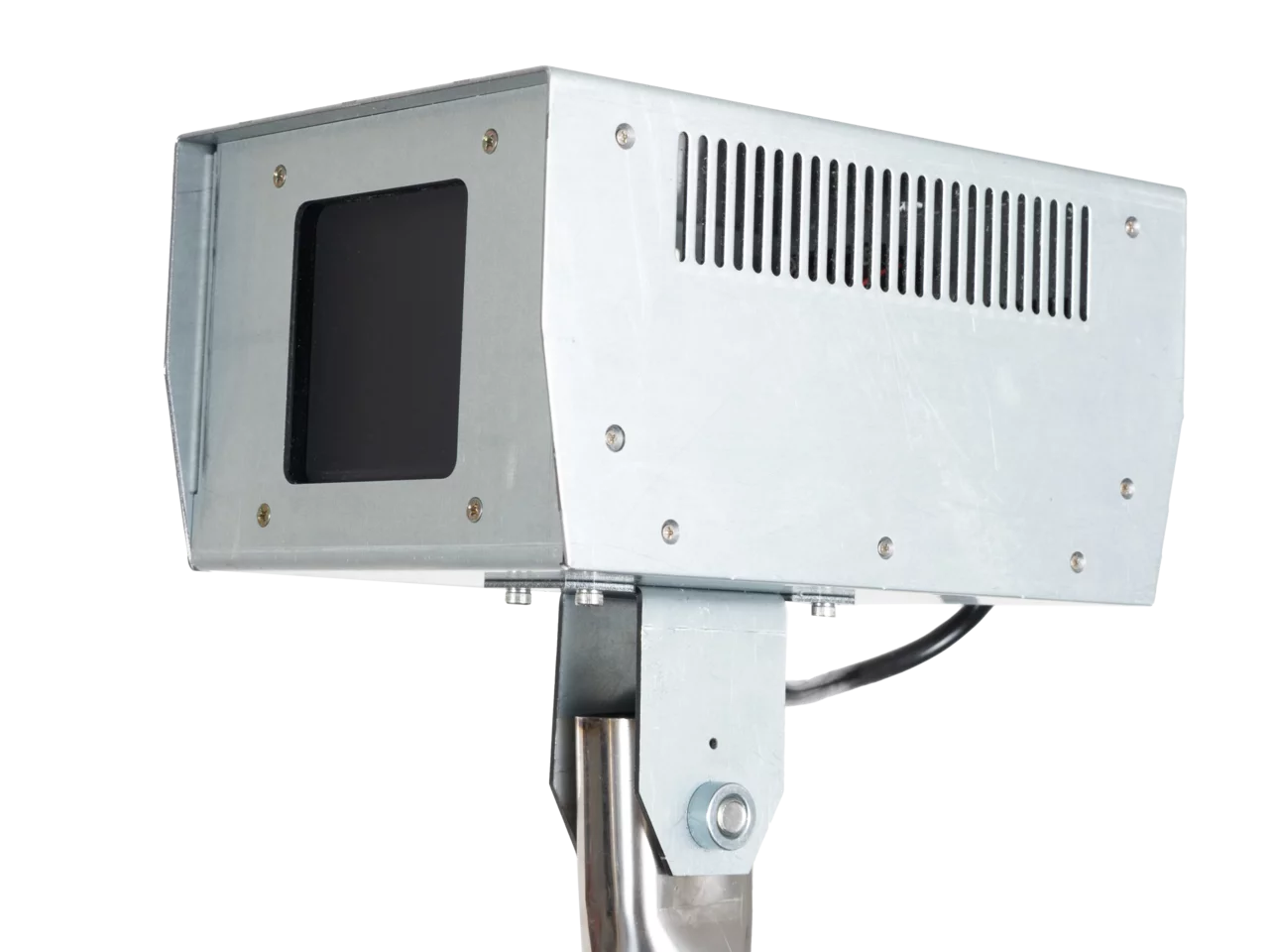

- Blackbody - real-time temperature calibration

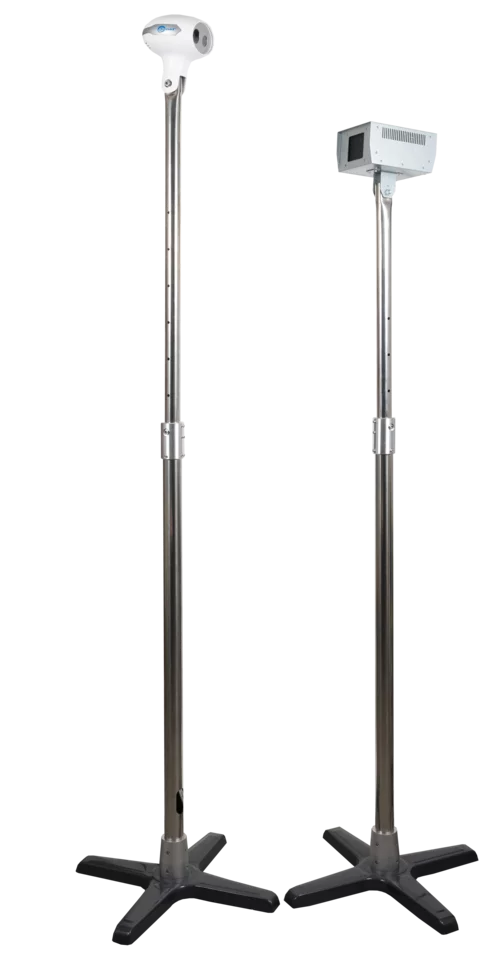

- Tripod - stable position at all times
- Dedicated PC - supervision on the post
- Alarm database - spot-and-save
Overview
Sonel KT-800M IR Fever Warning System can be applied to mass fever screening in crowded public places, which helps detect people with potential fever. It may contain or limit the spread of diseases through identifi cation of infected individuals showing fever symptoms. Sonel KT-800M combines advanced technology such as thermographic human temperature detection and AI intelligent face tracking which makes the equipment accurate and easy to use.
Sonel KT-800M is equipped with various powerful functions. Multi-target tracking ensures that no target is missed. Custom warning zones and high-temperature shielding settings help avoiding interference from other high-temperature objects. When a feverish person is detected, the system supports automatic warning, tracking and photo taking for storage. It also supports video recording. Convenient for query and classify management.
Application
Large-scale temperature screening at airports, railway stations, subway stations, hospitals, supermarkets, factories, schools and other places with large flow of people to control and reduce the spread of diseases with fever symptom, such as Novel Coronavirus, Ebola, SARS or Zika.
Features
- 400 x 300 px infrared uncooled Vox detector
- Automatic focus on a person's face
- Warning sound alarm when a person with fever is detected
- Accurate single-point and multi-point high temperature tracking and warning
- AI deep learning algorithm based on neural network provides more accurate temperature detection and lower false warning rate
- Real-time temperature calibration with blackbody ensures high accuracy
- Stand-type, easy to deploy, equipped with PC with powerful analysis software
