| Parameter | Description |
|---|---|
| Basic technical data | |
| Heating panel temperature | |
| • Regulation range | 40°C...60°C |
| • Reading accuracy | ±2% |
| • Resolution of readings | 0.1°C |
| • Resolution of settings | 1°C |
| • Hysteresis | ±1.5°C |
| • Temperature stabilization time | <5 min |
| Heating panel dimensions | 275 x 110 mm |
| Display | LED |
| Power supply | 24 V DC |
| Power consumption | max. 100 W |
| Thermal protection | 85°C |
| Safety and work conditions | |
| Ingress protection | IP20 |
| Type of insulation according to EN 61010-1 | CAT II 300 V |
| Operating temperature | 10…+40°C |
| Storage temperature | -20…+70°C |
0
Login

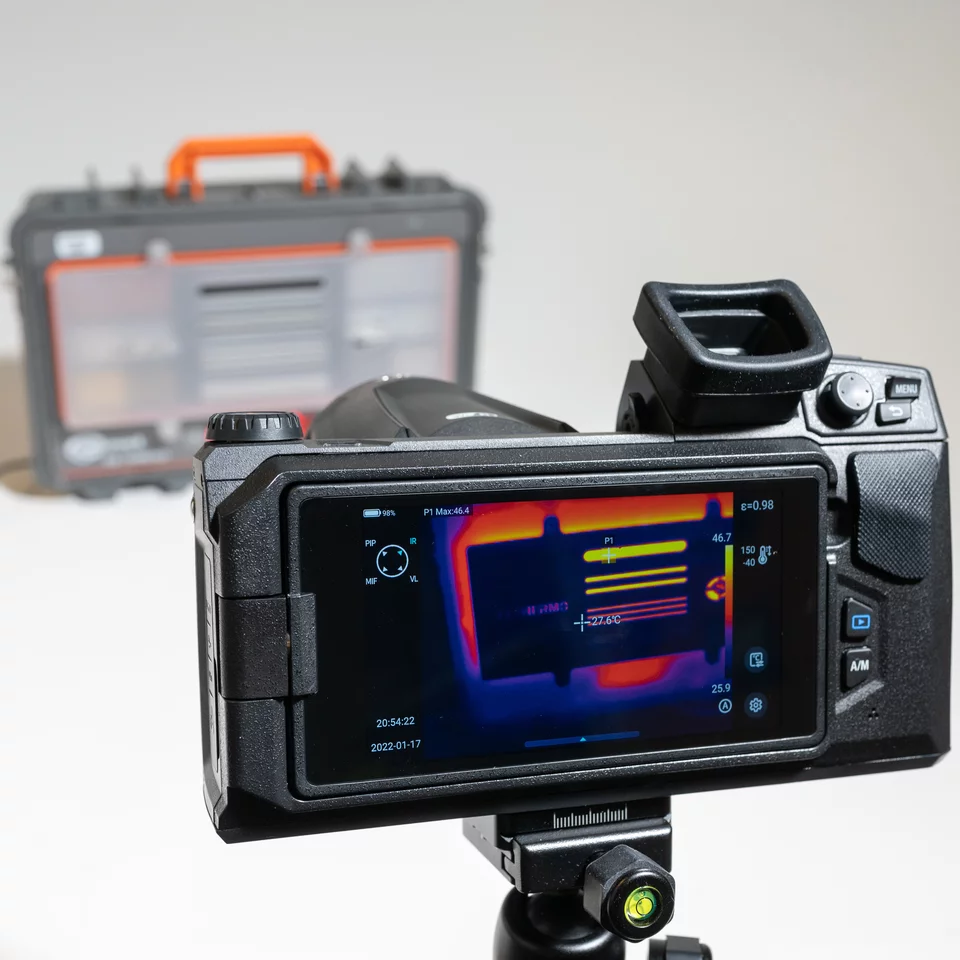

Training in thermal imaging and non-contact temperature measurements
The DB-THERMO board is an indispensable device during any training on contactless temperature measurements and thermal imaging with the use of thermographic cameras. DB-Thermo helps to understand the phenomena related to the emissivity of different materials and the influence of surface type on temperature measurement.
The DB-THERMO set includes instructions describing all topics concerning thermal imaging.

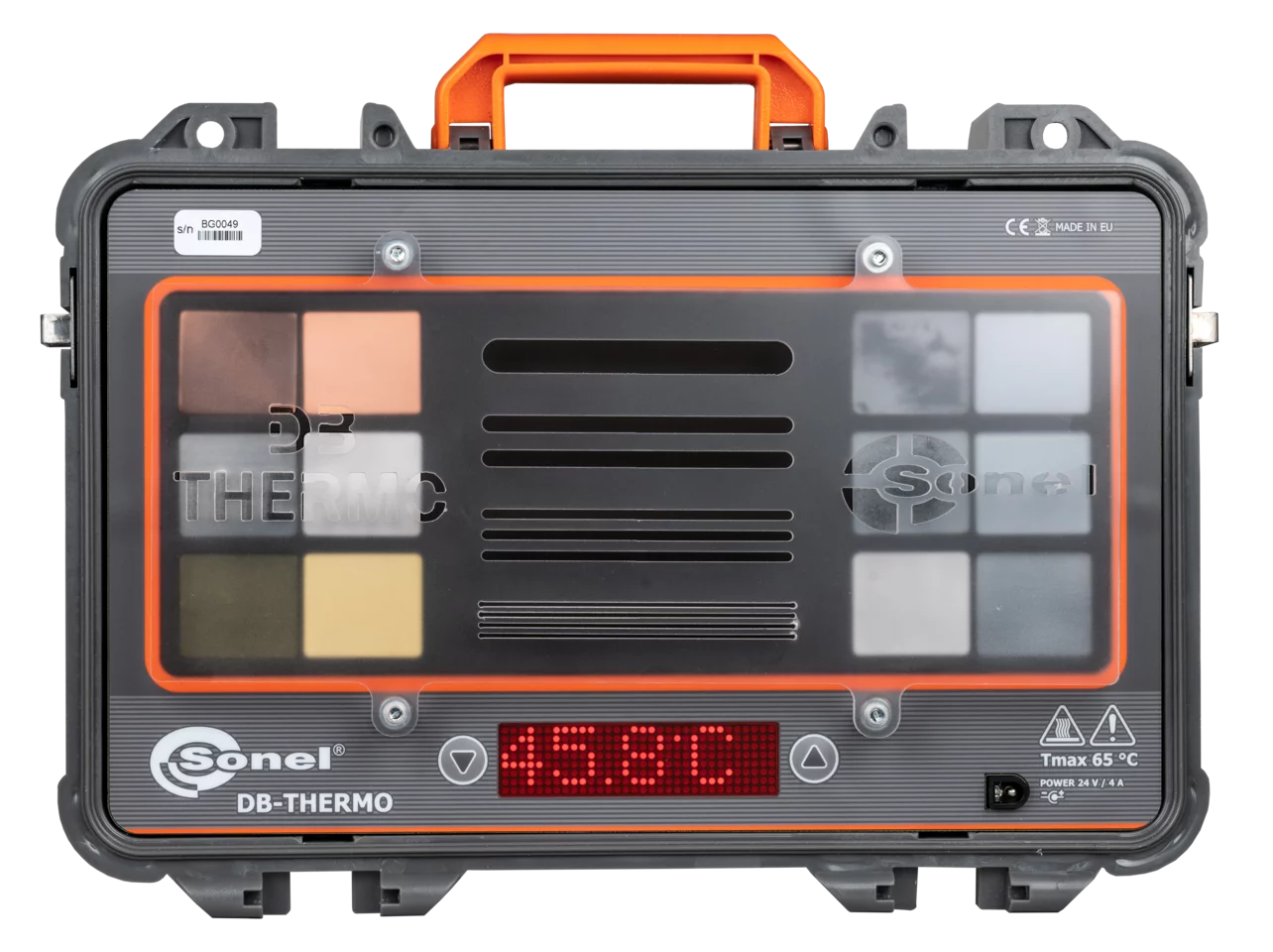

The device is enclosed in a solid briefcase housing with a detachable cover.

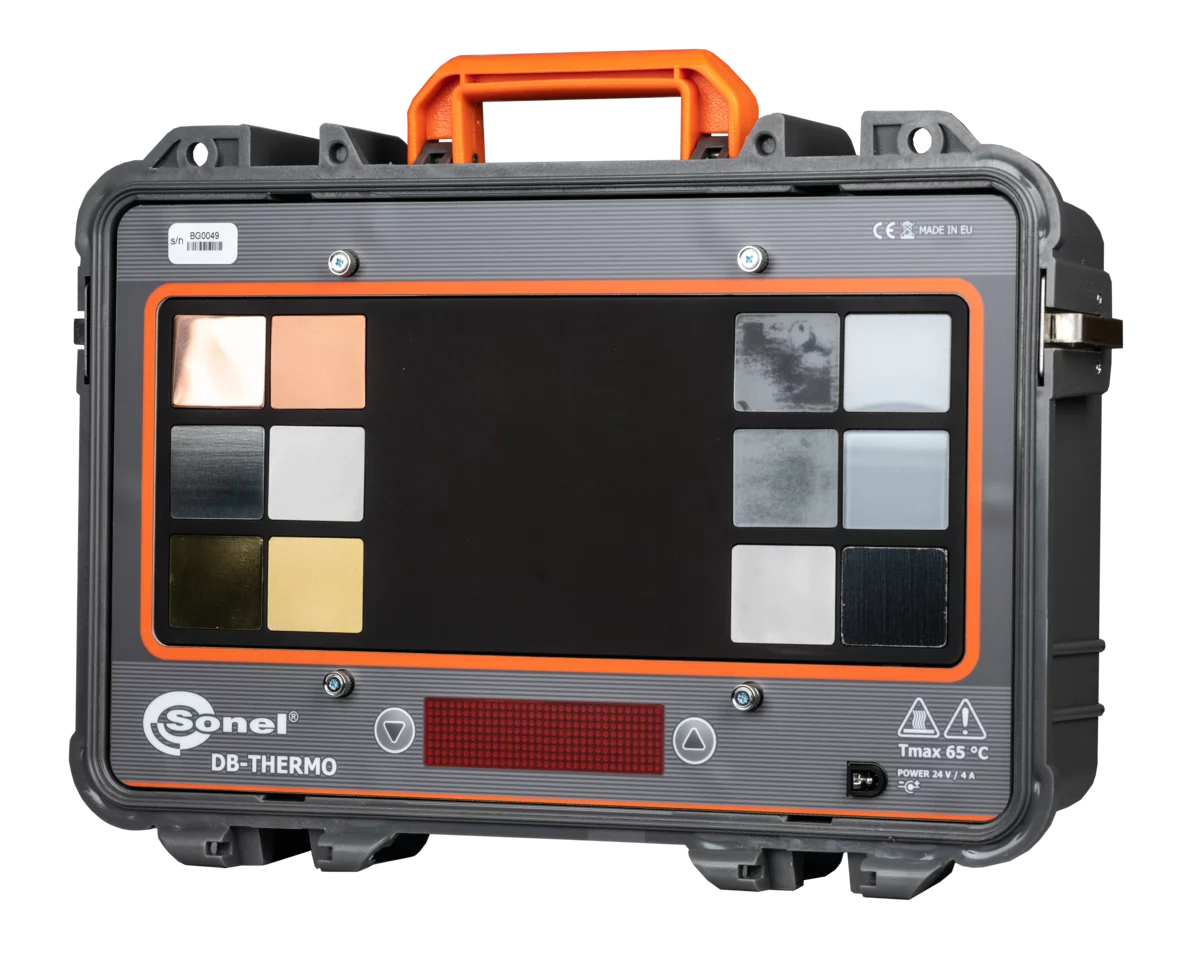

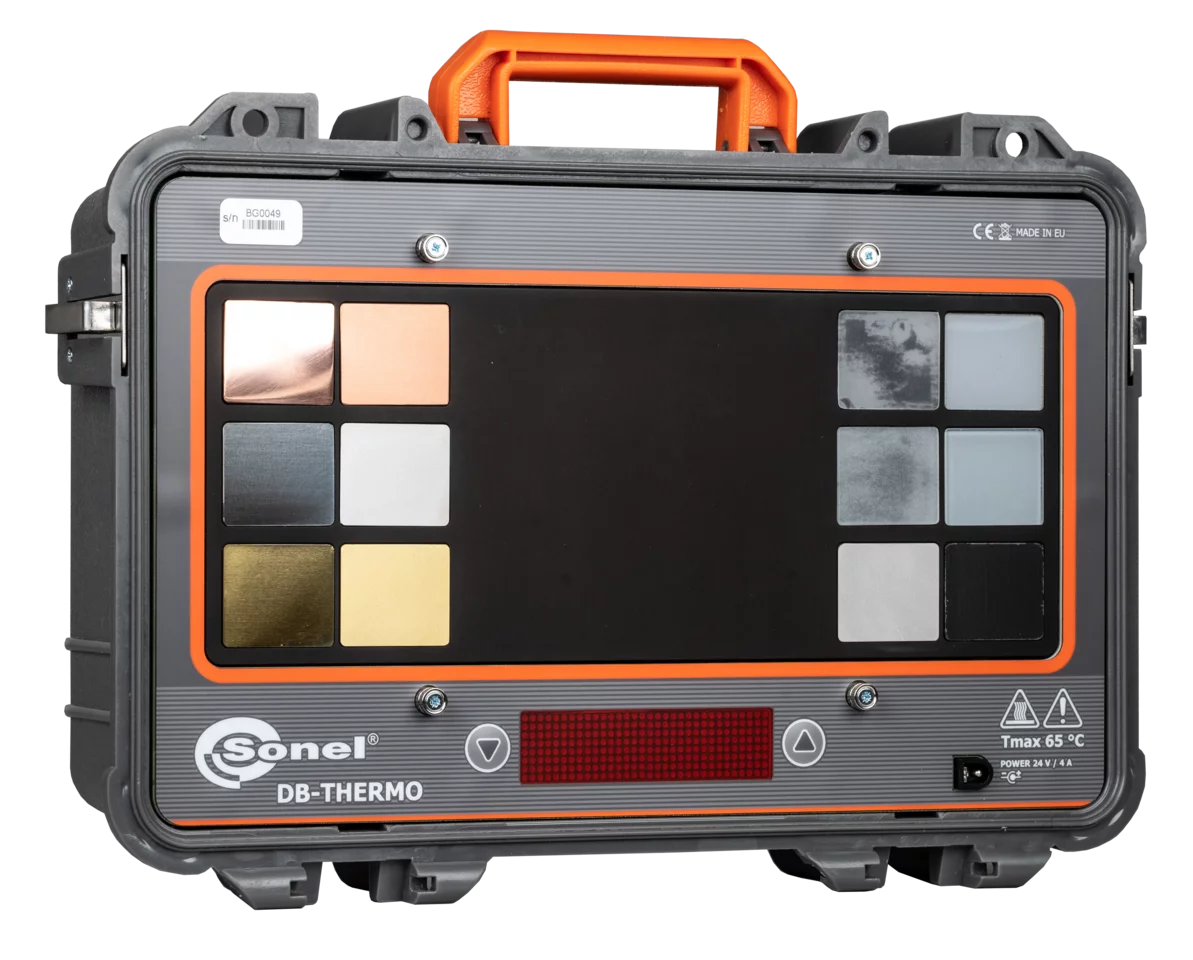

DB-THERMO has a heating panel with an emissivity of 0.98 as well as plates made of various typical materials, with matte and polished surfaces. A programmable controller keeps watch over the temperature of the heating panel. The user may select a temperature from within the range of 40...60°C. The LED display reads the current panel temperature.
| Parameter | Value |
|---|---|
| Net weight (kg) | 2.6 |
| Package weight (kg) | 3.2 |
| Package width (cm) | 40 |
| Package height (cm) | 30 |
| Package length (cm) | 24 |
