LKZ-2500 Lite

Cable and underground infrastructure locator

Index cat. WMGBLKZ2500LITE

ean 5907624014855

Ingress protection: IP 65

Additional accessories

N-1

Transmitting clamp (Φ=52 mm, incl. 2-wire c...

548,14 $

Available

PN-50

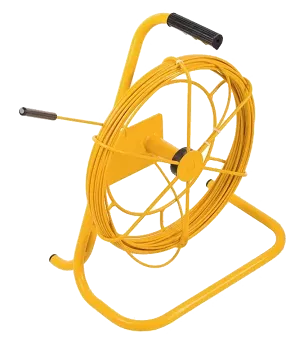

Wire to locate non-metalic instalations 50m...

2 197,30 $

Available

PN-80

Wire to locate non-metalic instalations 80m...

2 270,86 $

Available

N-4

Transmitting clamp (Ø110 mm)

635,94 $

Available

N-5

Transmitting clamp (Ø 125mm)

676,28 $

Available

XL-1

Universal bag

Shoulder harness, design 1

Control panel

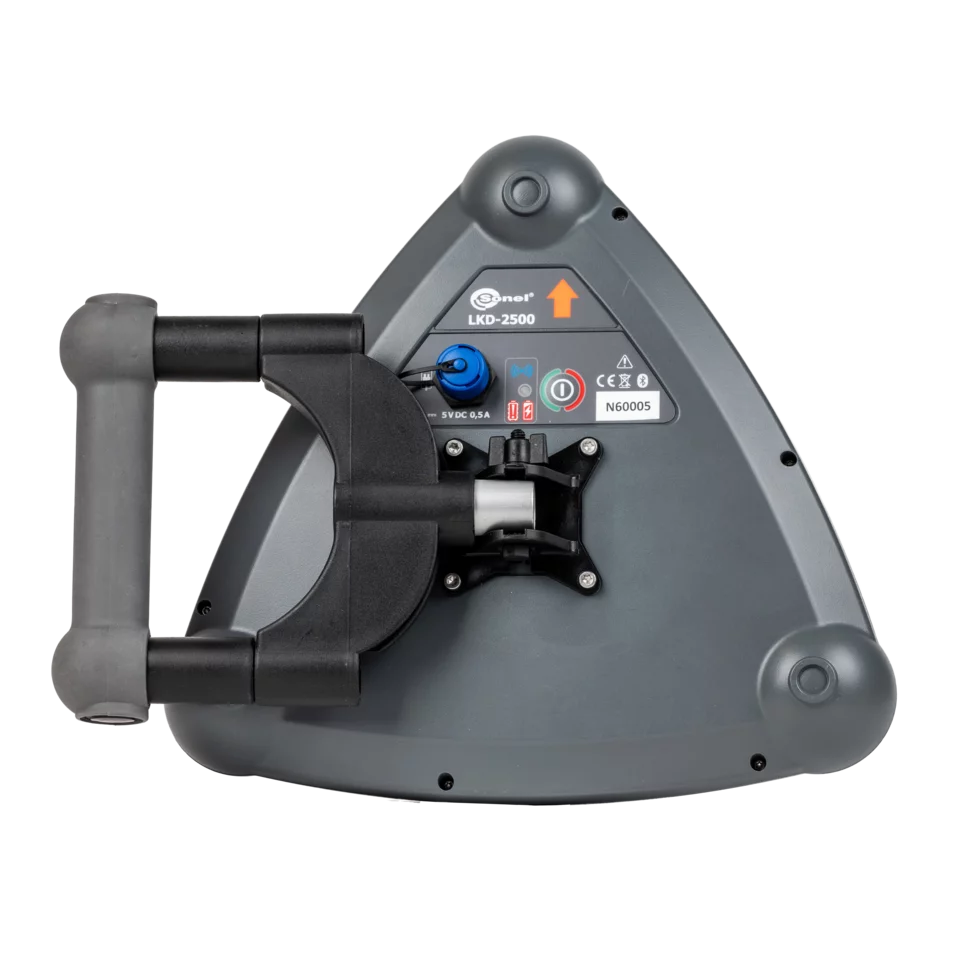

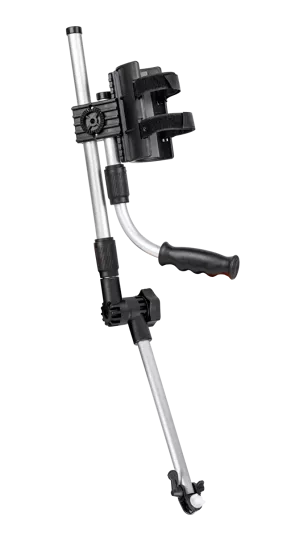

Long holder

Holder for control panel

Underground detectives

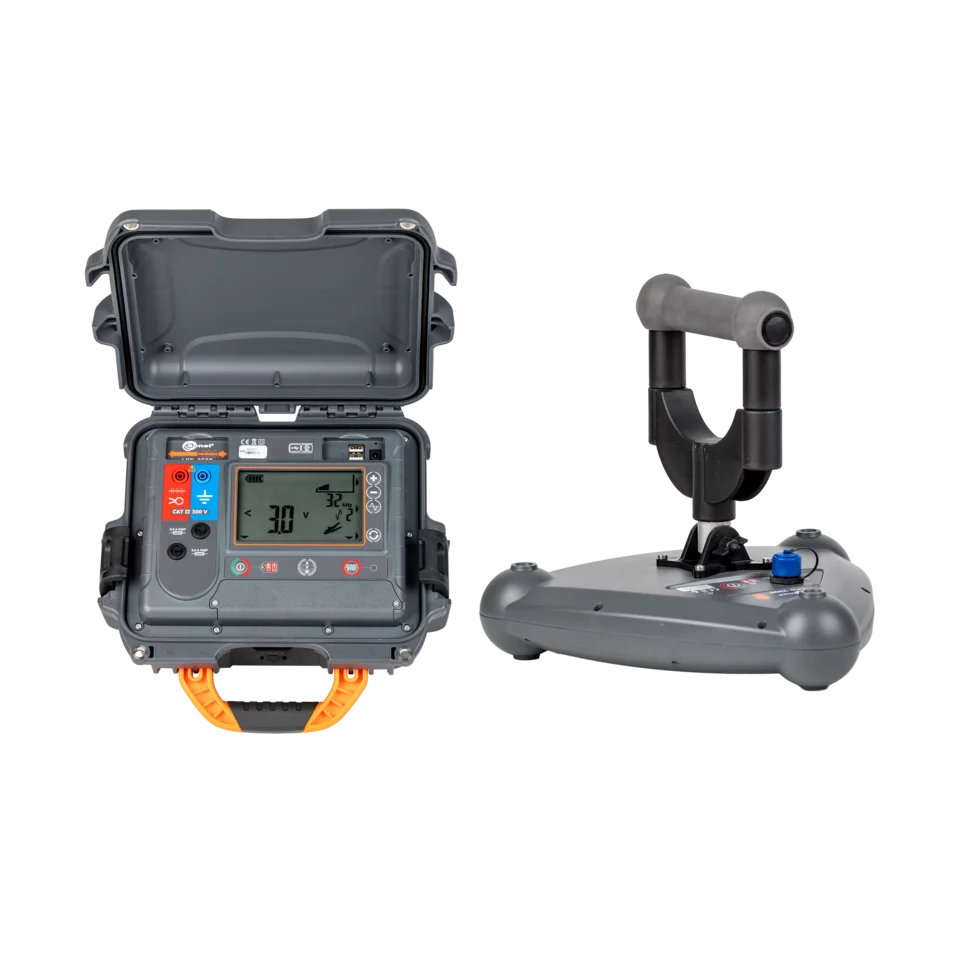

The LKZ locator set consists of a LKN transmitter and LKD detector. It allows for location, identification and tracking of the route of objects buried in the ground. It allows to trace:

  • power cords and cables, control cables, telecommunications cables,
  • underground elements of lightning protection systems, cathodic protection systems,
  • water and sewage systems,
  • fuel transmission systems (pipelines, gas pipelines)
  • heating systems and pre-insulated pipes.

The sets of LKZ series are an invaluable support in earthworks carried out for various industries, including energy, installation, construction, railway, telecommunications, water and sanitary, heating, geodetic and many others.

LKN-2500 transmitter injects a locating signal into an underground object. LKD-2500 detector placed along the object traces this signal along the object. The information about position of the traced object is displayed on the Sonel LKZ Mobile app which is connected with the detector. Determination of the object’s route is possible based on observation of compass readings and the level of the detected signal.

The system has the ability to trace cables and record routes via the mobile application. Such files can be exported and shared with other users – including those who do not have the LKN-2500 / LKD-2500 device.
The system is capable of operating in passive mode (without the use of the LKN-2500 transmitter) and active mode (with the use of the LKN-2500 transmitter). The active mode allows to introduce the signal in three different methods:

  • galvanic – injects tracing signal into the object directly, through crocodile clips and test leads,
  • clamp – injects tracing signal into the object through an inductive clamp,
  • inductive – injects tracing signal into the object inductively, using the instrument’s internal antenna.

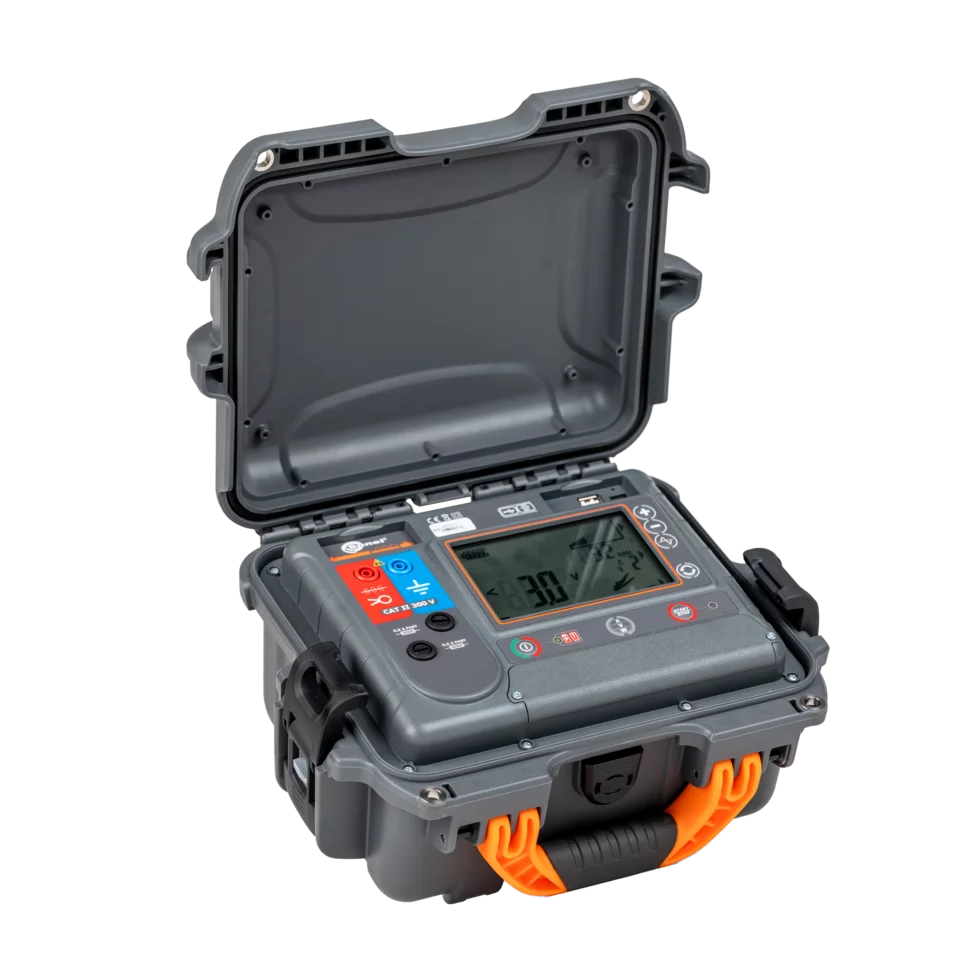

Transmitter

  • Operation in direct galvanic or inductive connection mode – internal transmitting antenna
  • Compatible with transmitting clamps
  • Rugged housing

Detector

  • Active mode
    • work with LKN-2500 transmitter at the frequencies of 8 kHz, 32 kHz (Signal mode)
  • Passive mode – work at the frequencies of:
    • 50 Hz, 60 Hz (Power mode)
    • 2...65 kHz (Radio mode)

Sonel LKZ Mobile

The application works with Sonel LKD-2500 detector. It enables tracing of objects, recording of routes in the memory of the mobile device along with GPS positions of waypoints and additional readings.

The application additionally enables:

  • live positioning preview,
  • measuring the distance to a specific waypoint,
  • export of routes to other mobile devices,
  • reading routes from the mobile device’s memory,
  • preview of all recorded parameters,
  • merging routes,
  • adding notes to routes and measurement points.
