| Parameter | Value |
|---|---|
| Net weight (kg) | 0.7 |
| Package weight (kg) | 0.8 |
| Package width (cm) | 24.2 |
| Package height (cm) | 6.5 |
| Package length (cm) | 15.8 |
official Sonel store
Fast shipping
Free shipping from 200SGD
Contact: [email protected]
WhatsApp: +65 8024 1772
0
Login

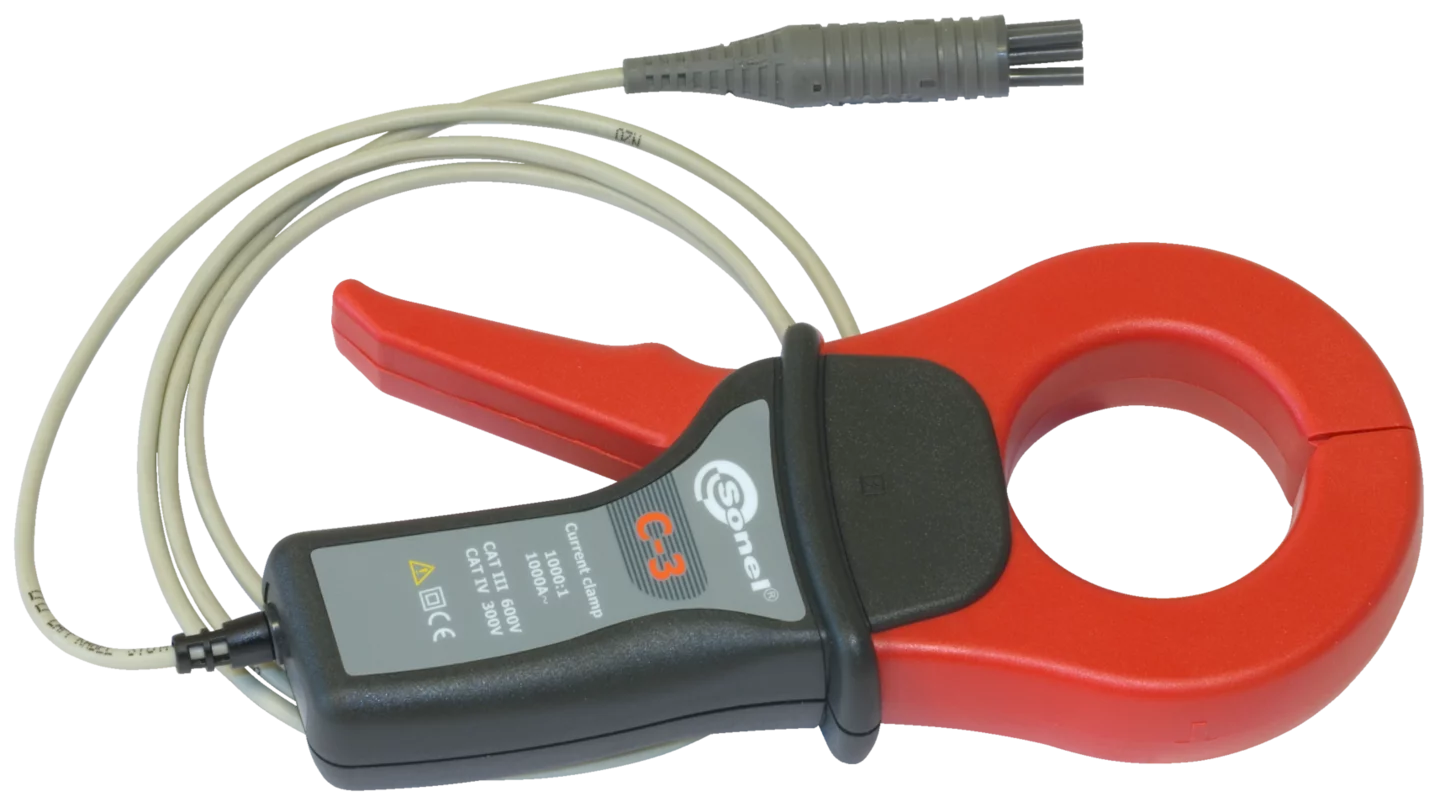

The clamp is used to measure alternating currents. The maximum diameter of the tested conductor is 52 mm. It is terminated with a 5-pin plug, compatible with Sonel devices. Using of the clamp eliminates the need to disconnect control connections, significantly reducing the testing time. This clamp allows user to determine the type of current flowing through the tested earthing element and to check the resulting voltage drop.
With the help of this clamp, a number of tests can be carried out on devices that are permanently connected to the mains:
- measurement of PE leakage current,
- measurement of differential leakage current in L and N wires,
- measurement of power consumption.
This product fits:
