| Parameter | Description |
|---|---|
| Acoustic parameters | |

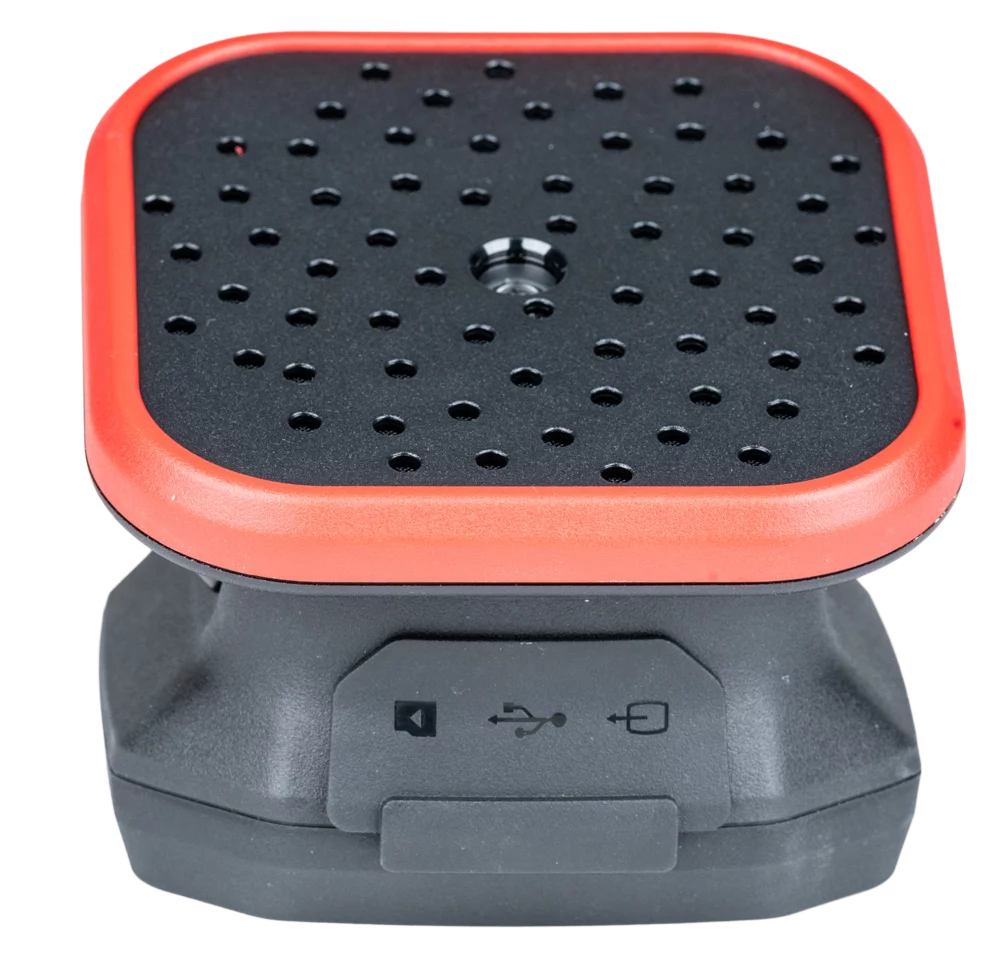

| Number of microphones | 64 |
| Bandwidth | 2 kHz…65 kHz |
| Distance | 0.3 m…100 m | 1.0 ft…328 ft |
| Camera FOV | 51.8° x 36.4° |
| Sound intensity display | Peak Point, Center Point |
| Acoustic image frame rate | 25 fps |
| Signal noise ratio | 70 dB |
| Acoustic image resolution | 800 x 480 |
| Acoustic image palettes | 8 |
| Leak rate | >0.008 l/min @ 6 bar from 0.5 m | 1.64 ft >0.013 l/min @ 5 bar from 1 m | 3.28 ft |
| Image display | |
| Display | 800 x 480 px, 4.3” LCD, touchscreen |
| Digital zoom | 1.0x…8.0x |
| Screen brightness | Manual / Auto |
| Memory | |
| Storage media | Removable 64 GB SD card |
| Image storage capacity | 20 000 images |
| Video storage capacity | 60 hours |
| Video file format | MP4 |
| Annotations | Voice note: max. 60 seconds Text note: max. 200 characters |
| Power supply system | |
| Power supply | 5 V DC/ 2 A (charging via USB) |

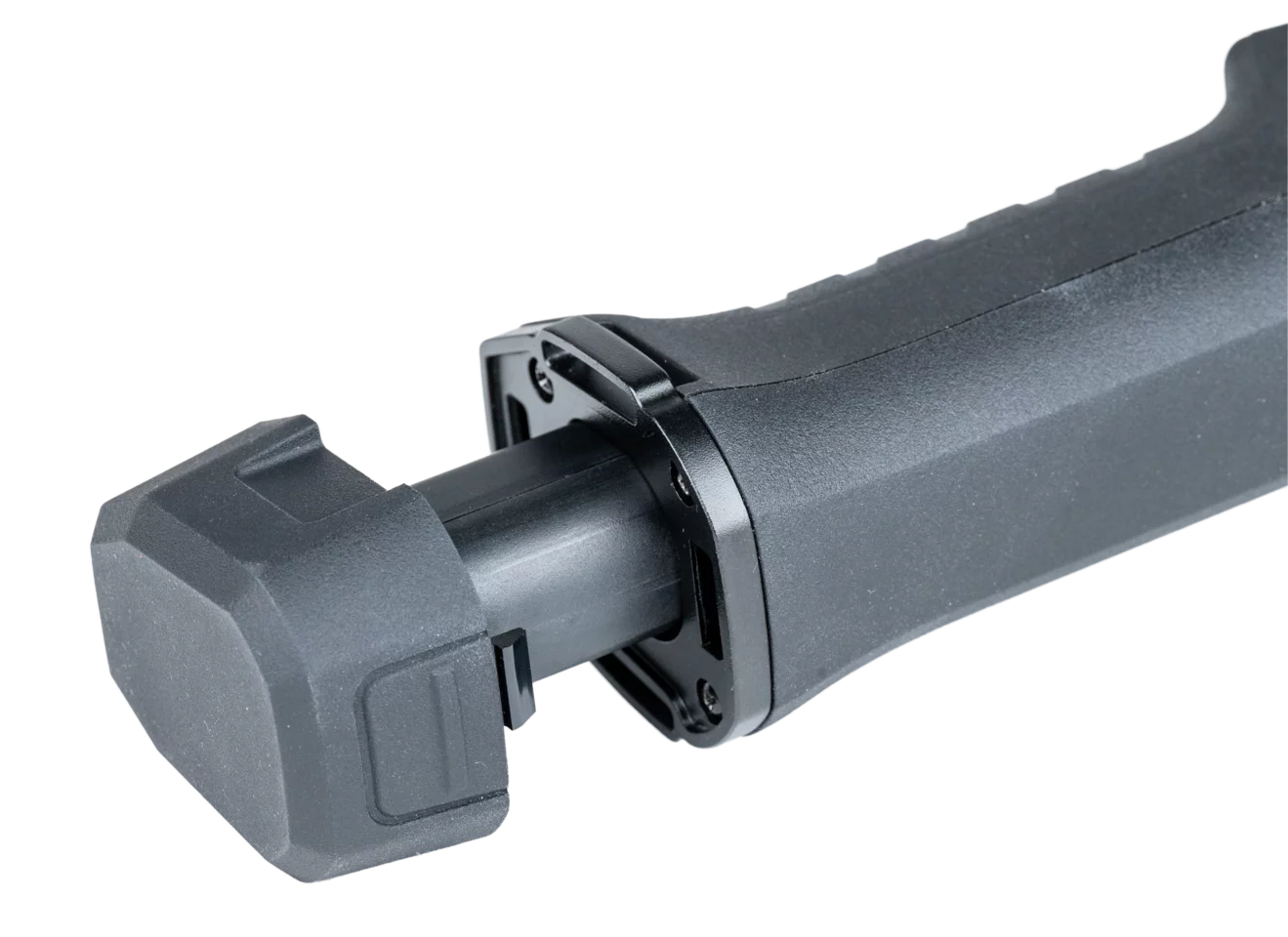

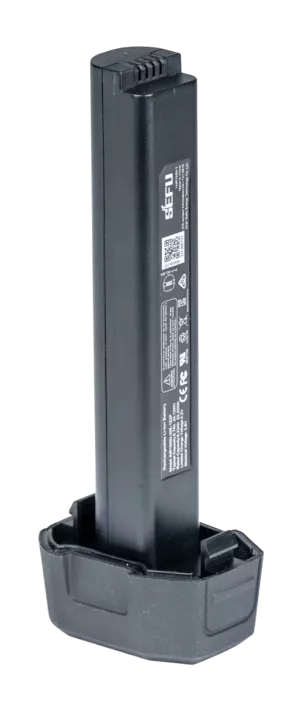

| Battery type | Dismountable and rechargeable Li-Ion battery |
| Battery operating time | Approx. 3.5 hours |
| Battery charging time | 5 hours to full charge |
| Communication | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| USB interface | USB Type-C |
| HDMI interface | HDMI-D |
| Environmental conditions | |
| Protection level | IP40 |
| Operating temperature | -20°C…50°C | -4°F…122°F |
| Storage temperature | -20°C…60°C | -4°F…140°F |
| Relative humidity | <95% without condensation |
| Drop test height | 1.2 m | 3.94 ft |
| Safety | IEC 61010-1 |
| EMC | EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3 |
| Weight | Approx. 940 g | 2.07 lb |
| Dimensions | 292 x 127 x 111 mm | 11.5” x 5.0” x 4.4” |

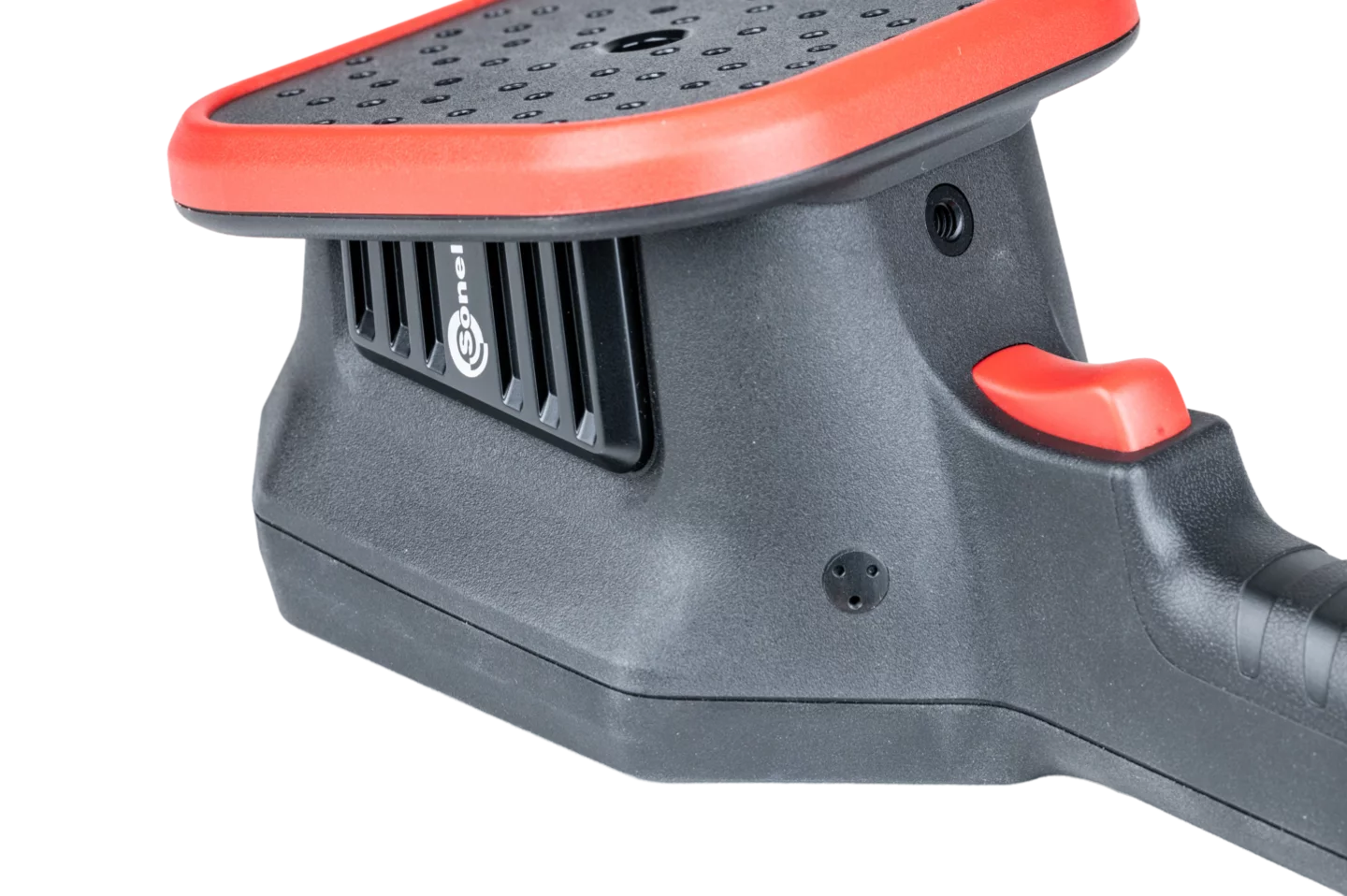

| Tripod mounting | UNC ¼”-20 |
0
Login
popular
See the sound and save money

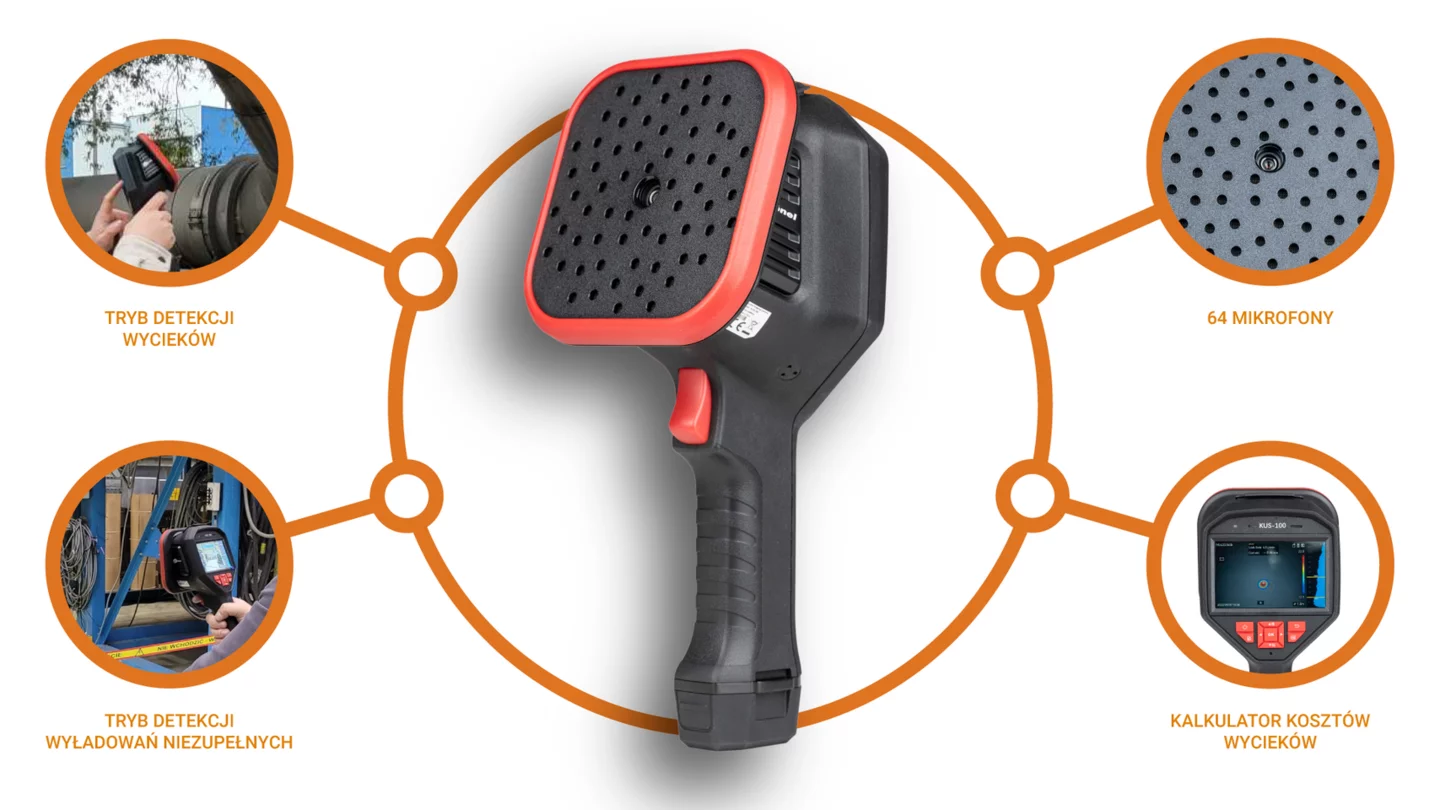

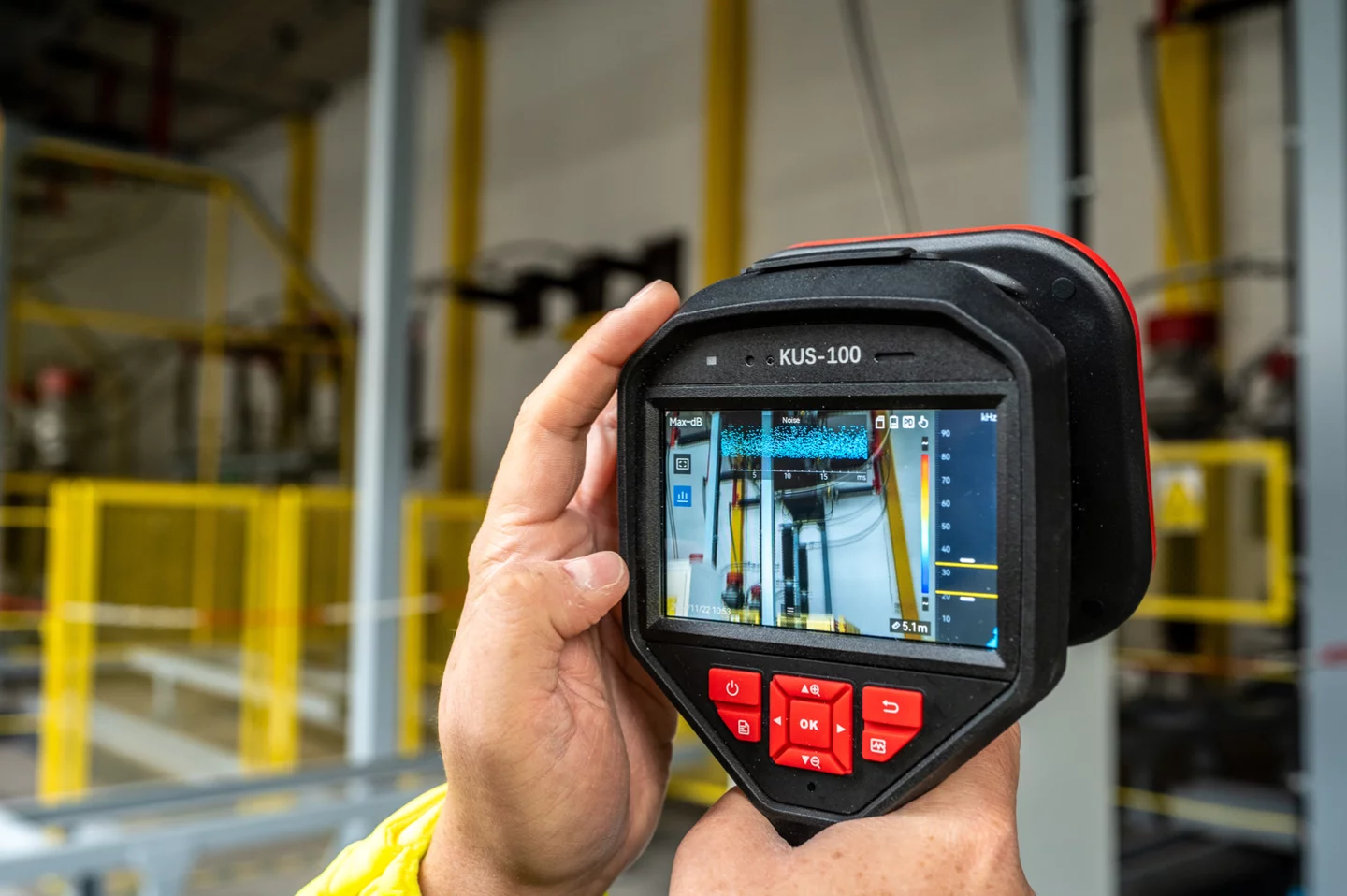

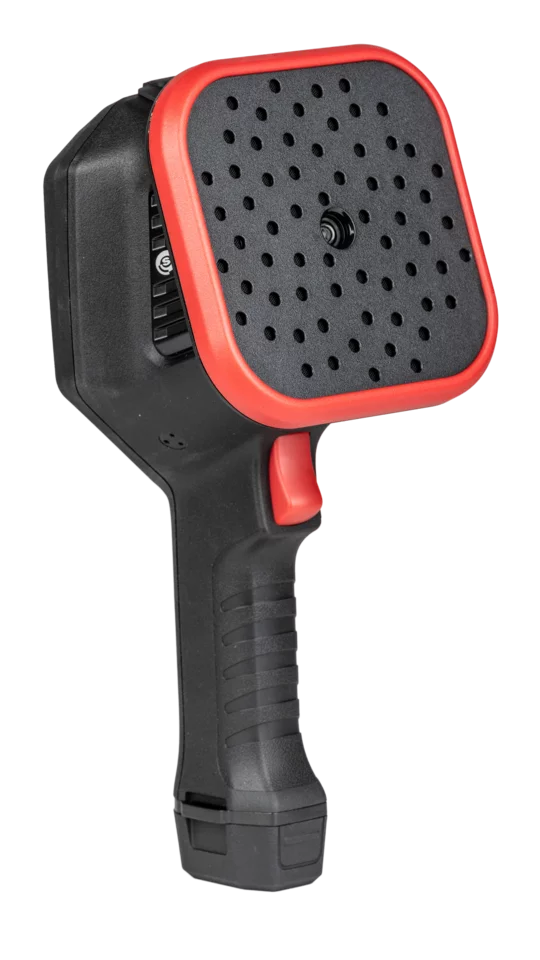

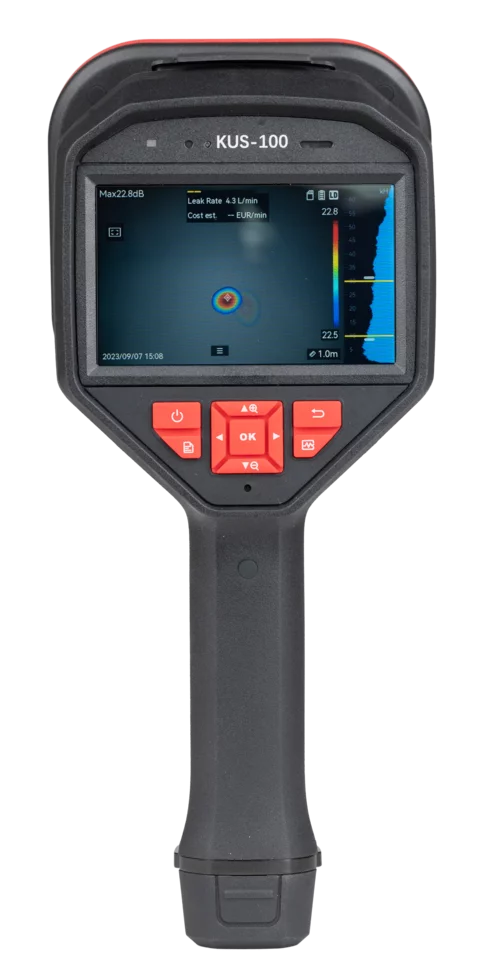

Sonel KUS-100 acoustic imager, with the help of a built-in microphone array, effectively detects sources of acoustic emission such as leaks of compressed agents in industrial installations or partial discharges in the power utility industry. It is a vital diagnostic tool, allowing significant savings by reducing energy losses.

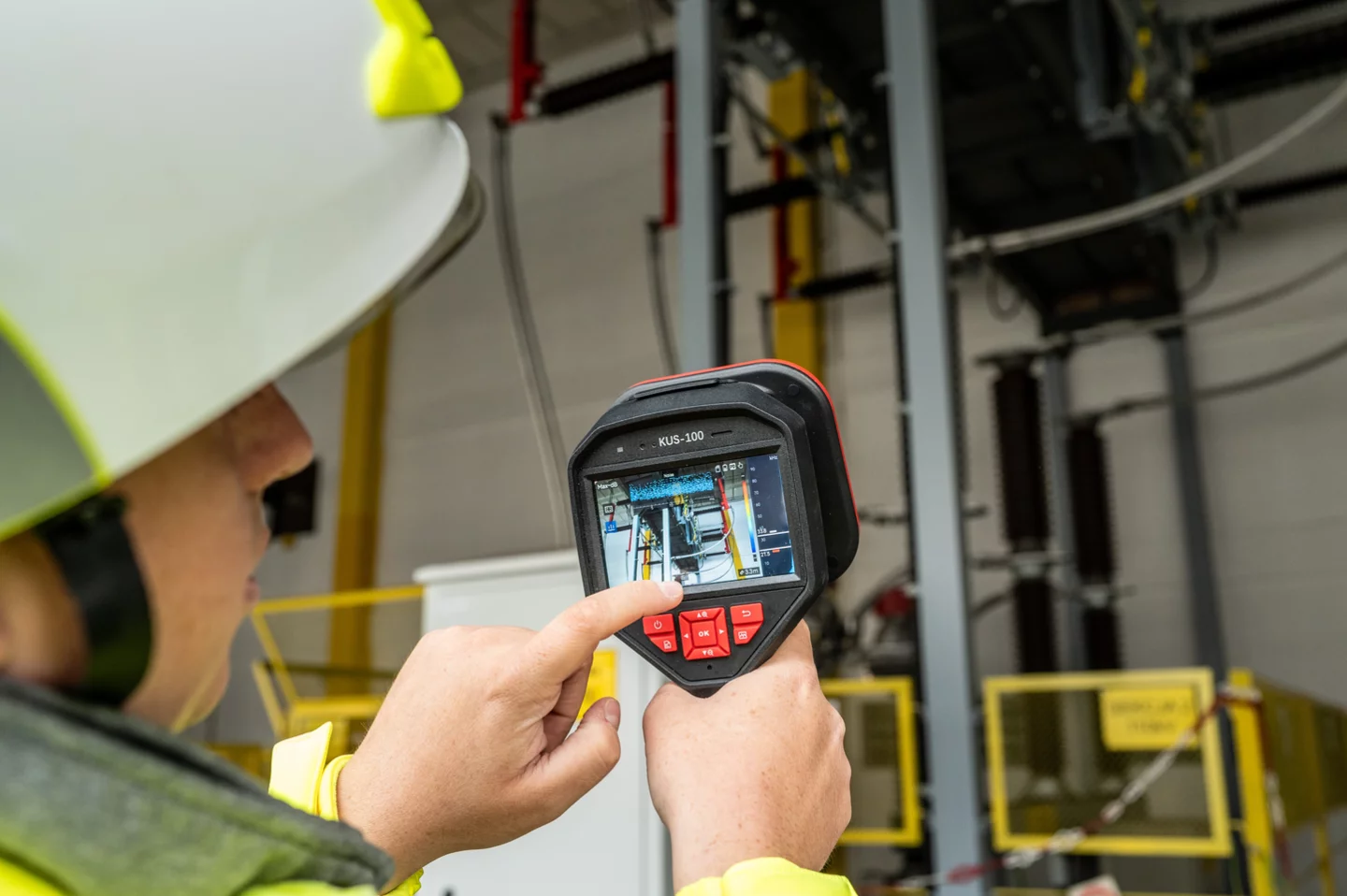

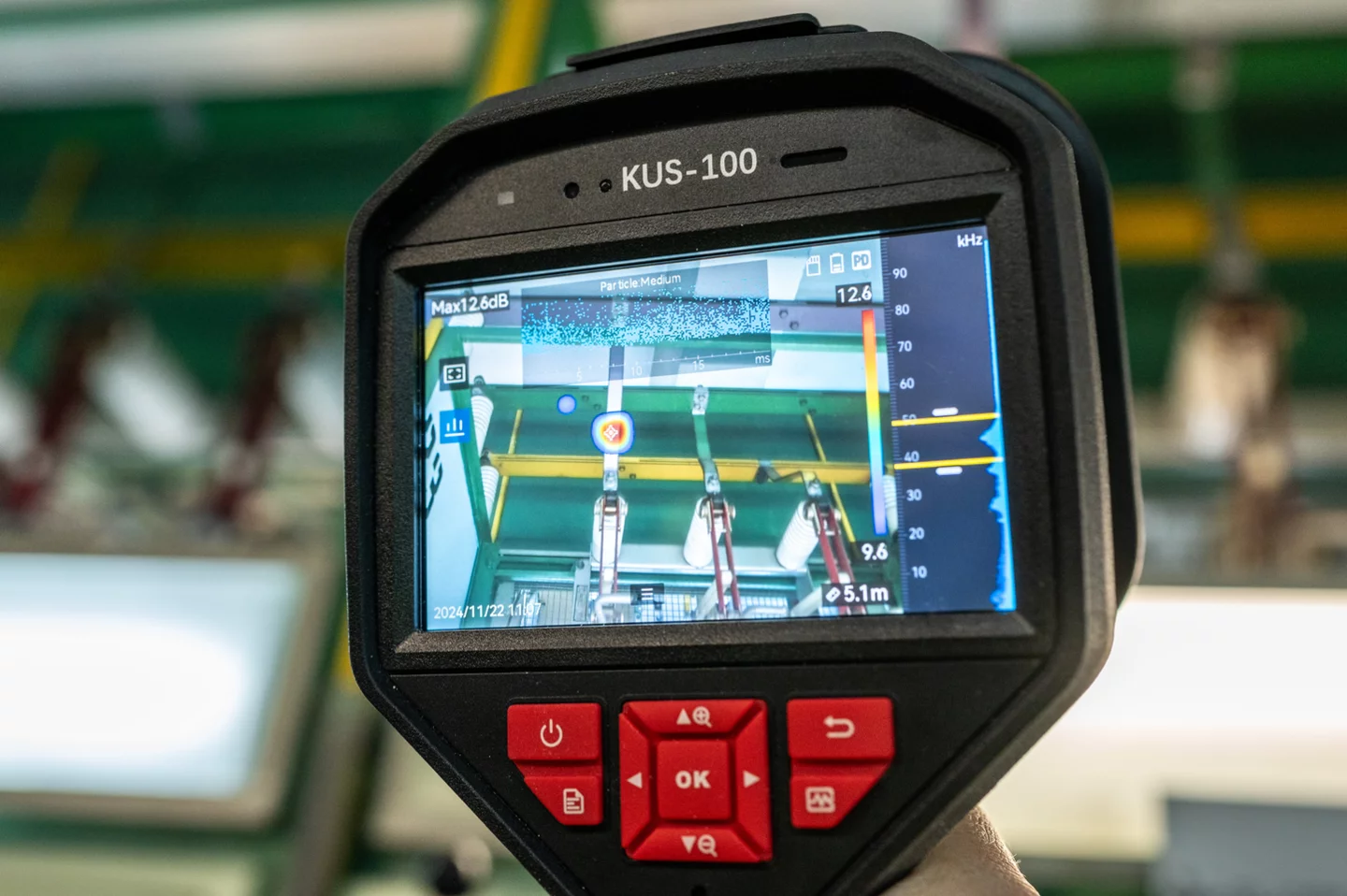

The imager operates in two detection modes: leakage and partial discharge. It has the ability to manually tune the detected frequencies and change the sensitivity level to avoid unwanted reflections and interference. Comfort of use is improved by a touch screen and a convenient strap mounted to the housing.
| Parameter | Value |
|---|---|
| Net weight (kg) | 1.3 |
| Package weight (kg) | 6.7 |

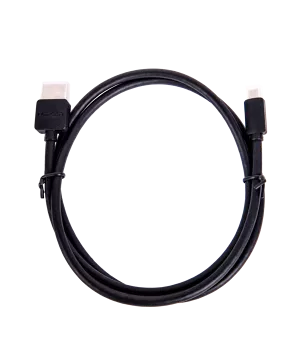

Accessories included with the meter
